Parking Brake Warning Switch: Testing and Inspection

Parking Brake Switch Test

NOTE: If both the ABS indicator and the brake system indicator come on at the same time, check the ABS or VSA system for DTC's first: ABS How To Troubleshoot The ABS (Without VSA), VSA How To Troubleshoot The VSA System.

1. Remove the center console Center Console Removal/Installation.

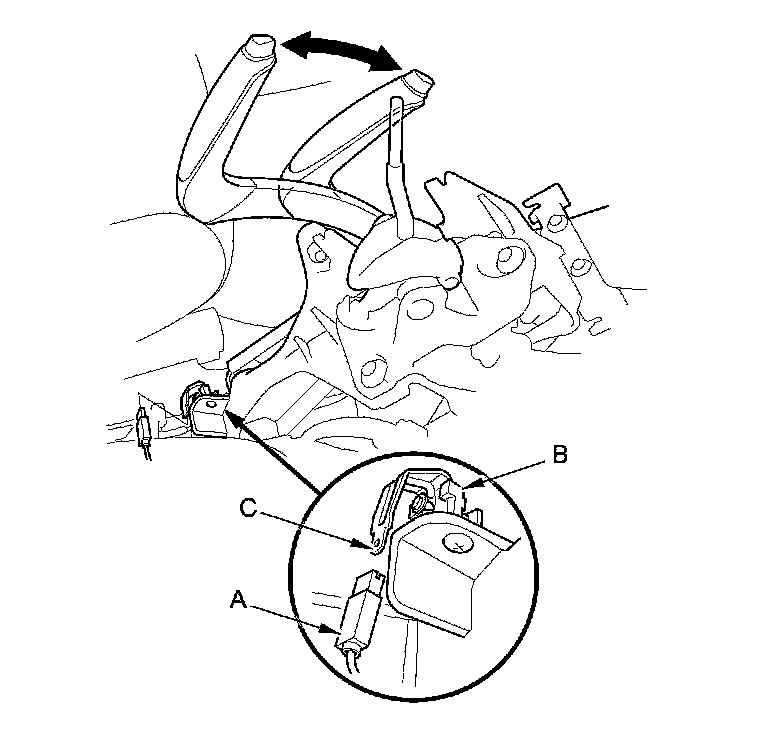

2. Disconnect the parking brake switch connector (A) from the parking brake switch (B).





3. Check for continuity between the switch terminal (C) and body ground.

- With the parking brake lever pulled, there should be continuity.
- With the parking brake lever released, there should be no continuity.

NOTE: If the parking brake switch and the brake fluid level switch are OK, but the brake system indicator does not function, do the gauge control module self-diagnostic function Initial Inspection and Diagnostic Overview.

4. Reconnect the parking brake switch connector.

5. Reinstall the center console Center Console Removal/Installation.
