Sunroof / Moonroof Switch: Testing and Inspection

Moonroof Switch Test/Replacement

'08-11 models

1. Remove the front individual map lights Front Individual Map Light Test/Replacement (With Moonroof).

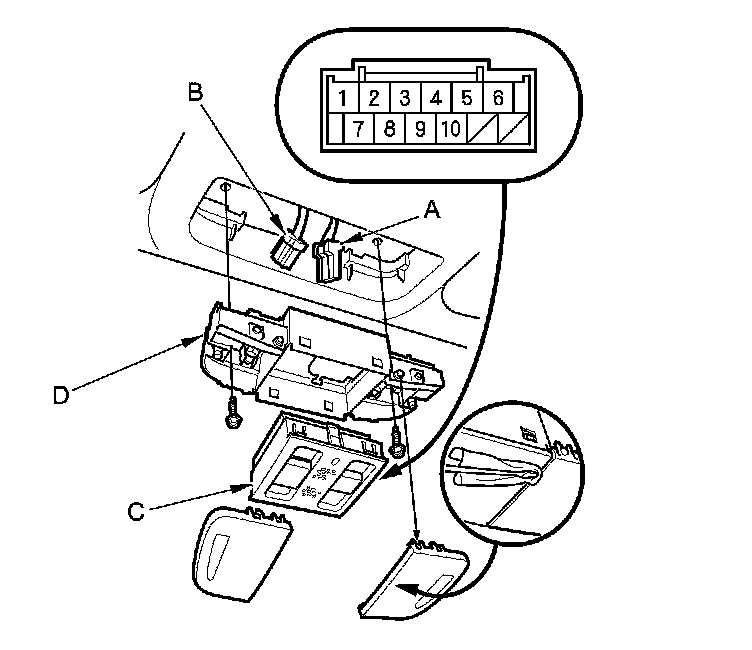

2. Disconnect the moonroof switch 12P connector (A) and map light switch 3P connector (B).





3. Remove the moonroof switch (C) from the map light housing (D).

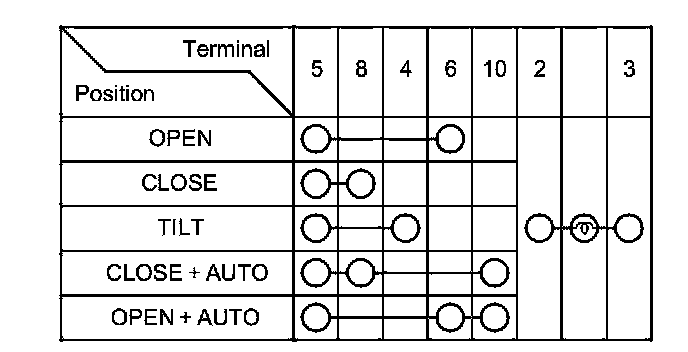

4. Check for continuity between the terminals in each switch position according to the table.





5. If the continuity check is not as specified, replace the illumination bulb or switch.

6. Install the switch and light in the reverse order of removal.
