Power Mirror Switch Test/Replacement (2-Door)

Power Mirror Switch Test/Replacement

2-door

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

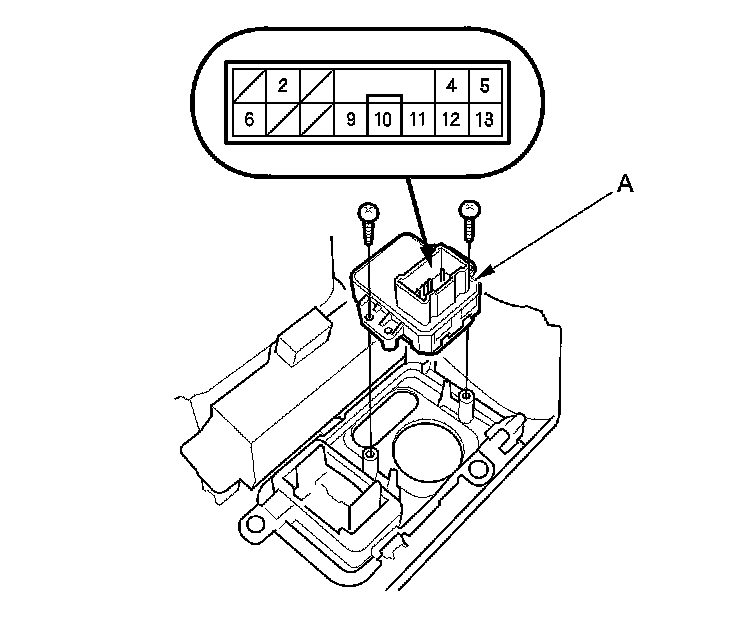

2. Disconnect the 13P connector from the power mirror switch (A).

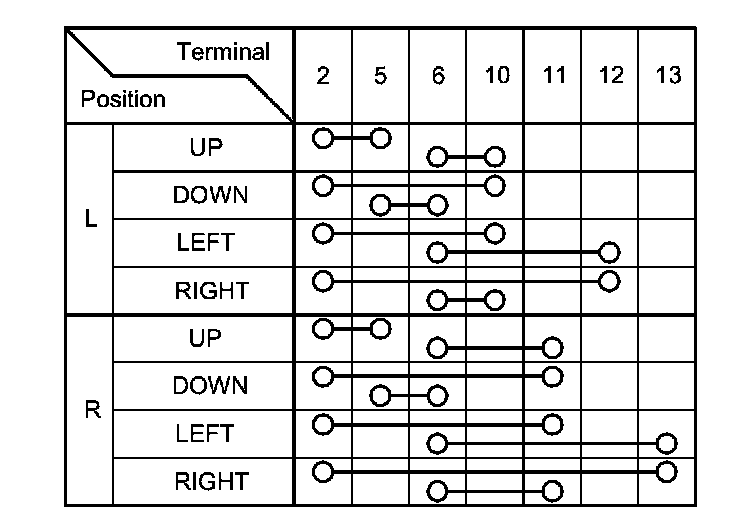

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, remove the screws and replace the switch.

5. Install the switch in the reverse order of removal.
