FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Honda
>>
2011
>>
Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Sensors and Switches - Restraints and Safety Systems
>>
Seat Occupant Sensor
>>
Diagrams
>>

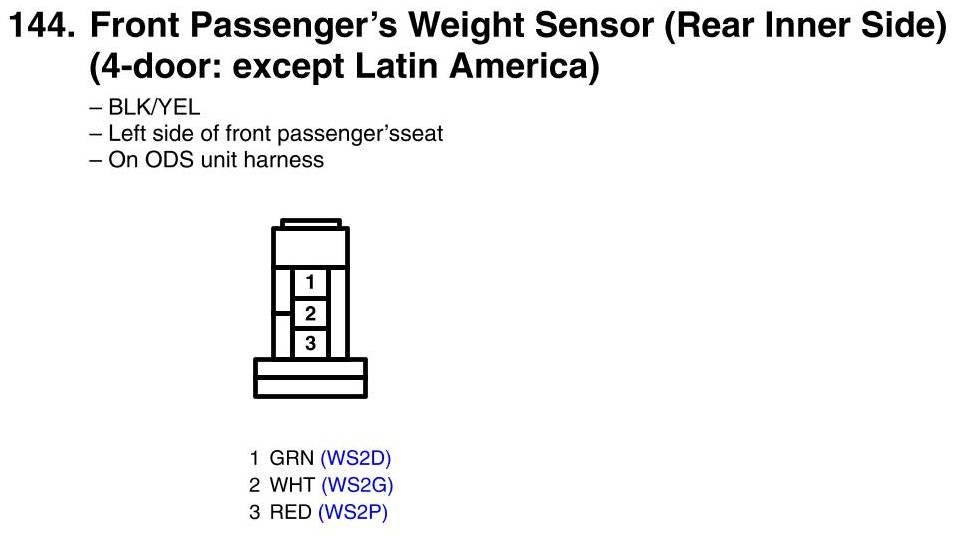

Front Passenger's (Rear Inner Side) Weight Sensor Connector View (4-door: except Latin America)
Front Passenger's (Rear Inner Side) Weight Sensor Connector View (4-door: except Latin America)
