Power Window Control Module: Testing and Inspection

Resetting the Power Window Control Unit

With AUTO UP/AUTO DOWN Function

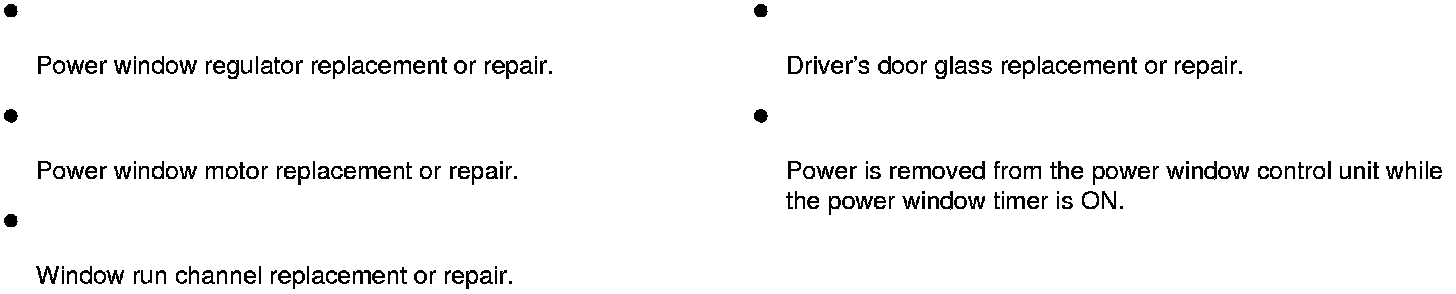

Resetting the driver's power window is required when any of the following have occurred:





1. Turn the ignition switch to ON (II).

2. Move the driver's window all the way down by using the driver's window DOWN switch.

3. Open the driver's door.

NOTE: Steps 4-7 must be done within 5 seconds of each other.

4. Turn the ignition switch to LOCK (0).

5. Push and hold the driver's window DOWN switch.

6. Turn the ignition switch to ON (II).

7. Release the driver's window DOWN switch.

8. Repeat step 4-7 three more times.

9. Wait for at least 1 second.

10. Confirm that AUTO UP and AUTO DOWN functions still work. If they do, the auto function has not been cleared; go back to step 1. If they do not, go to step 11.

11. Move the driver's window all the way down by using the driver's window DOWN switch.

12. Pull up and hold the driver's window UP switch until the window reaches the fully closed position, then continue to hold the switch for at least 1 second.

13. Confirm that the power window control unit is reset by using the driver's window AUTO UP and AUTO DOWN functions. If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 second time limit between steps. If it still does not work, refer to the master switch input test:

- 4-door Power Window Master Switch Input Test (4-door)
- 2-door Power Window Master Switch Input Test (2-Door)
