ECM/PCM Update




ECM Update

Special Tools Required

- Honda Diagnostic System (HDS) tablet tester
- Honda Interface Module (HIM) and an iN workstation with the latest HDS software version
- HDS pocket tester
- GNA600 and an iN workstation with the latest HDS software version
- MVCI unit with the latest control module (CM) update software installed
Any one of the above updating tools can be used.

NOTE:

- Make sure the HDS/iN workstation or the MVCI has the latest HDS software version.
- Before you update the ECM, make sure the battery in the vehicle is fully changed, and connect a jumper battery (not a battery charger) to maintain system voltage.
- Never turn the ignition switch to ACC (I) or LOCK (0) during the update. If there is a problem with the update, leave the ignition switch in ON (II).
- To prevent ECM damage, do not operate anything electrical (headlights, audio system, brakes, A/C, power windows, moonroof (if equipped), door locks, etc.) during the update.
- To ensure the latest program is installed, do an ECM update whenever the ECM is substituted or replaced.
- You cannot update an ECM with a program it already has. It will only accept a new program.
- High temperature in the engine compartment might cause the ECM to become too hot to run the update. If the engine was running before this procedure, open the hood, and cool the engine compartment.
- If you need to diagnose the Honda interface module (HIM) because the HIM's red (�V�3) light came on or was flashing during the update, leave the ignition switch in ON (II) when you disconnect the HIM from the data link connector (DLC). This will prevent ECM damage.

1. Turn the ignition switch to ON (II), but do not start the engine.

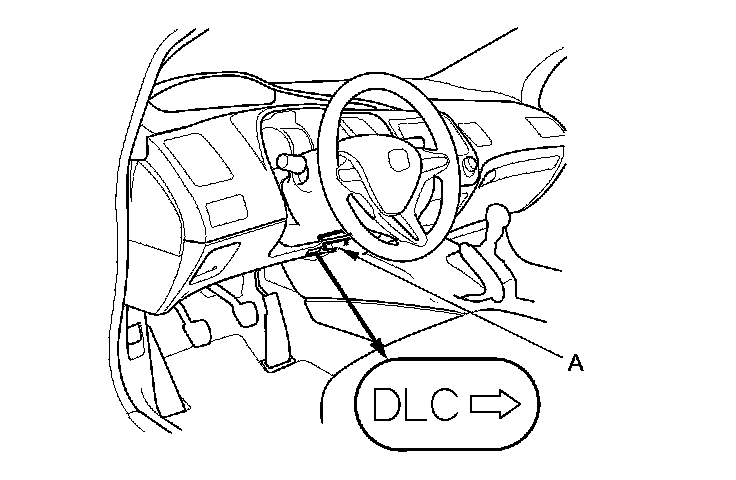

2. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.





3. Make sure the HDS communicates with the ECM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting Testing and Inspection. If you are returning from the DLC circuit troubleshooting, skip steps 4 to 5 and clean the throttle body after updating the ECM Procedures.

4. Select the INSPECTION MENU with the HDS.

5. Select the ETCS TEST, then select the TP POSITION CHECK, and follow the HDS screen prompts.

NOTE: If the TP POSITION CHECK indicates FAILED, continue this procedure.

6. Exit the HDS diagnostic system select the update mode, and follow the screen prompts to update the ECM.

7. If the software in the ECM is the latest, disconnect the updating tool from the DLC, and go back to the procedure that you were doing. If the software in the ECM is not the latest, follow the instructions on the screen.

NOTE: If the ECM update system requires you to cool the ECM, follow the instructions on screen. If you run into a problem during the update procedure (programming takes over 15 minutes, status bar goes over 100 %, immobilizer indicator flashes, HDS tablet freezes, etc.), follow these steps to minimize the chance of damaging the ECM:

- Leave the ignition switch in ON (II).
- Connect a jumper battery (do not connect a battery charger).
- Shut down the updating tool.
- Disconnect the updating tool from the DLC.
- Reboot the updating tool.
- Reconnect the updating tool to the DLC, and do the update again.

8. If the TP POSITION CHECK failed in step 5, clean the throttle body Procedures.

9. Do the ECM idle learn procedure ECM/PCM Idle Learn Procedure.

10. Do the CKP pattern clear/CKP pattern learn procedure.
