Gauge Control Module (Tach) Input Test

Gauge Control Module (Tach) Input Test

NOTE: Before testing, do the gauge control module self-diagnostic function Initial Inspection and Diagnostic Overview, and make sure the B-CAN communication line and the UART line are OK.

1. Turn the ignition switch to LOCK (0).

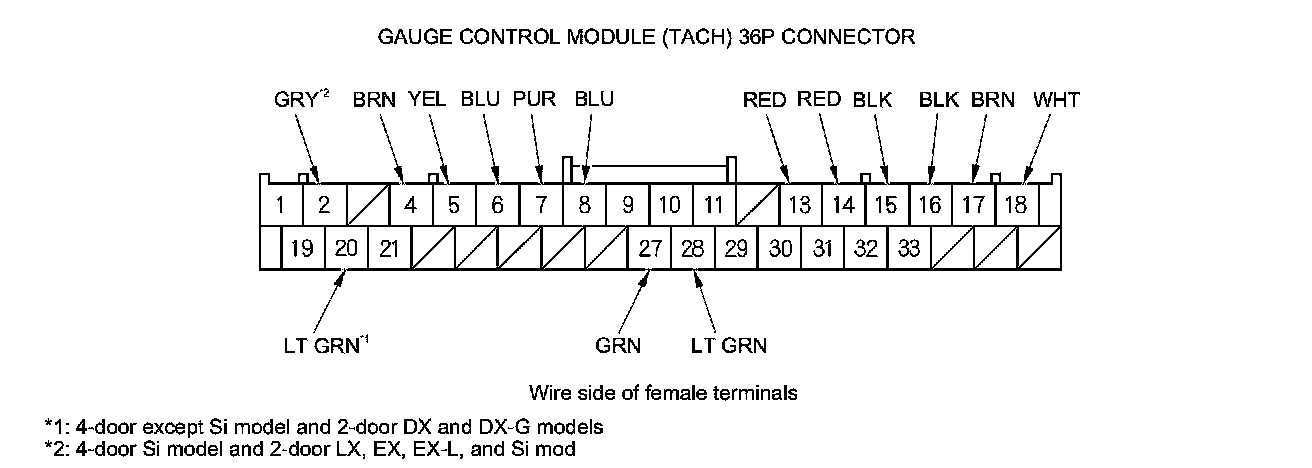

2. Remove the gauge control module (tach) and disconnect the 36P connector from it.





3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.

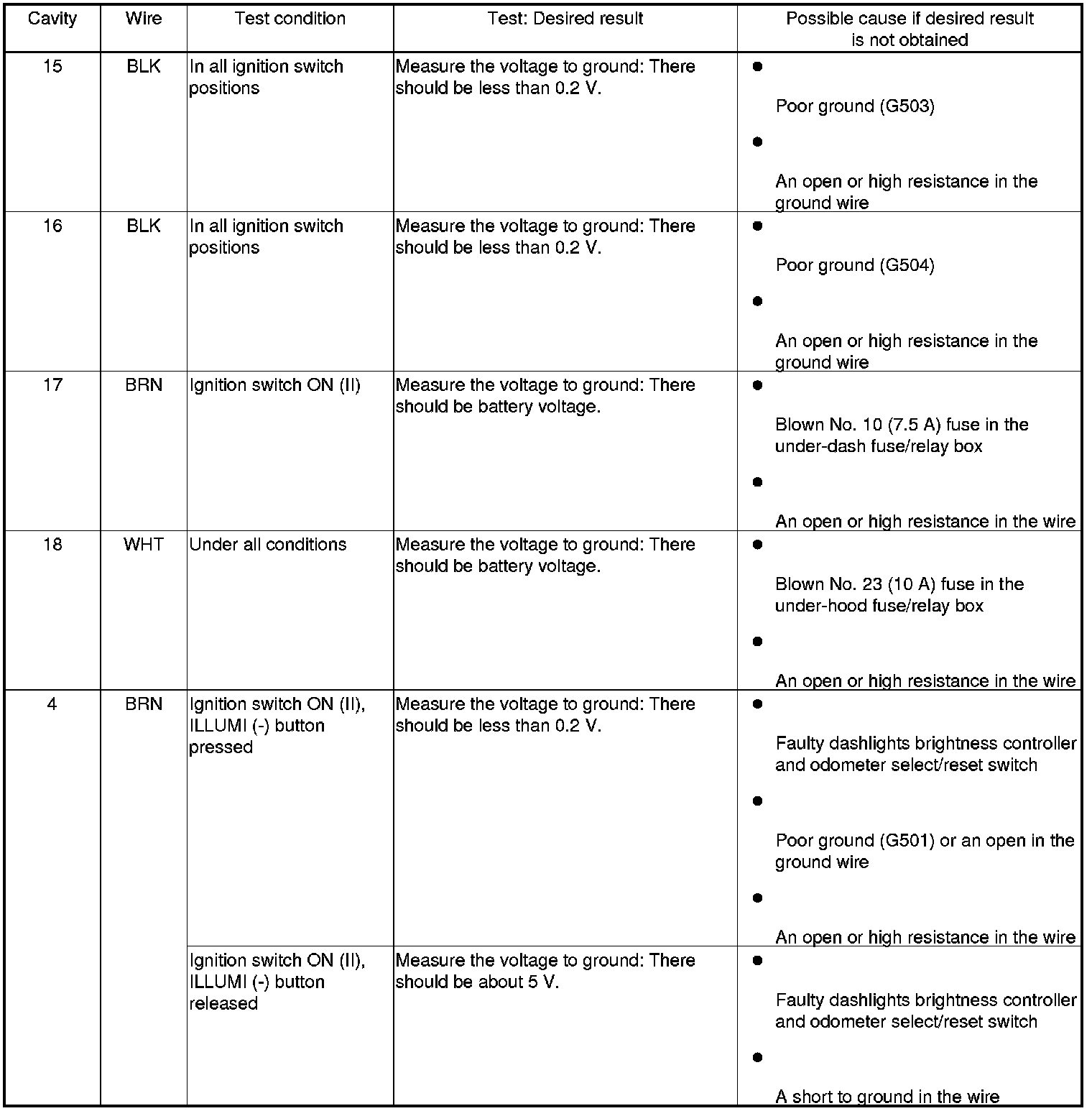

4. With the connector still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

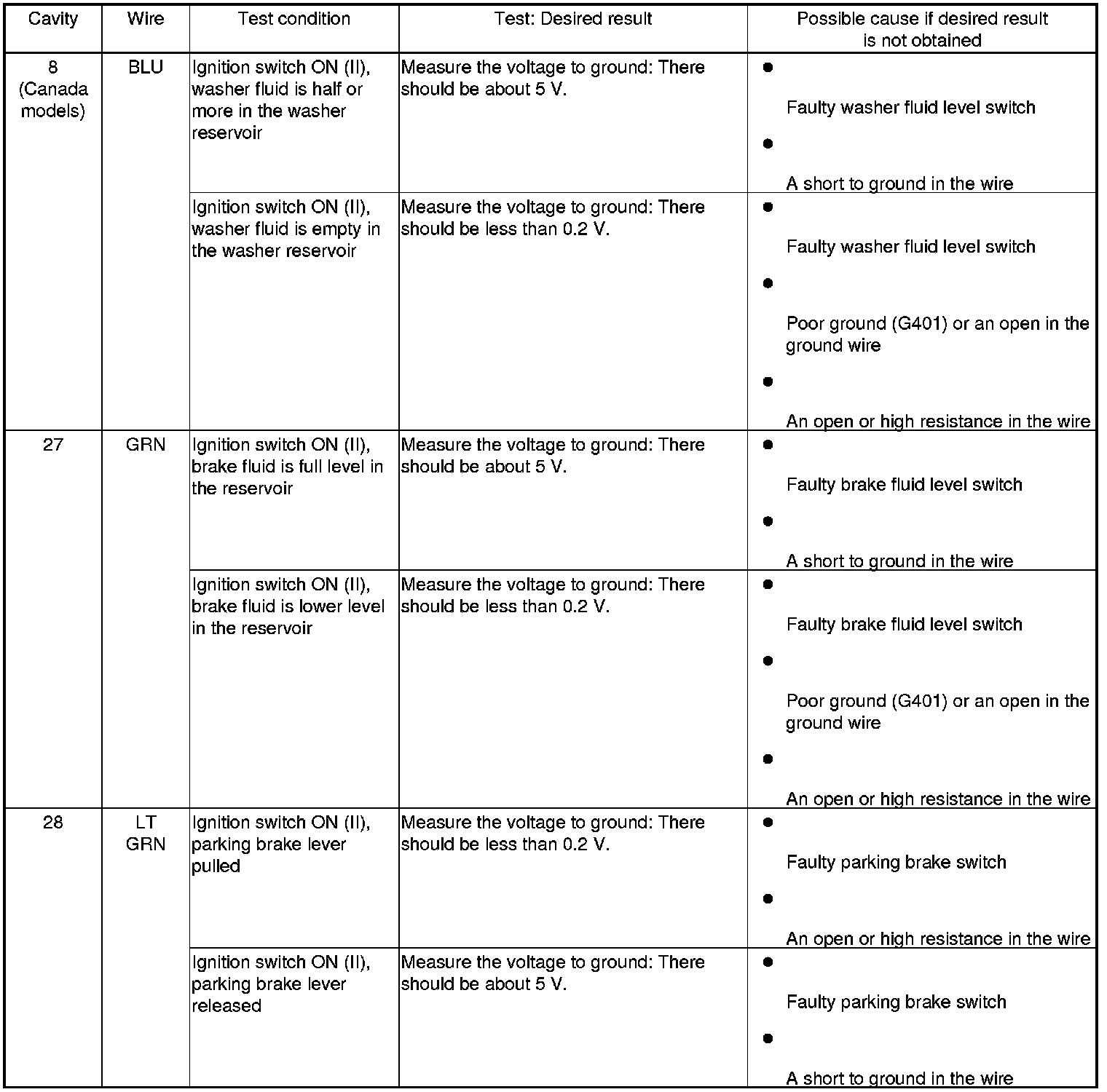

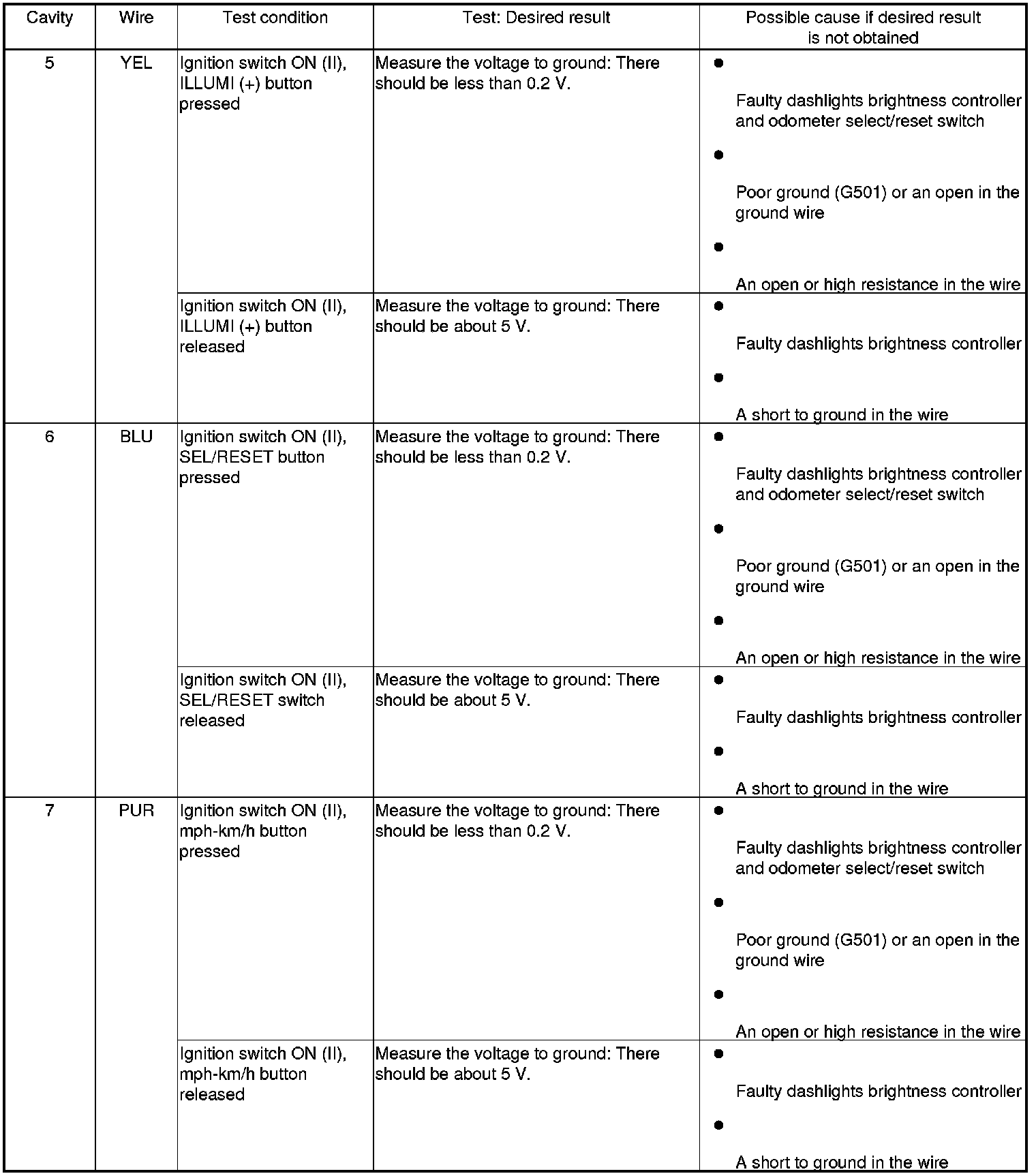

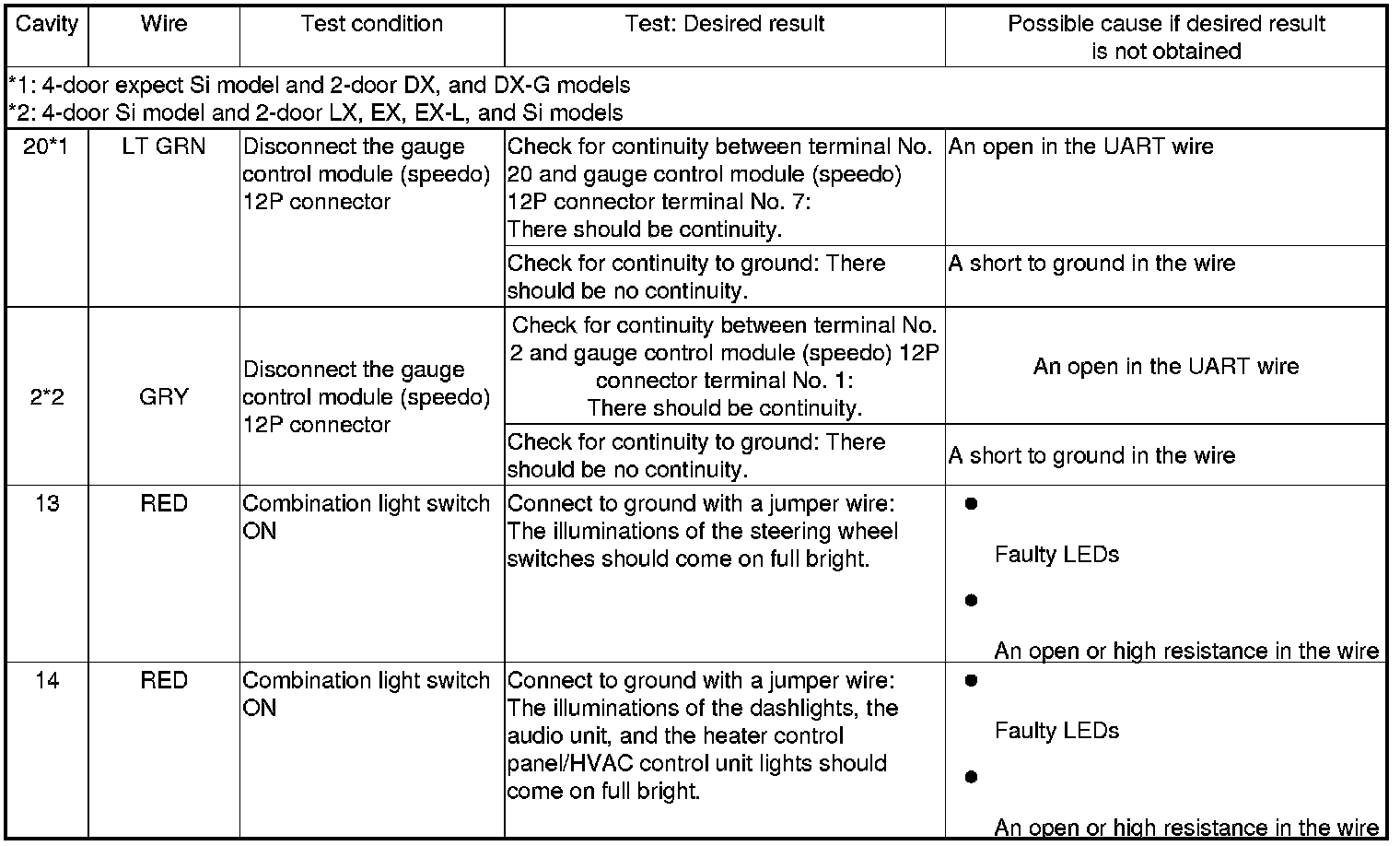

5. Reconnect the connector to the gauge control module (tach), and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the gauge control module (tach) must be faulty; replace it.
