Resonator: Service and Repair

Intake Air Resonator Removal/Installation

1. Make sure you have the anti-theft code for the audio system and the navigation system (if equipped).

2. Remove the front bumper Front Bumper Removal/Installation.

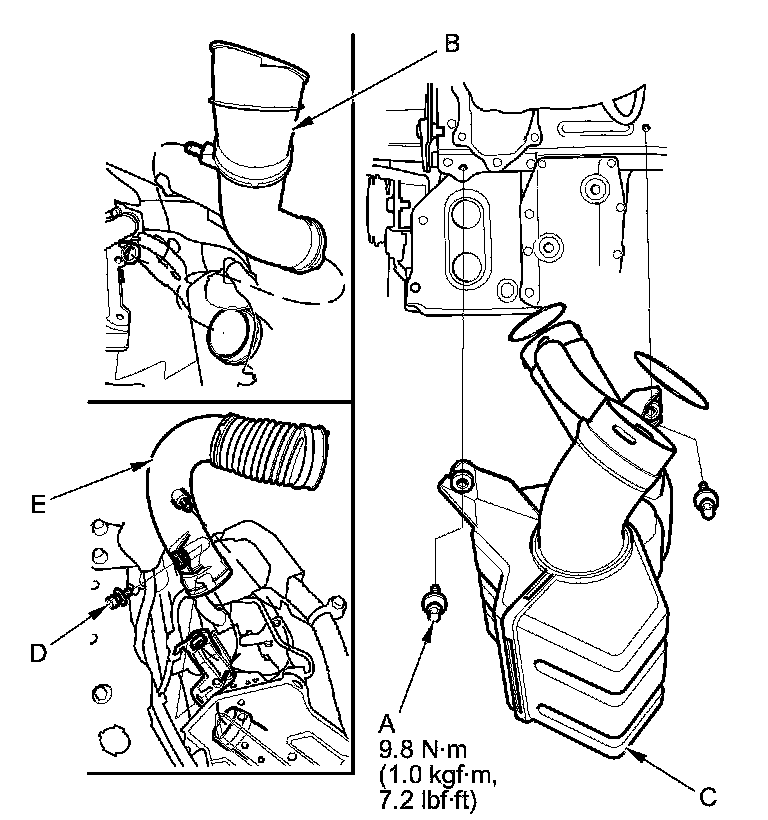

3. Remove the bolts (A), and pipe (B).





4. Remove the intake air resonator (C).

5. Do the battery removal procedure Removal and Replacement.

6. Remove the bolt (D), and duct (E).

7. Install the parts in the reverse order of removal.

8. Do the battery installation procedure Removal and Replacement.
