Fuse To Components Index




Fuse to Components Index

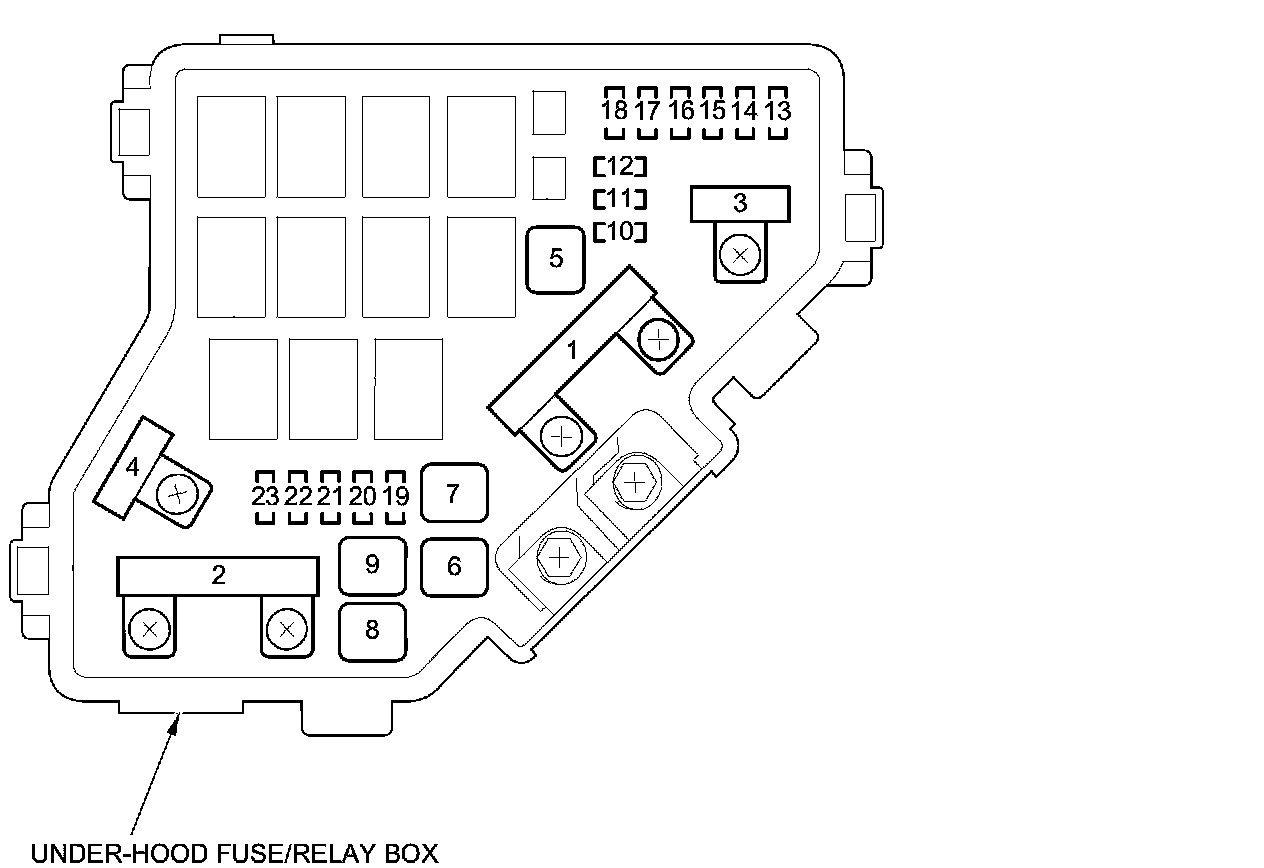

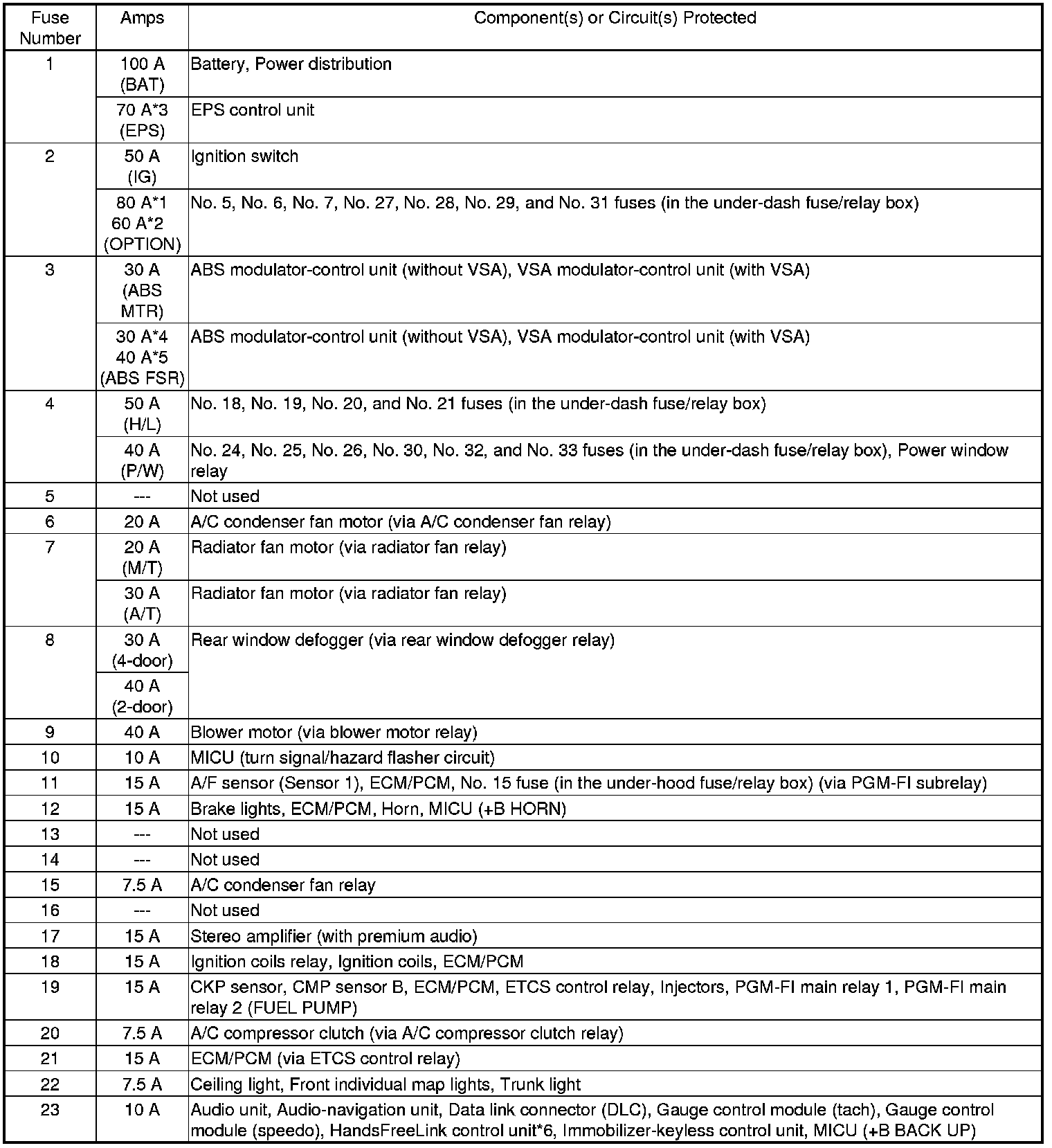

Under-Hood Fuse/Relay Box

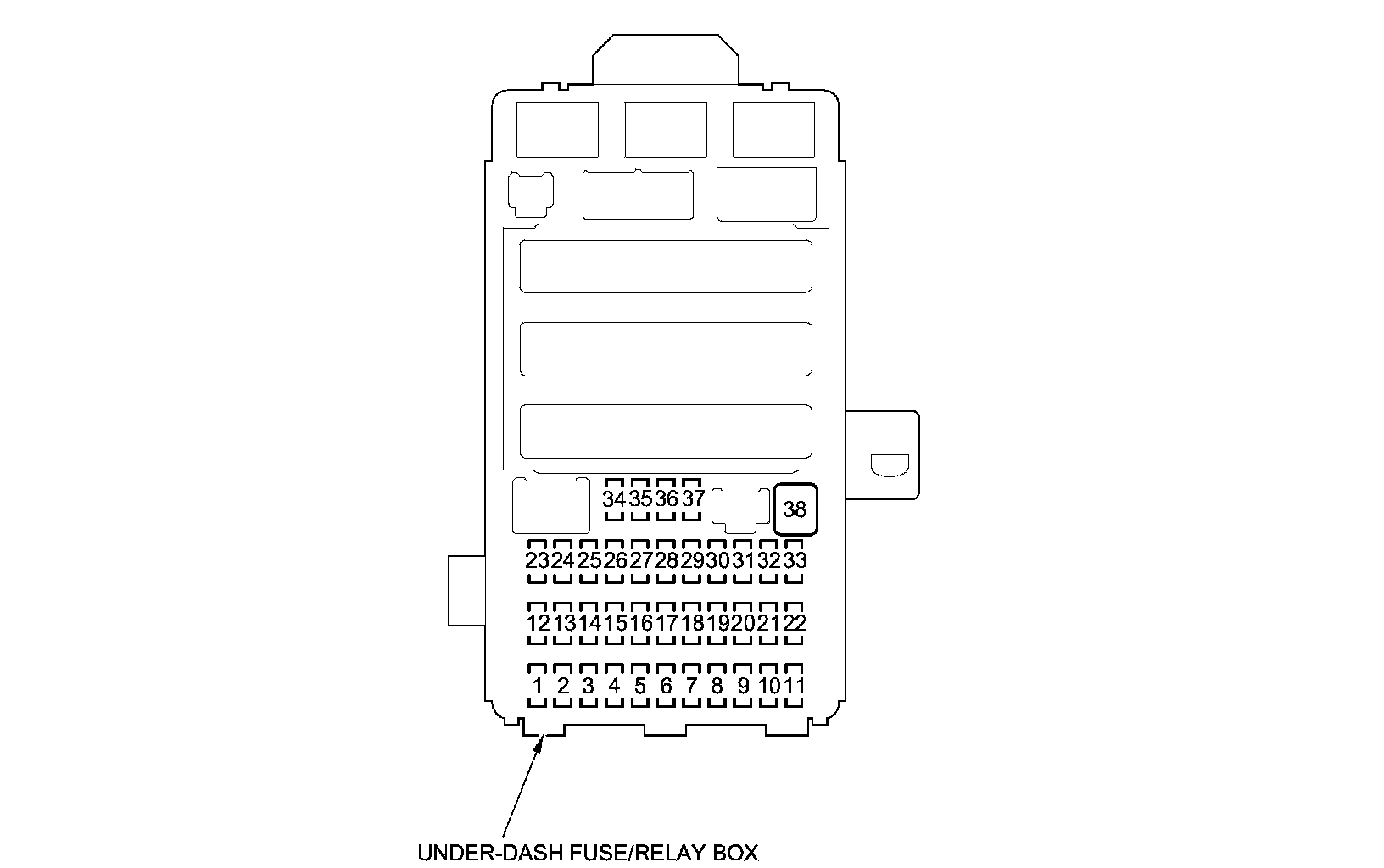

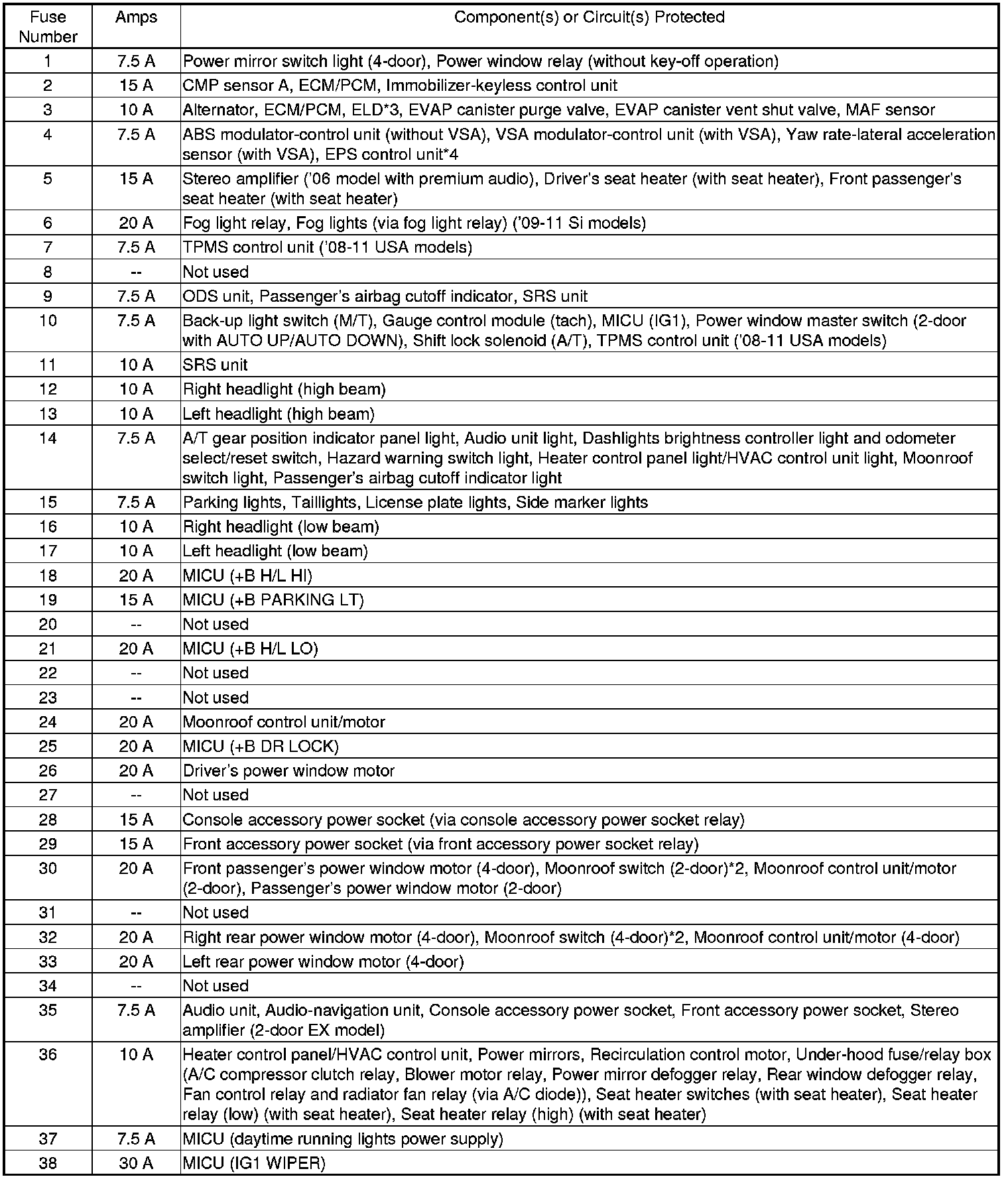

Under-Dash Fuse/Relay Box
