Exterior Lights (MICU) Input Test

Exterior Lights (MICU) Input Test

NOTE:

- The MICU turns on the headlights (high beams) in a dimming mode for the Daytime Running Lights under the following conditions:
- With the ignition switch turned to ON (II).
- The headlight switch OFF.
- The parking brake is released (parking brake switch OFF).
- The DRL indicator will come on when one of the headlight (high beams) bulbs is blown, or if the high beam wiring has an open circuit with the daytime running lights ON.
- For Canada models: If the vehicle is equipped with an optional remote control engine start system, the daytime running lights will not function when started with the remote start.
- Before testing the lighting system, troubleshoot the system using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.
- Before testing the lighting system, make sure the No. 12 (10 A), No. 13 (10 A), No. 15 (7.5 A), No. 16 (10 A), No. 17 (10 A),No. 18 (20 A), No. 19 (15 A), No. 21 (20 A), and No. 37 (7.5 A) fuses in the under-dash fuse/relay box are OK.

1. Turn the ignition switch to LOCK (0).

2. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

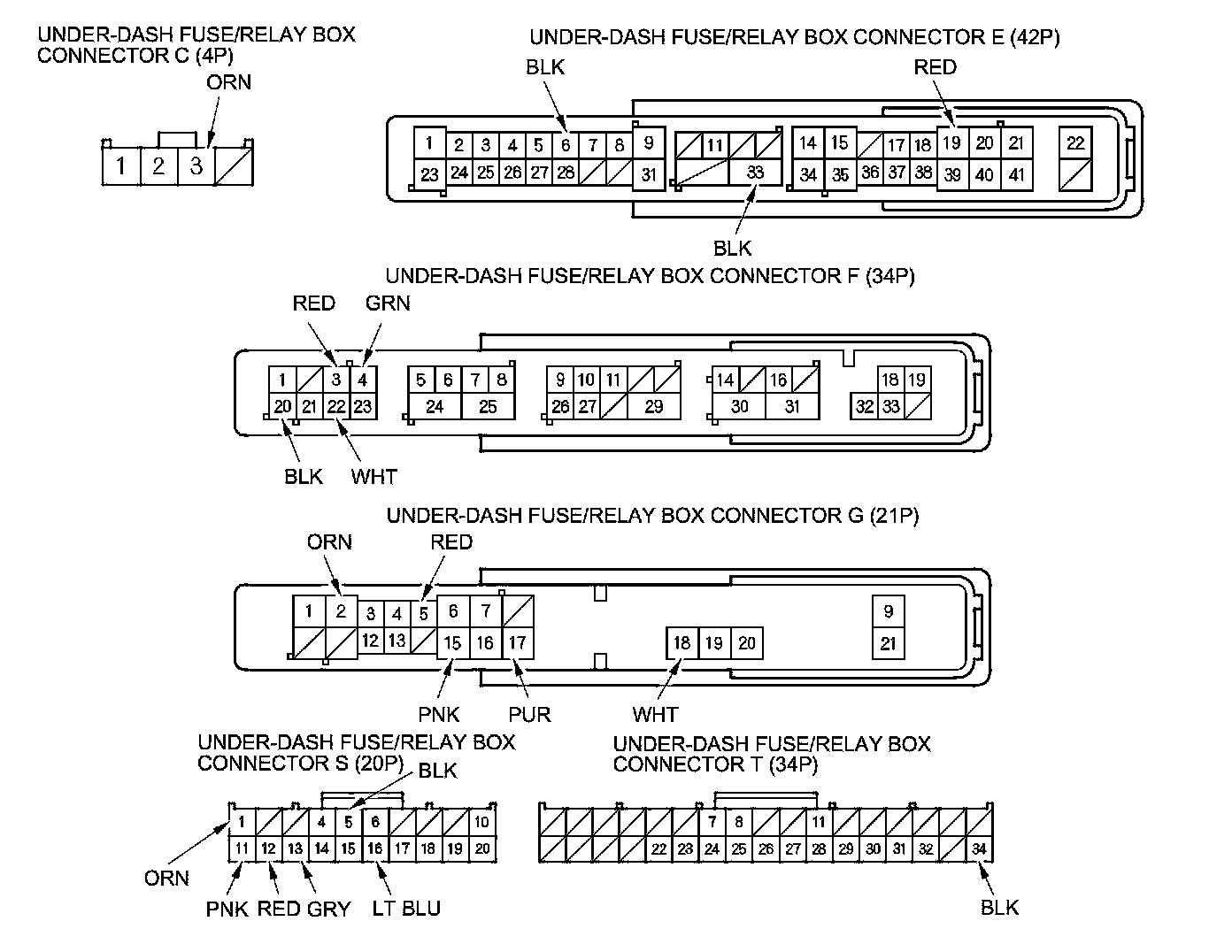

3. Disconnect under-dash fuse/relay box connectors E, F, G, S, and T.

NOTE: All connector views are shown from wire side of female terminals.






4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

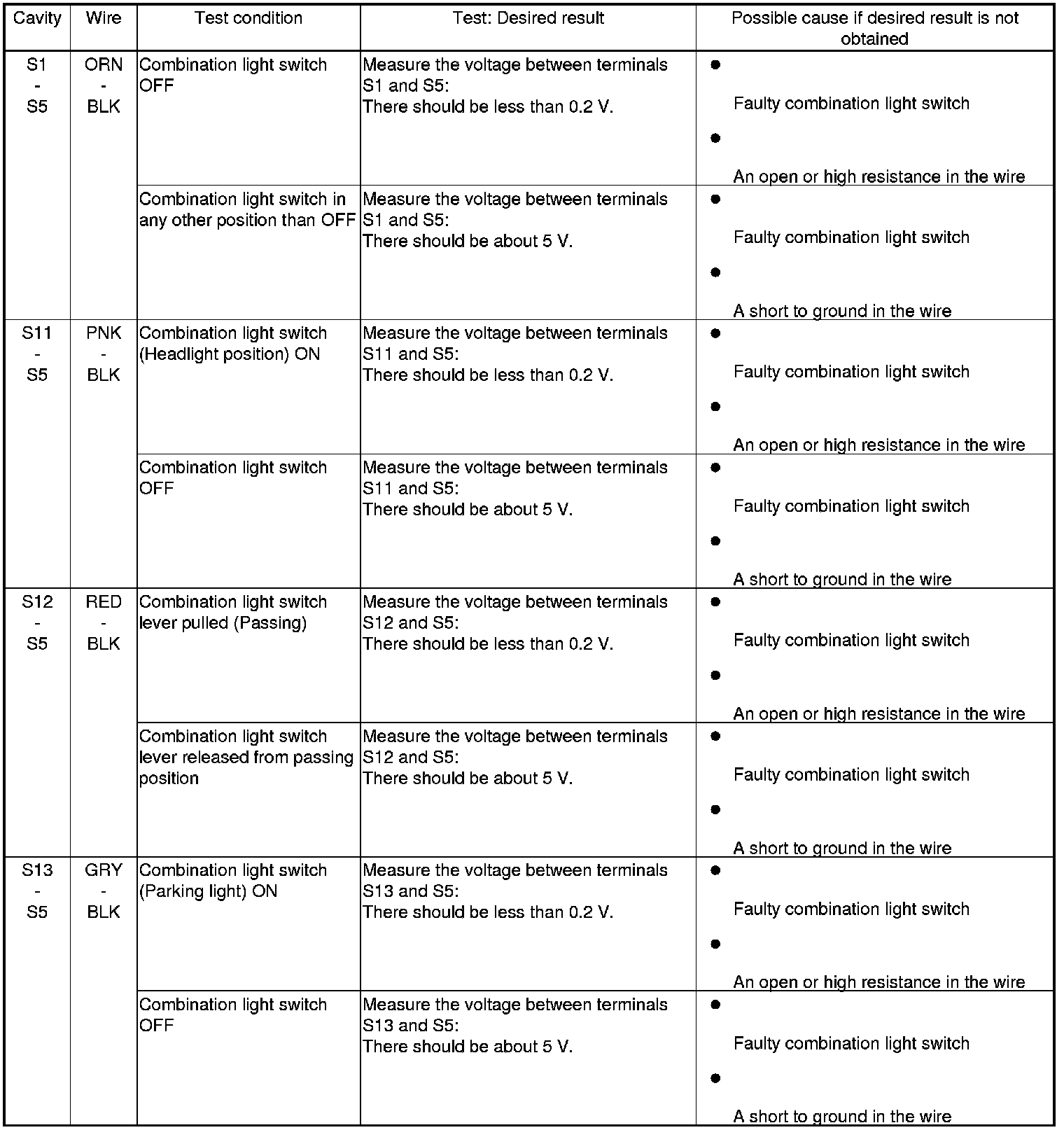

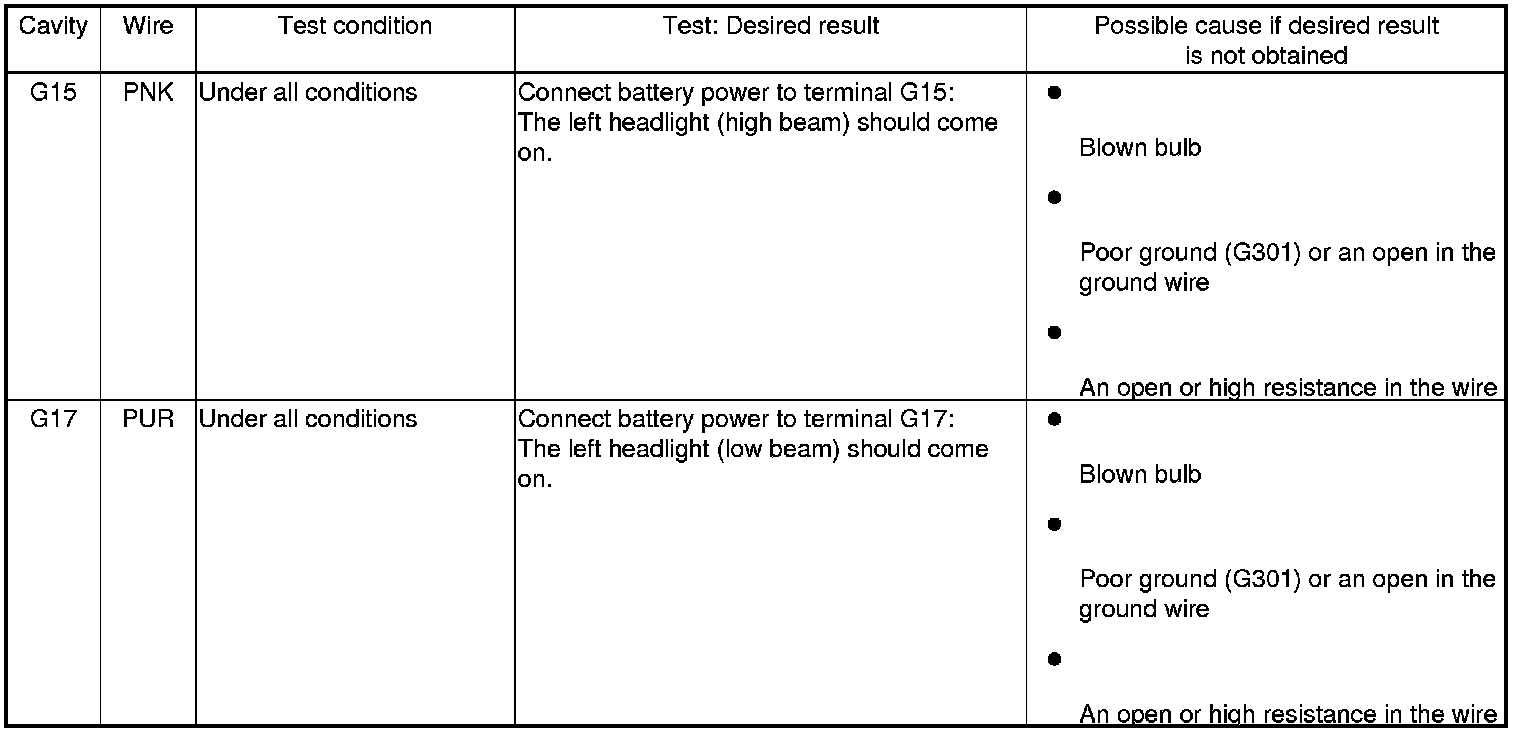

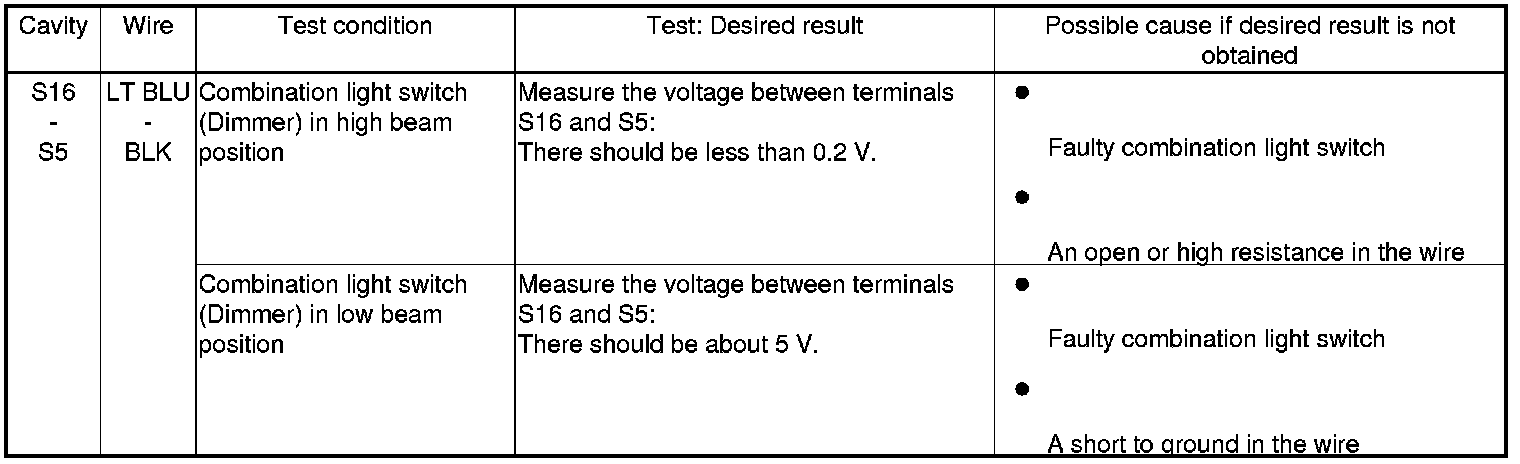

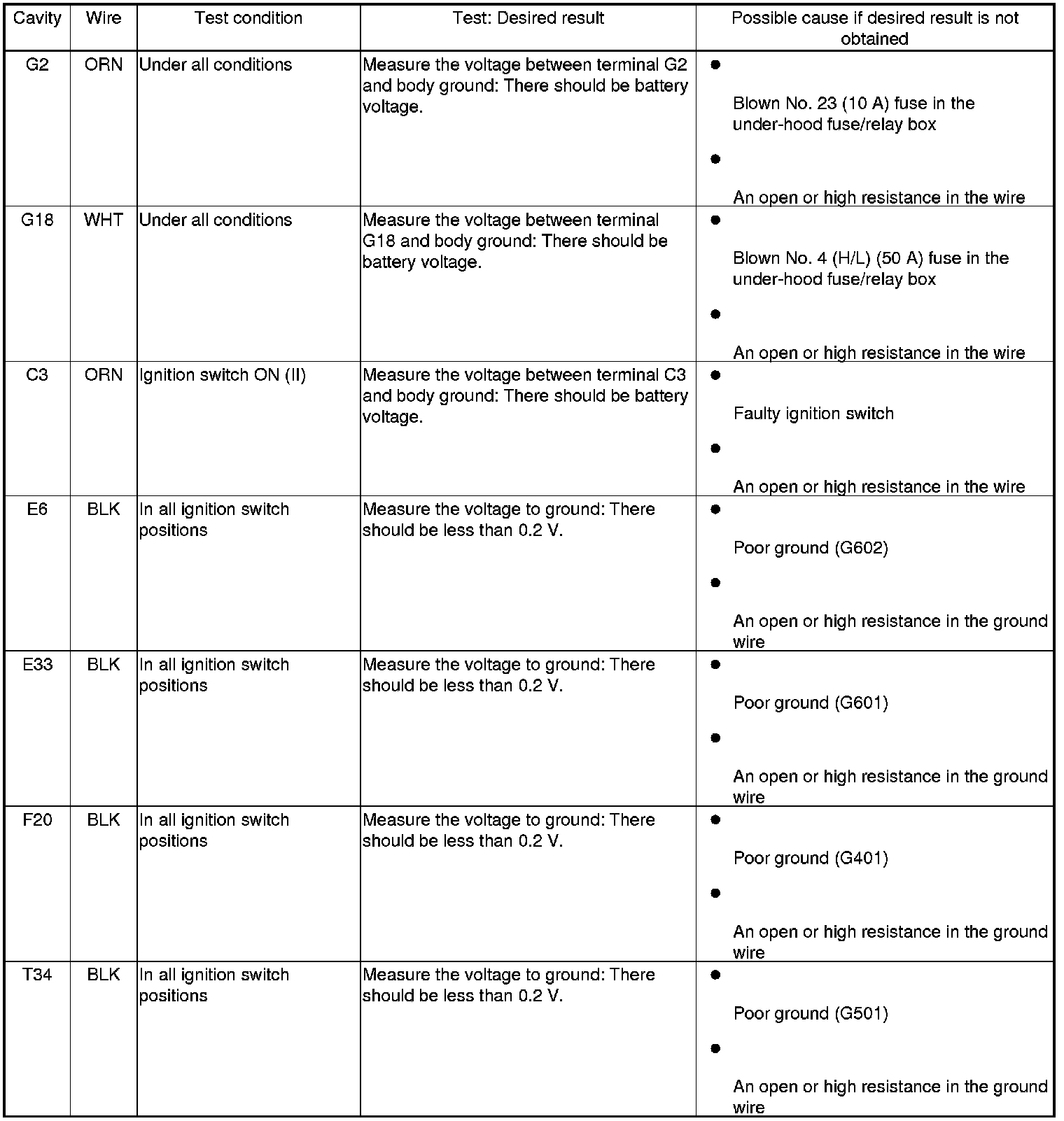

5. With the connector still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.









6. Reconnect the connectors to the under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal And Installation.
