Taillight Replacement (4-Door)

Taillight Replacement

4-door

1. Open the trunk lid.

2. Remove the rear bumper Service and Repair.

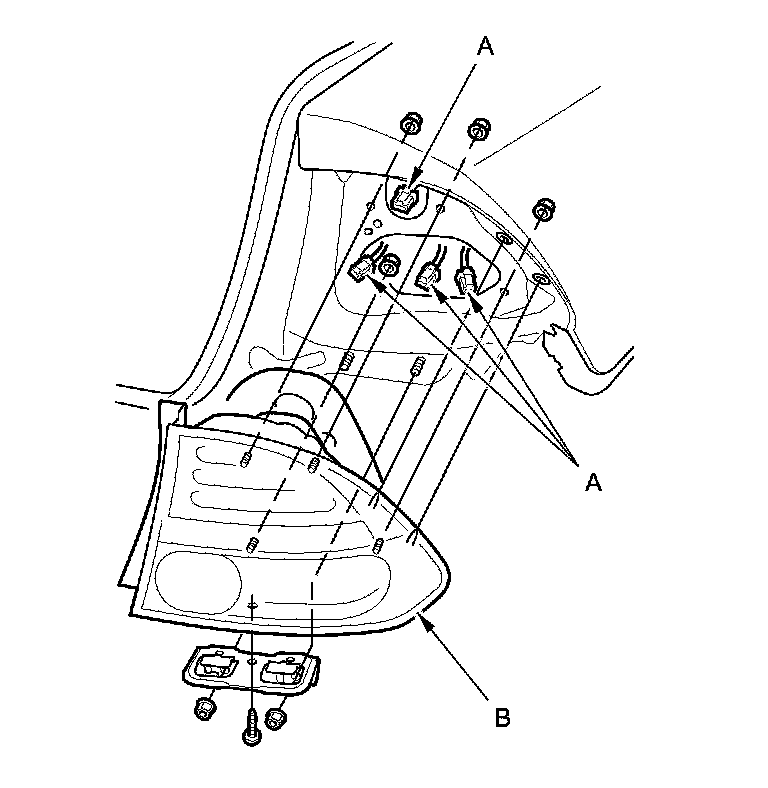

3. Disconnect the connectors (A) from the taillights (B).









4. Turn the bulb sockets 45 ° counterclockwise to remove the bulbs.

5. Remove the nuts and screws, then remove the taillight.

6. Install the taillight in the reverse order of removal.
