Taillight Replacement (2-Door)

Taillight Replacement

2-door

1. Remove the rear bumper Service and Repair.

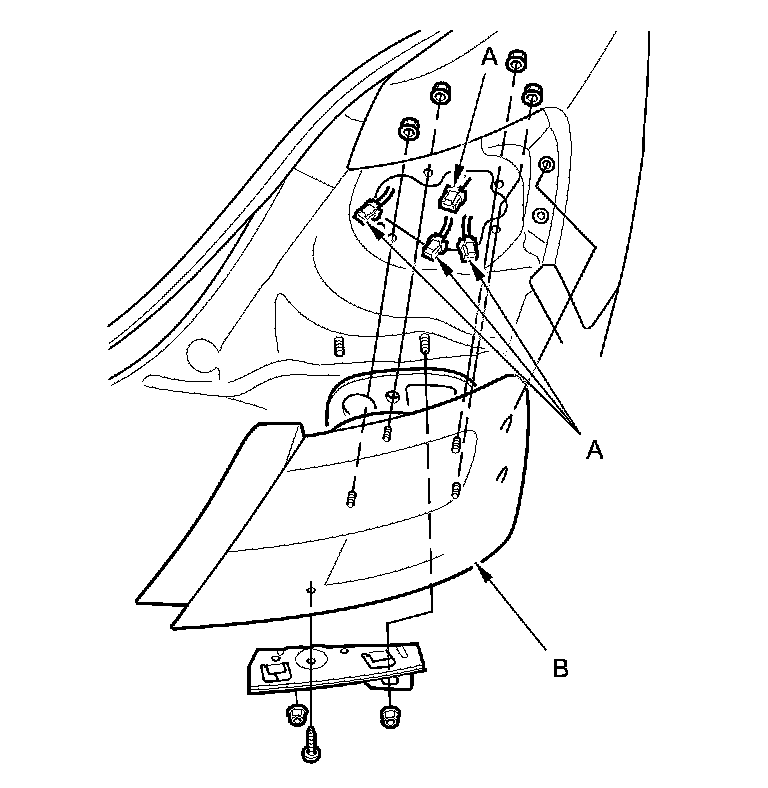

2. Disconnect the connectors (A) from the taillights (B).









3. Turn the bulb sockets 45 ° counterclockwise to remove the bulbs.

4. Remove the nuts and screws, then remove the taillight.

5. Install the taillight in the reverse order of removal.
