Headlamp: Service and Repair

Headlight Replacement

1. Remove the front bumper Front Bumper Removal/Installation.

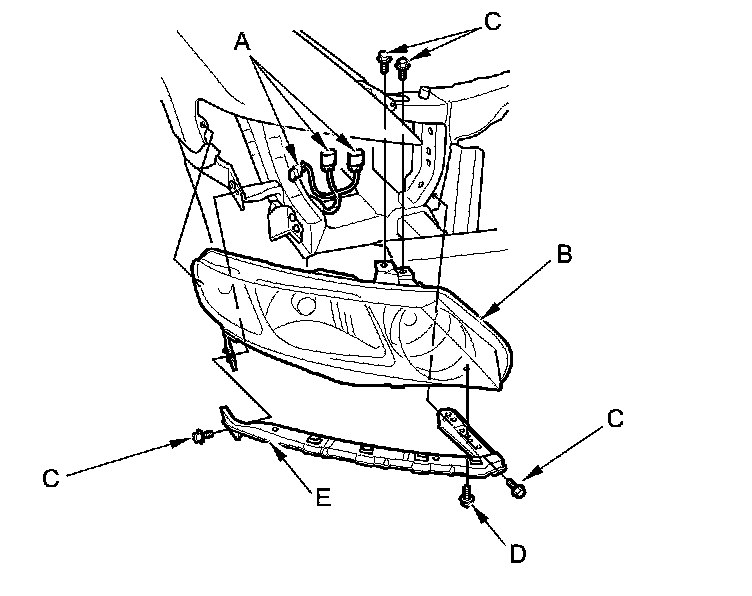

2. Remove the connectors (A) from the headlight assembly (B).

NOTE: The illustration shows the 4-door, the 2-door is similar.





3. Remove the four bolts (C), then remove the headlight.

NOTE: Be careful not to scratch the headlight lens and the fender.

4. Remove the bolt (D) and the corner upper beam (E) from the headlight.

5. Install the headlight in the reverse order of removal.

6. After replacement, adjust the headlight Adjustments.
