Fog Light Replacement (4-Door, Si Model)

Fog Light Replacement

4-door

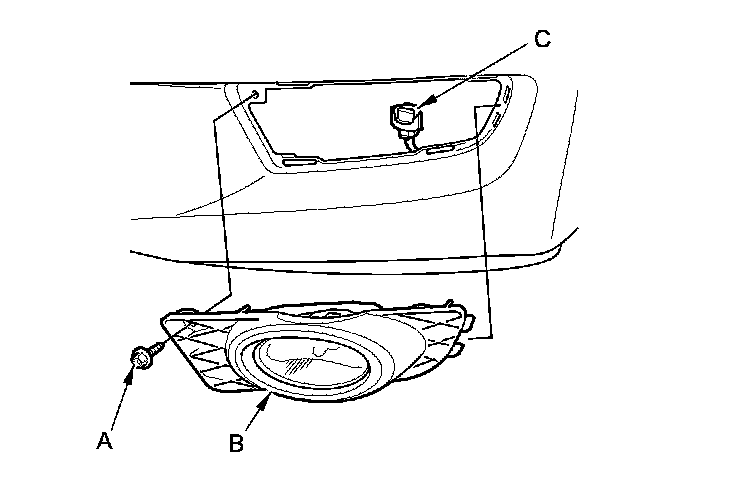

1. Remove the mounting screw (A) from the fog light (B).





2. Remove the fog light from the front bumper.

3. Disconnect the 2P connector (C) from the fog light.

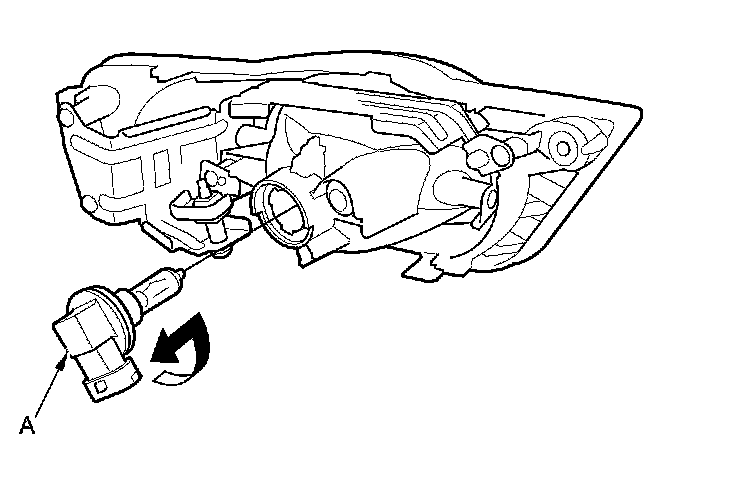

4. Turn the bulb socket (A) 60 ° counterclockwise to remove it from the housing.









5. Install the fog light in the reverse order of removal.

6. After replacement, adjust the fog lights Adjustments.
