Courtesy Lamp: Service and Repair

Ambient Light Replacement

2-door with moonroof

NOTE: The ambient light is built into the moonroof switch.

1. Remove the front individual map lights Front Individual Map Light Test/Replacement (With Moonroof).

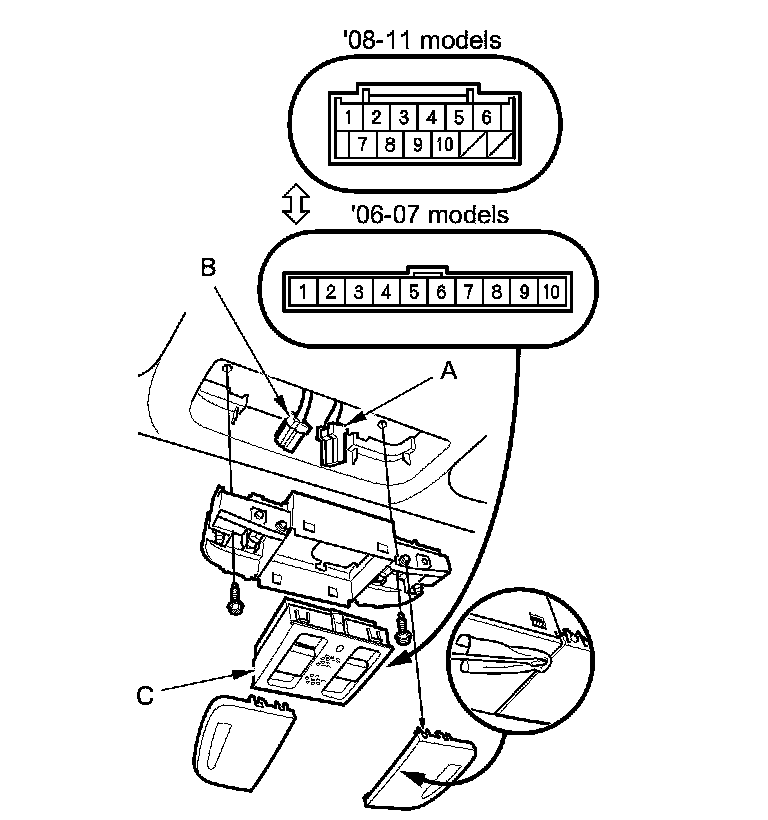

2. Disconnect the moonroof switch 10P [12P] connector (A) and map light 3P connector (B).









3. Remove the moonroof switch (C).

4. Install the lights in the reverse order of removal.
