Programming and Relearning

Tire Pressure Sensor Location

Special Tools Required

- TPMS Trigger Tool ATEQ VT55
- TPMS Trigger Tool Bartec Wheelrite Tech 300-J-48714
Available through the Honda Tool and Equipment Program 888-424-6857
*For Canada: Available through DES-Canada 866-868-3372

NOTE:

- The TPMS tool is necessary to do this procedure.
- Let the vehicle sit for at least 5 minutes to allow the tire pressure sensors to switch to sleep mode.
- This procedure locates where the tire pressure sensors 1, 2, 3, 4 are mounted, when activated by the TPMS tool.
- Position the vehicle at least 10 ft (3 m) away from other vehicles that have tire pressure sensors.

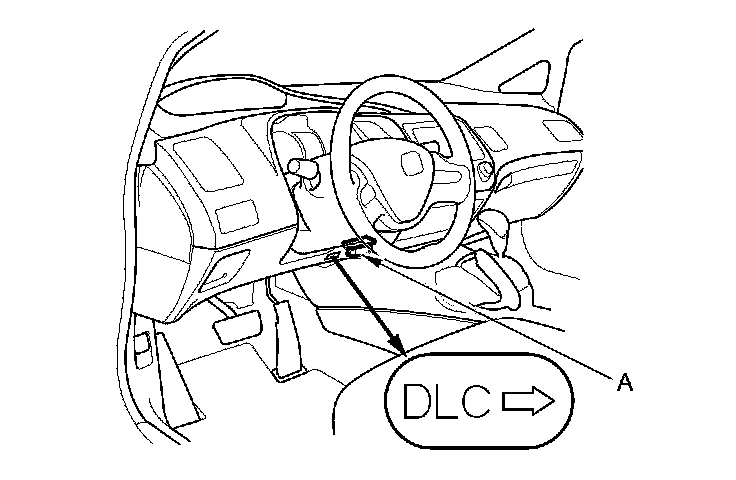

1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.





2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it does not, troubleshoot the DLC circuit: Except Si model Testing and Inspection, Si model Testing and Inspection.

4. Using the HDS, bring up the TPMS DATA LIST, scroll down to the bottom, and locate the four tire pressure sensors ID. These are the ID assigned to each tire location.

5. Follow the HDS screen prompts under tire pressure sensor ID learn, to turn on the TPMS tool.

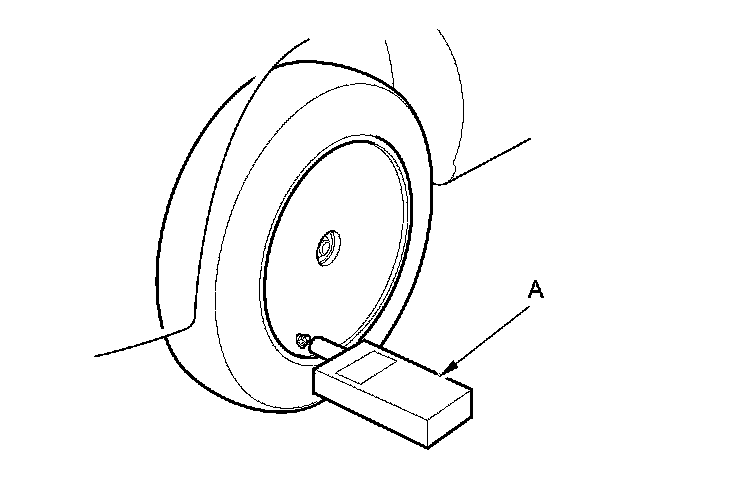

6. Hold the TPMS tool (A) near the valve stem of one wheel, and activate the tire pressure sensor by following the prompts on the HDS.





7. The TPMS tool will display the sensor data including the tire pressure sensor ID.

8. Locate the tire pressure sensor ID in the TPMS DATA LIST with the HDS, and match it to the sensor ID on the TPMS tool. Note the sensor location.

9. Turn the ignition switch to LOCK (0).
