Gauge Control Module Replacement

Gauge Control Module Replacement

Tachometer

NOTE: Before replacing the gauge control model, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Model" Programming and Relearning.

1. Remove the subdisplay visor Dashboard Subdisplay Visor Removal/Installation.

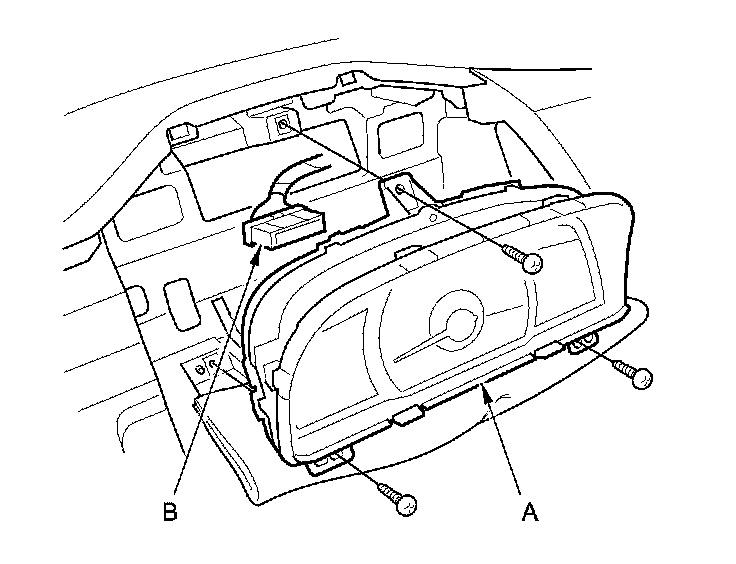

2. Remove the three screws from the gauge control module (tach) (A).





3. Disconnect the 36P connector (B) from the gauge control module (tach).

4. Install the gauge control module (tach) in the reverse order of removal.

Speedometer

1. Remove the instrument panel Instrument Panel Removal/Installation.

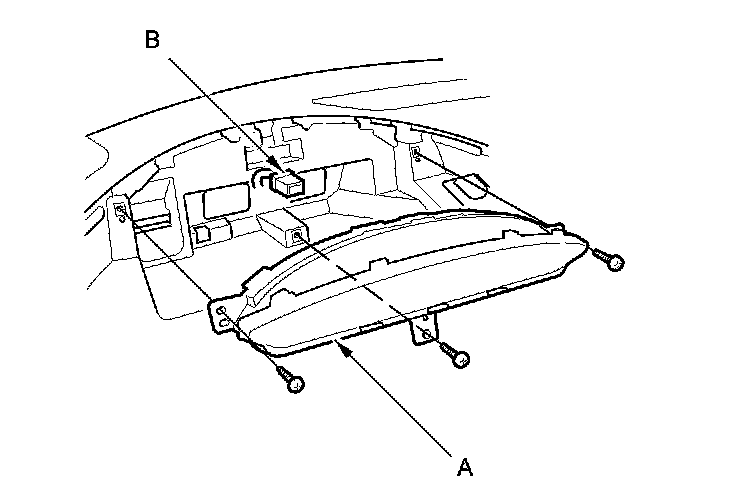

2. Remove the three screws from the gauge control module (speedo) (A).





3. Disconnect the 12P connector (B) from the gauge control module (speedo).

4. Install the gauge control module (speedo) in the reverse order of removal.
