Gauge Control Module (Speedo) Trim Removal/Installation

Gauge Control Module (Speedo) Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

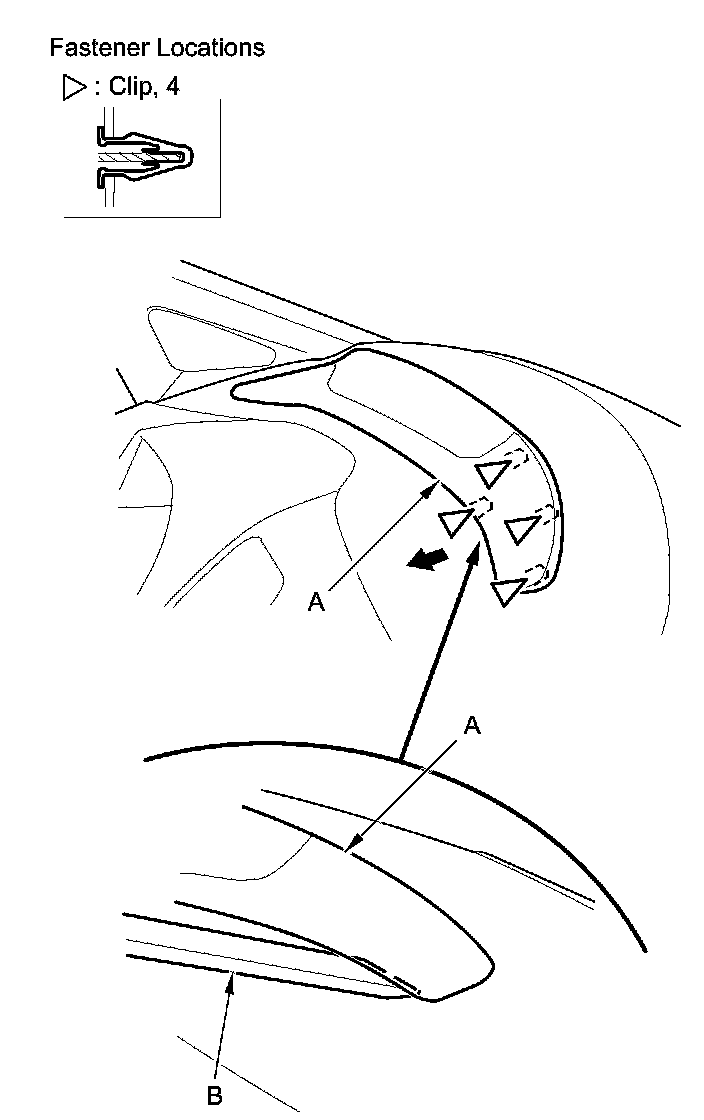

1. Pry up the inside edge of the gauge control module (speedo) trim (A) with the appropriate trim tool (B) to detach the clips.

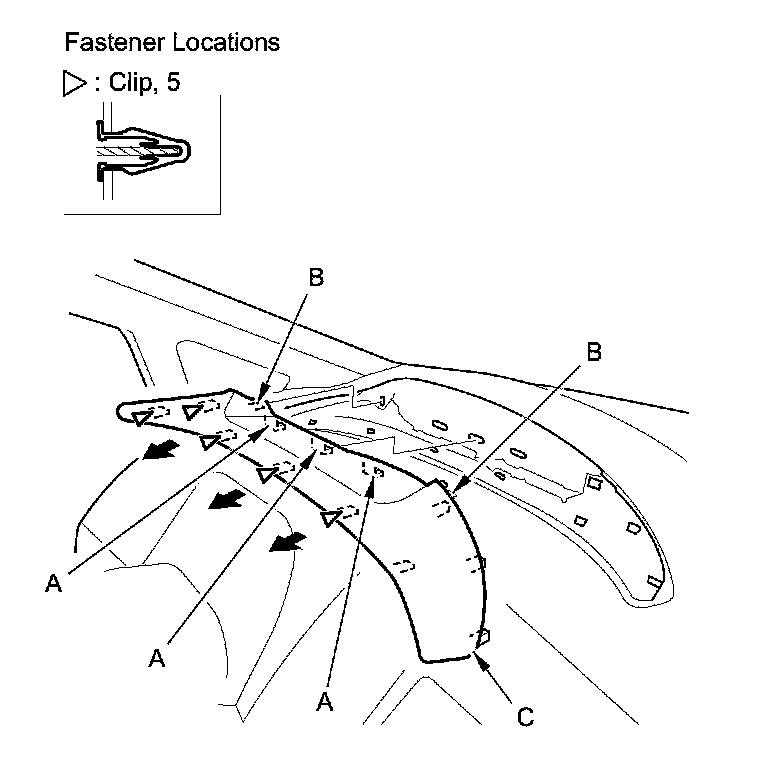

2. Detach the clips with the appropriate trim tool, and release the hooks (A) and the pins (B) along the edge of the gauge control module (speedo) trim (C), then remove the trim.





3. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clip, the hooks, and the pins into place securely.
