CMP Pulse Plate B Replacement

CMP Pulse Plate B Replacement

1. Remove the cylinder head cover Cylinder Head Cover Removal.

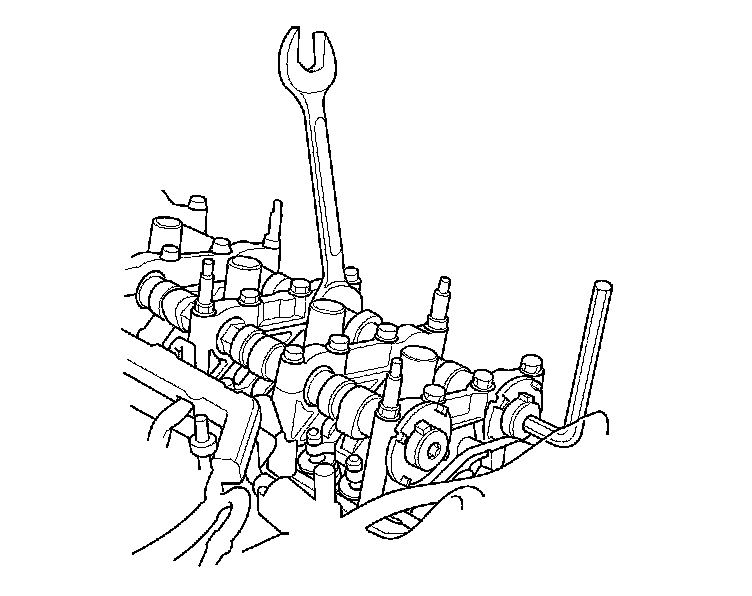

2. Hold the exhaust camshaft with a 27 mm open-end wrench, then loosen the bolt.

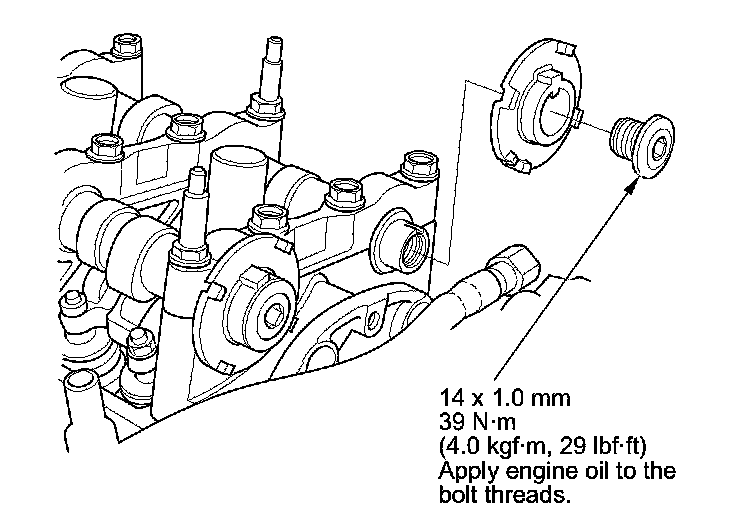

3. Remove CMP pulse plate B.





4. Install CMP pulse plate B in the reverse order of removal.
