CMP Pulse Plate A Replacement

CMP Pulse Plate A Replacement

1. Remove the cylinder head cover Cylinder Head Cover Removal.

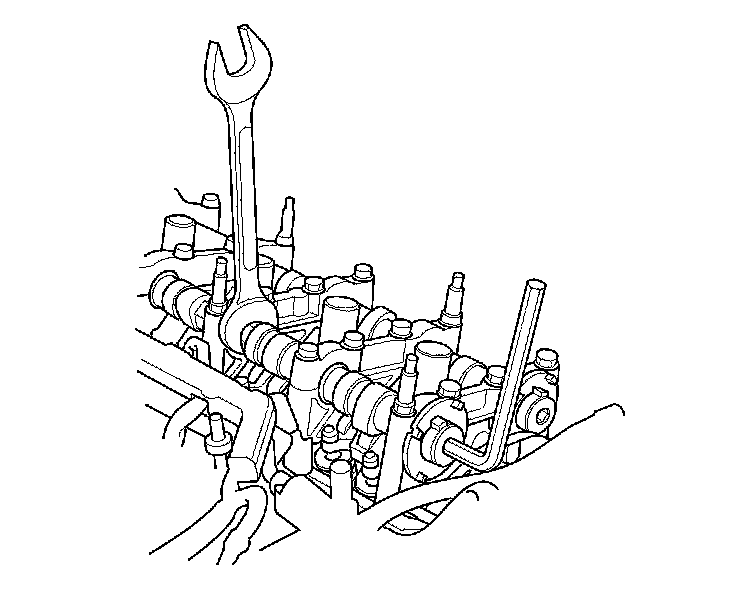

2. Hold the intake camshaft with a 27 mm open-end wrench, then loosen the bolt.

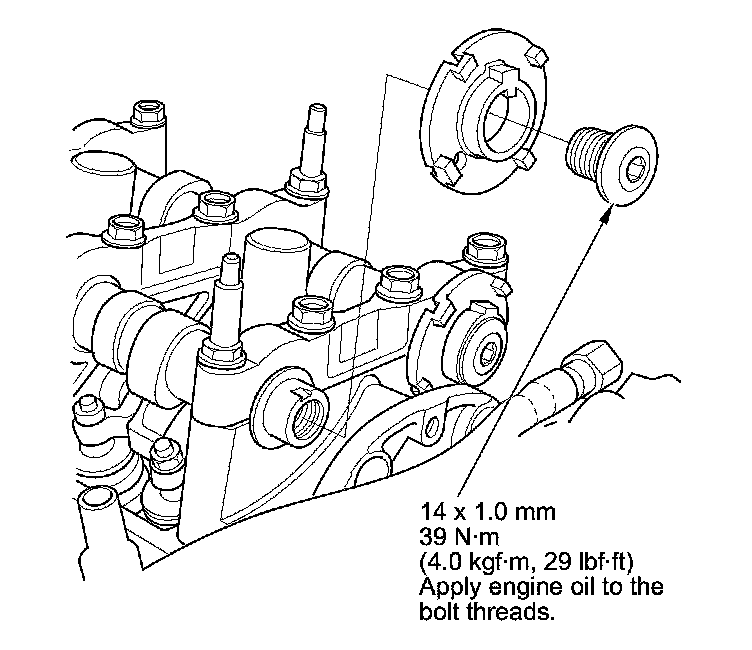

3. Remove CMP pulse plate A.





4. Install CMP pulse plate A in the reverse order of removal.
