Engine Compartment Wire Harness (Si Model)




Connector and Harness Locations

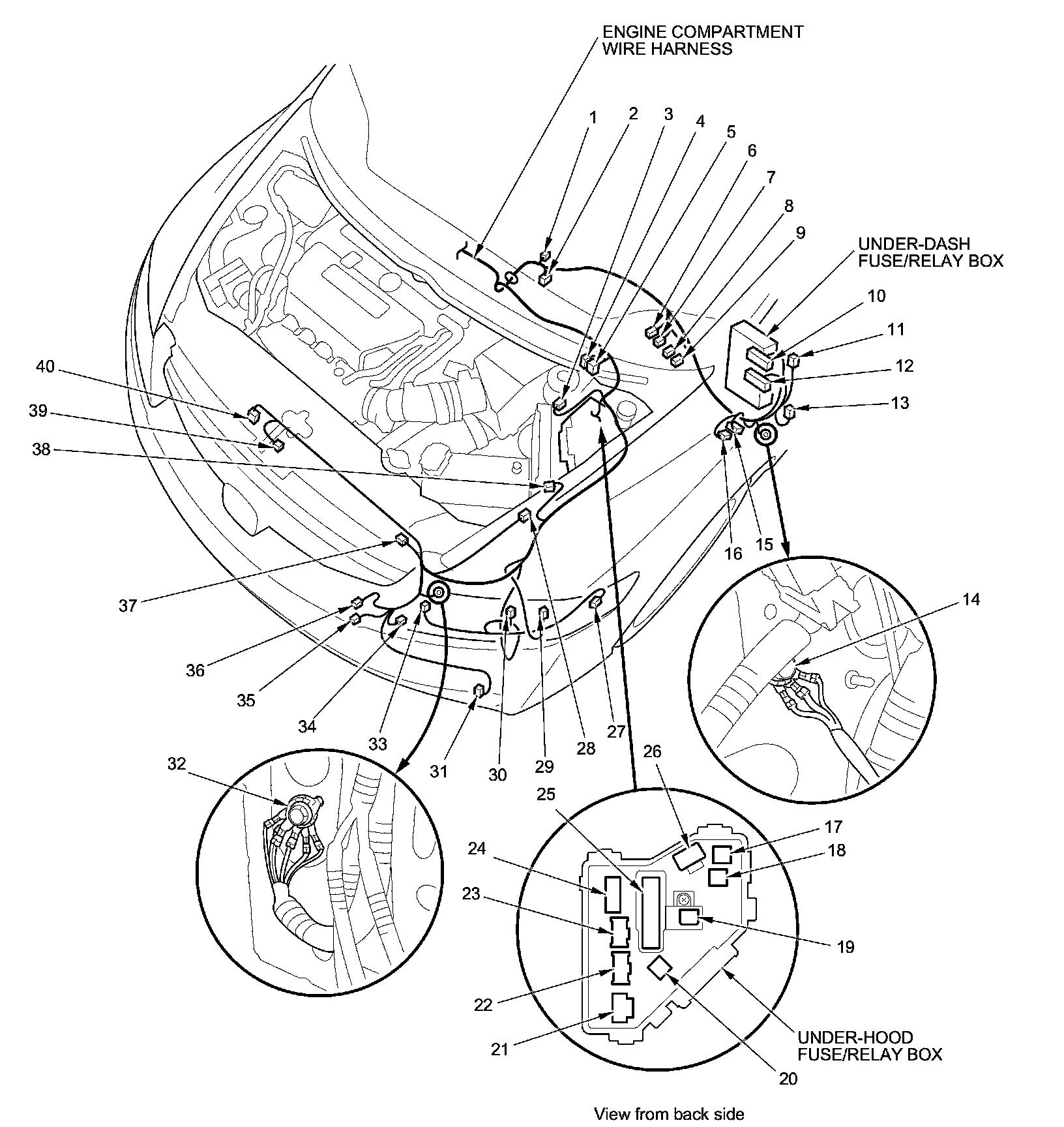

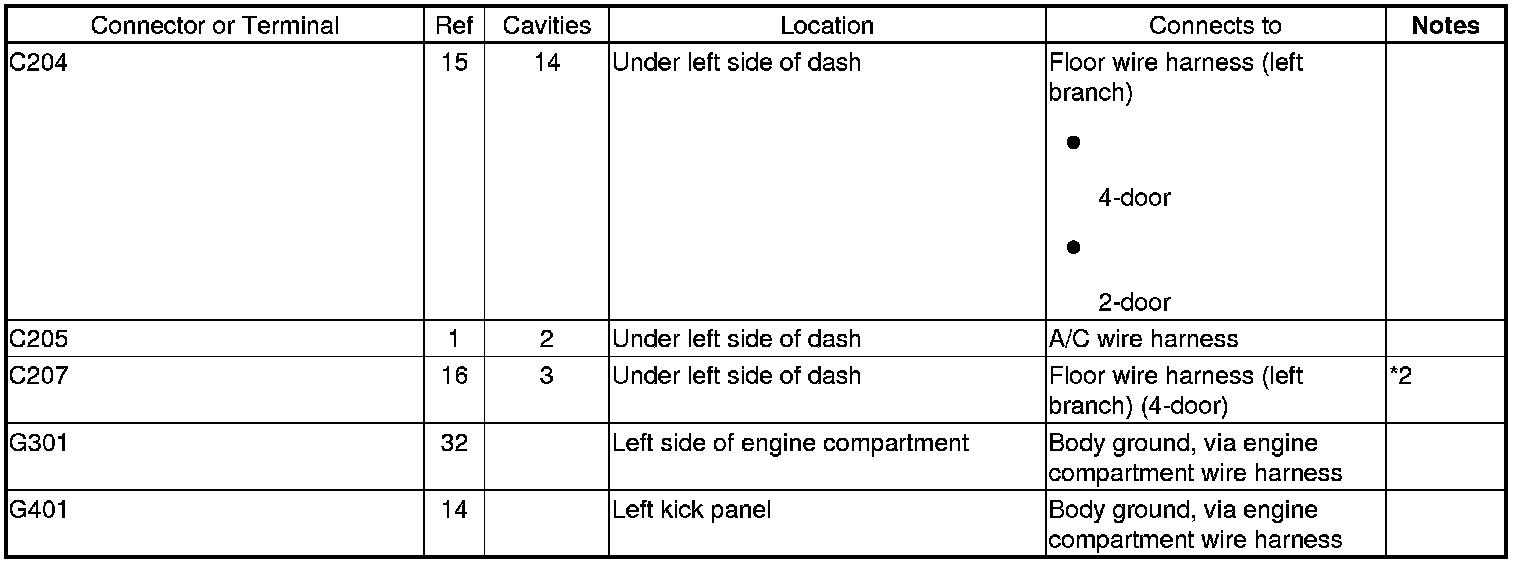

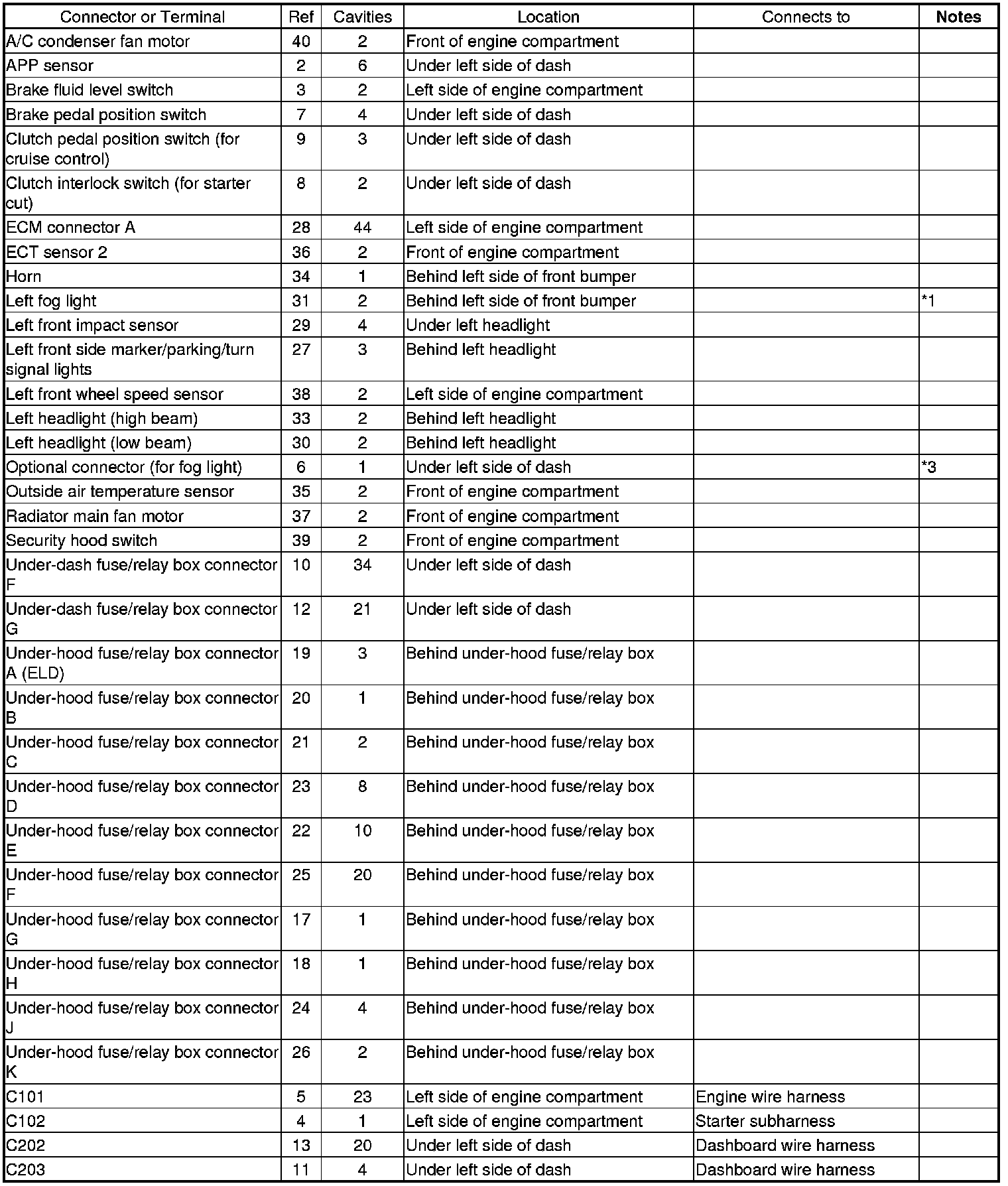

Engine Compartment Wire Harness (Left branch) (Si model)

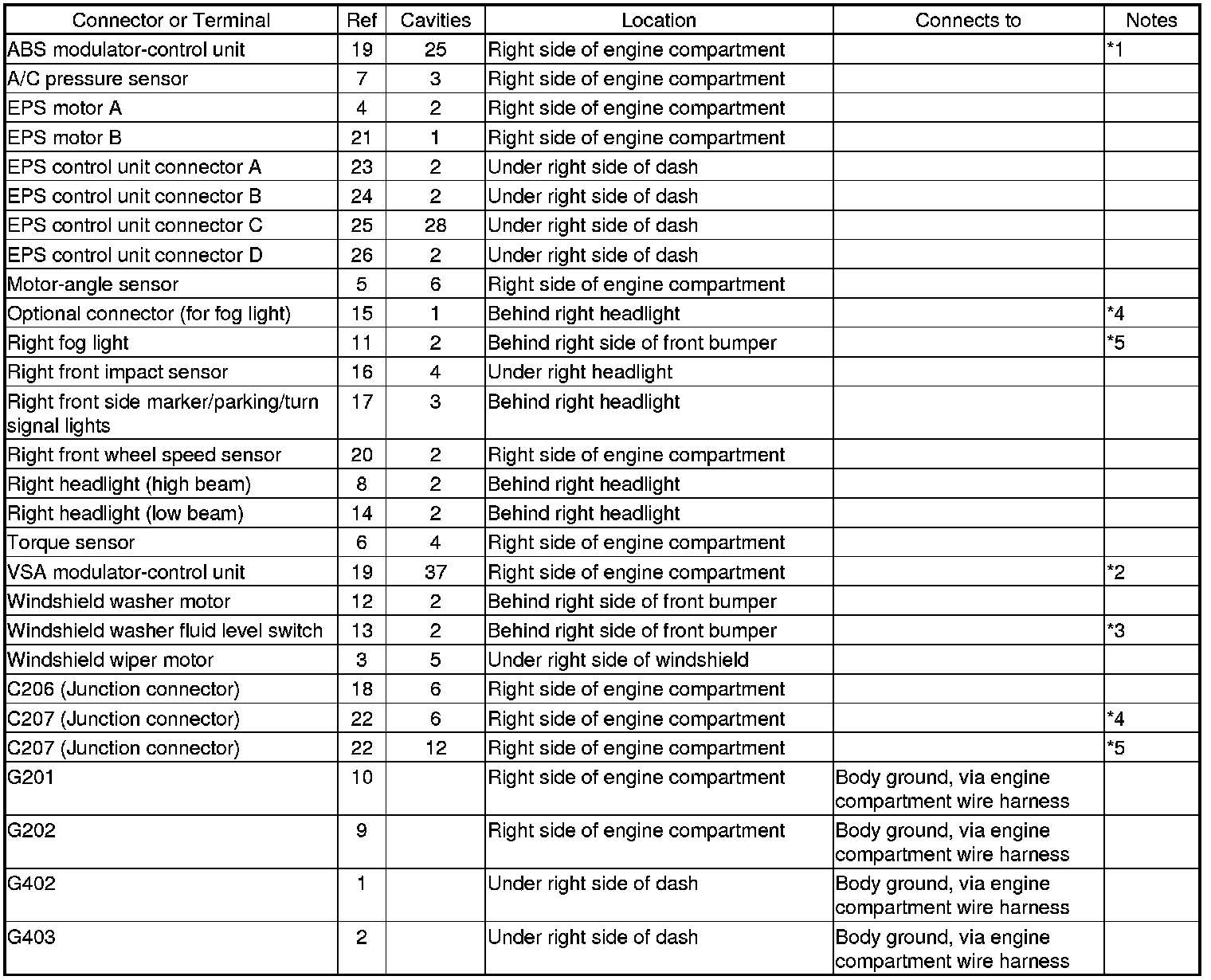

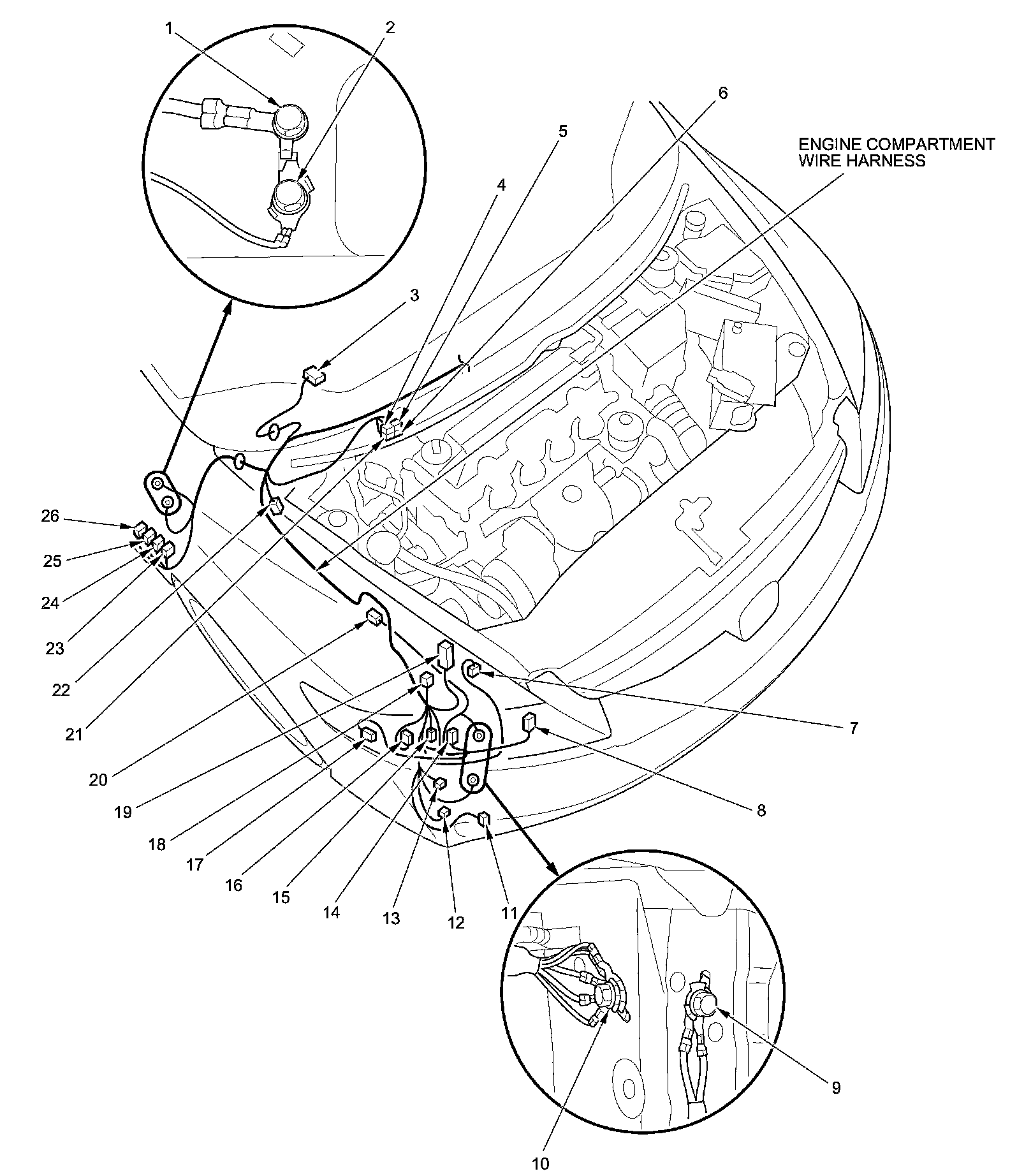

Engine Compartment Wire Harness (Right branch) (Si model)
