Trunk Lid Spoiler Subharness




Connector and Harness Locations

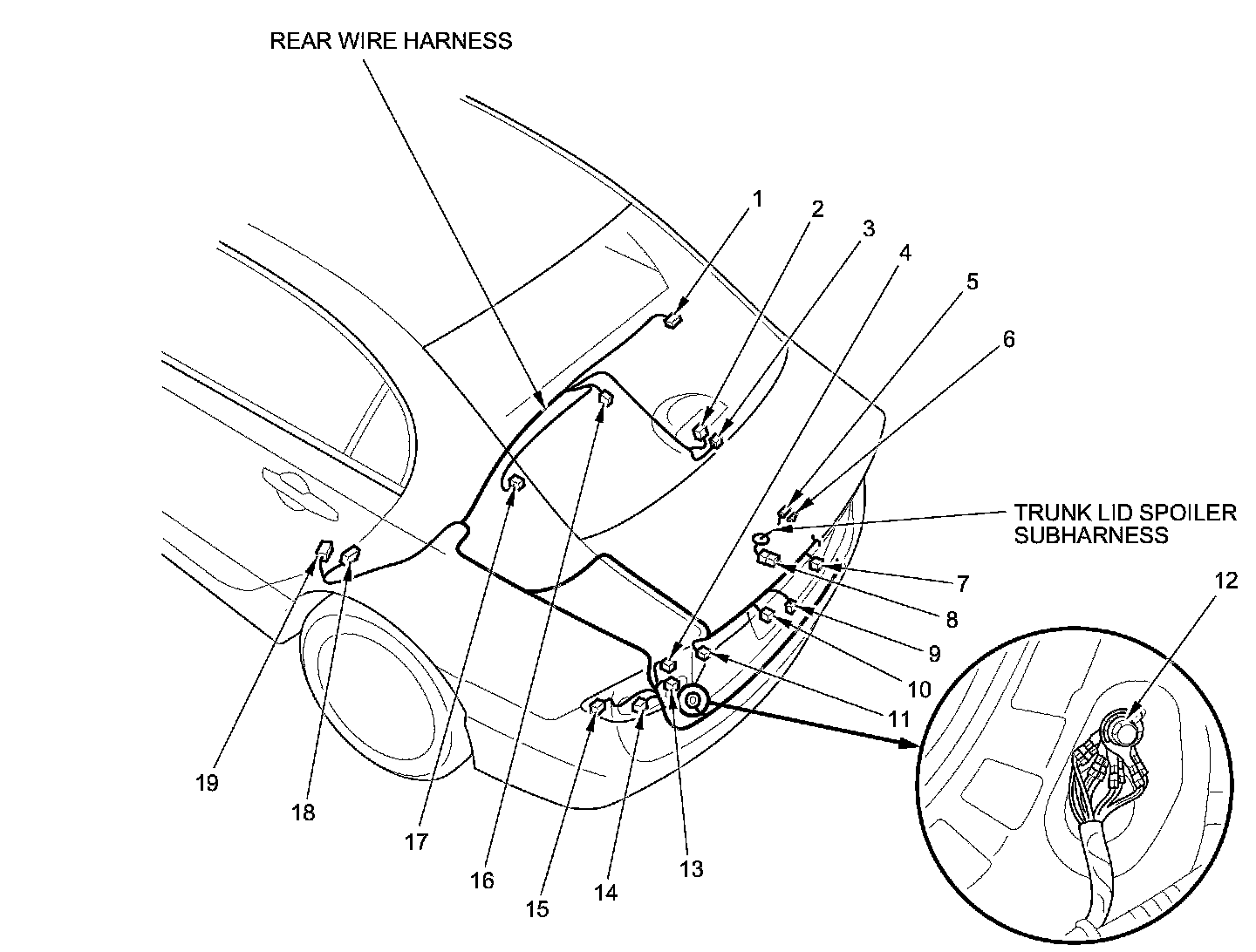

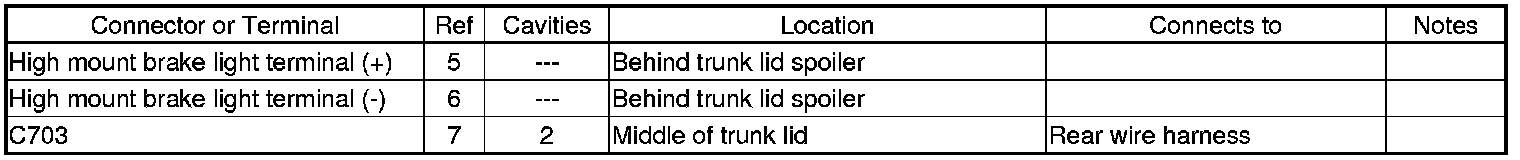

Trunk Lid Spoiler Subharness ('07-11 4-door Si models)

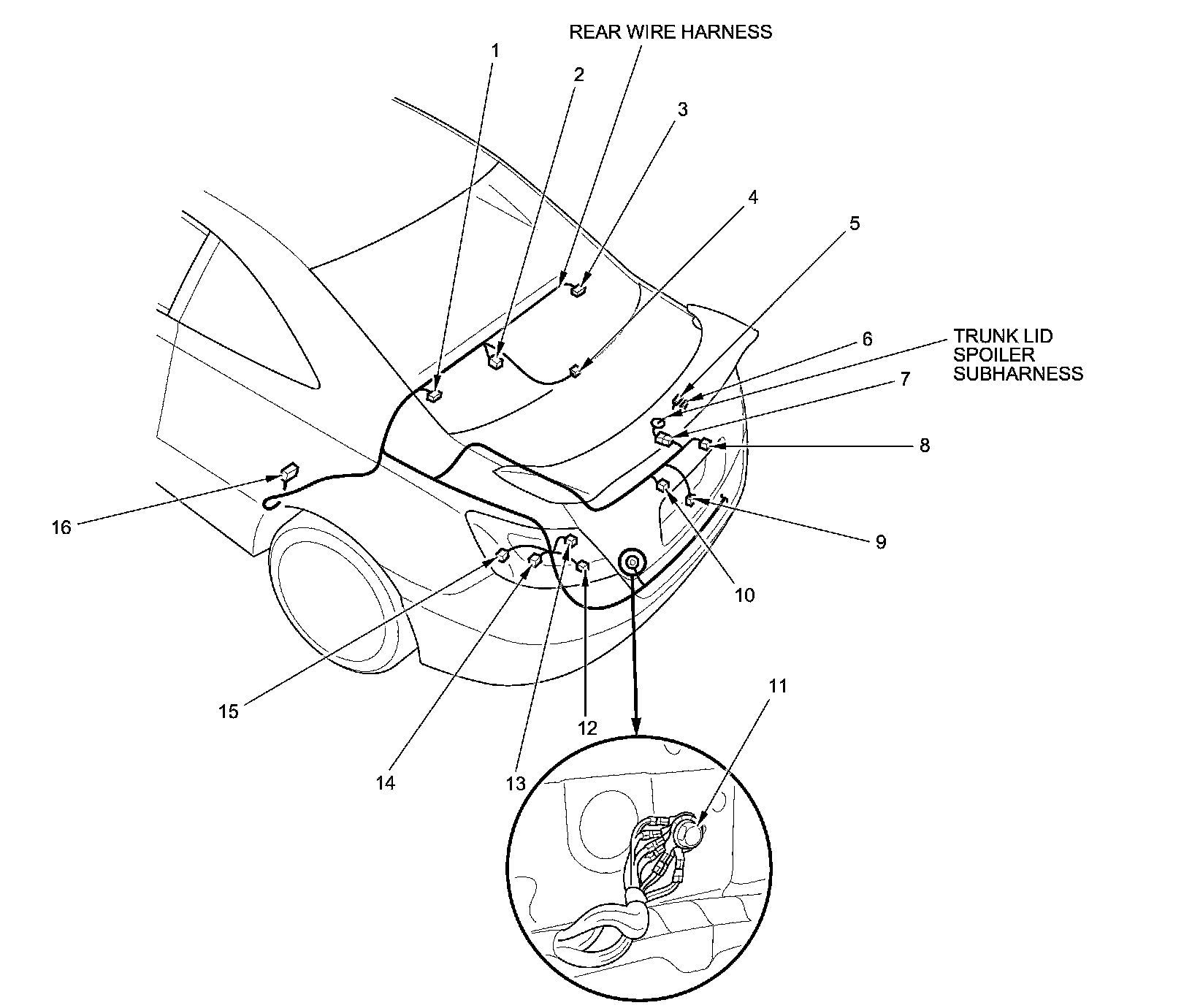

Trunk Lid Spoiler Subharness (2-door Si model)
