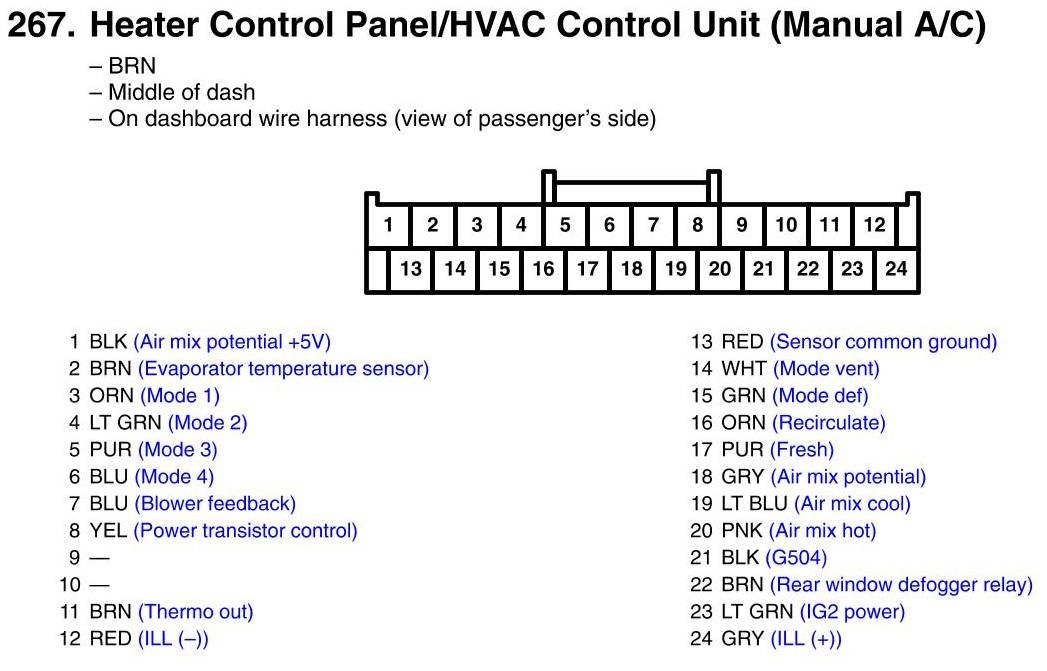

Heater Control Panel/HVAC Control Unit Connector View (Manual A/C)
Heater Control Panel/HVAC Control Unit Connector View (Manual A/C)
