Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 69 - Inner Side Front Passenger's Weight Sensor Connector View (2-Door)

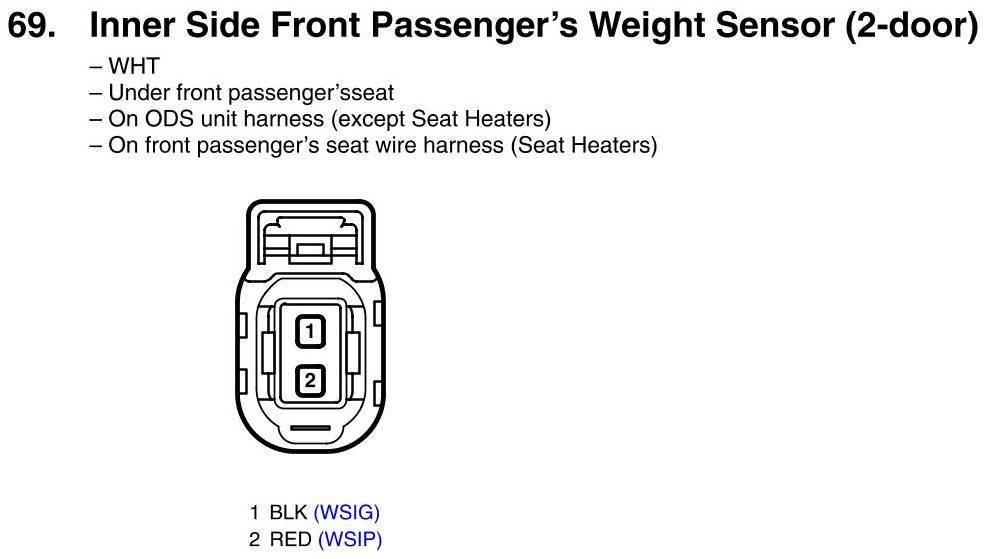

View 69 - Inner Side Front Passenger's Weight Sensor Connector View (2-Door)
