Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 36 - Automatic Dimming Inside Mirror In-Line Fuse Connector View (Honda Accessory)

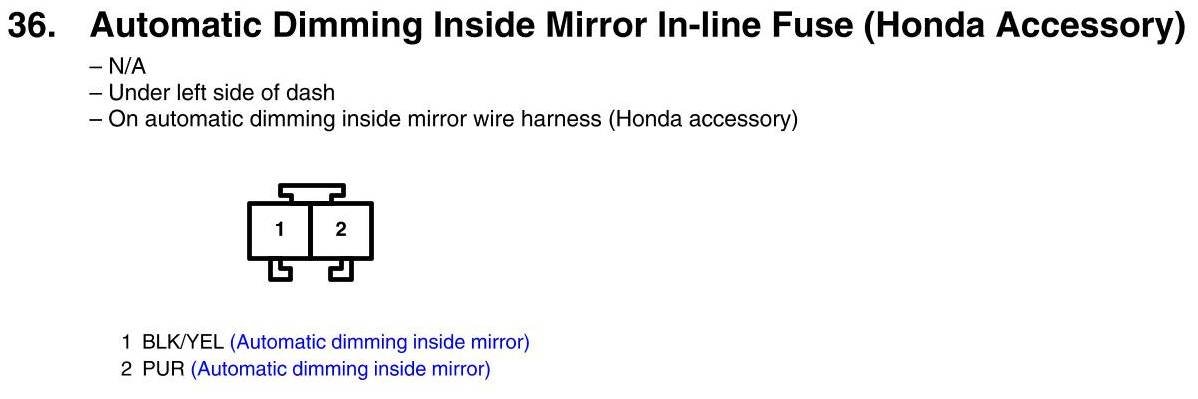

View 36 - Automatic Dimming Inside Mirror In-Line Fuse Connector View (Honda Accessory)
