Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 291 - Power Mirror, Left Connector View (Power Mirrors)

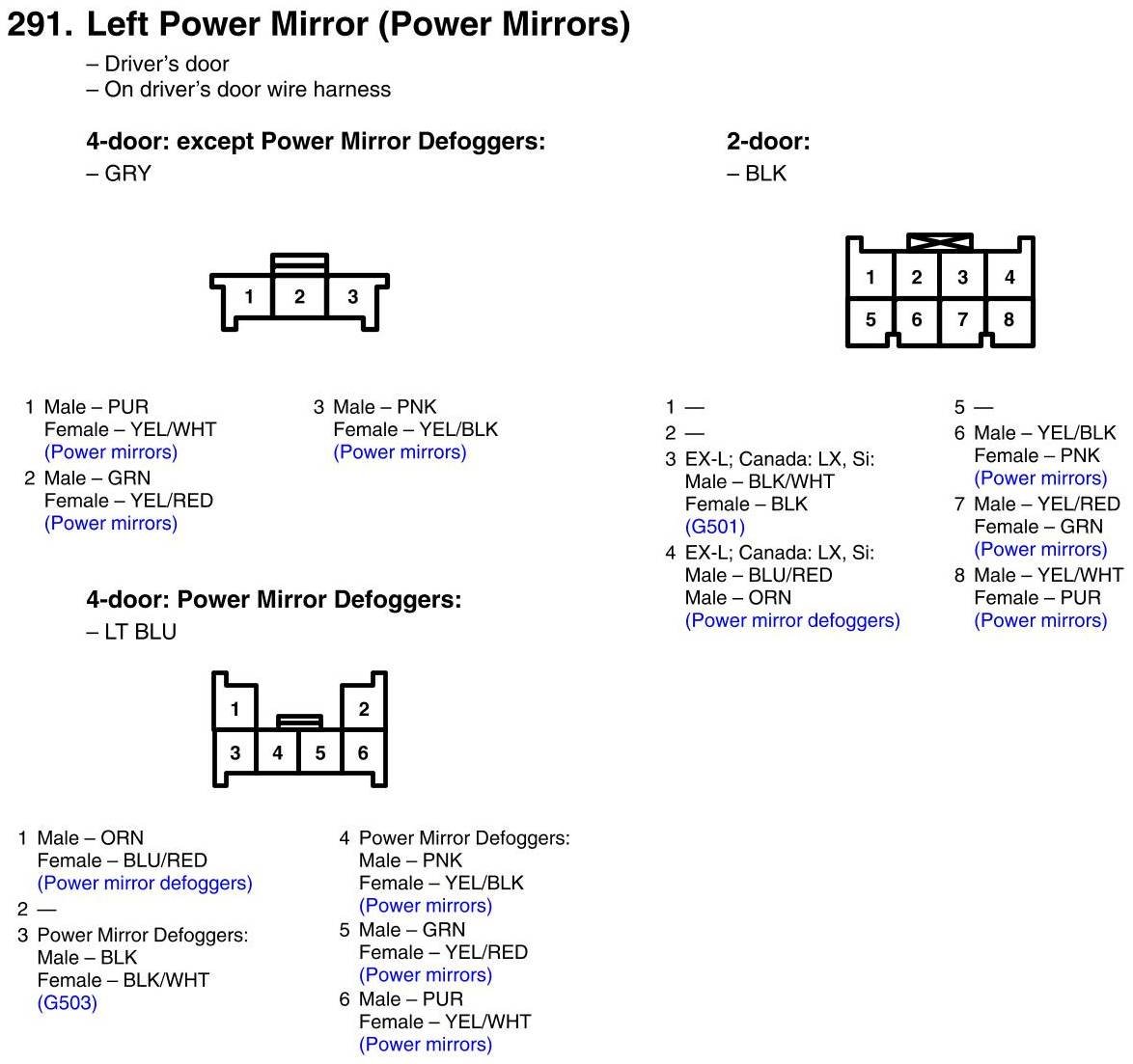

View 291 - Power Mirror, Left Connector View (Power Mirrors)
