Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 263 - C101 (Junction Connector) Connector View

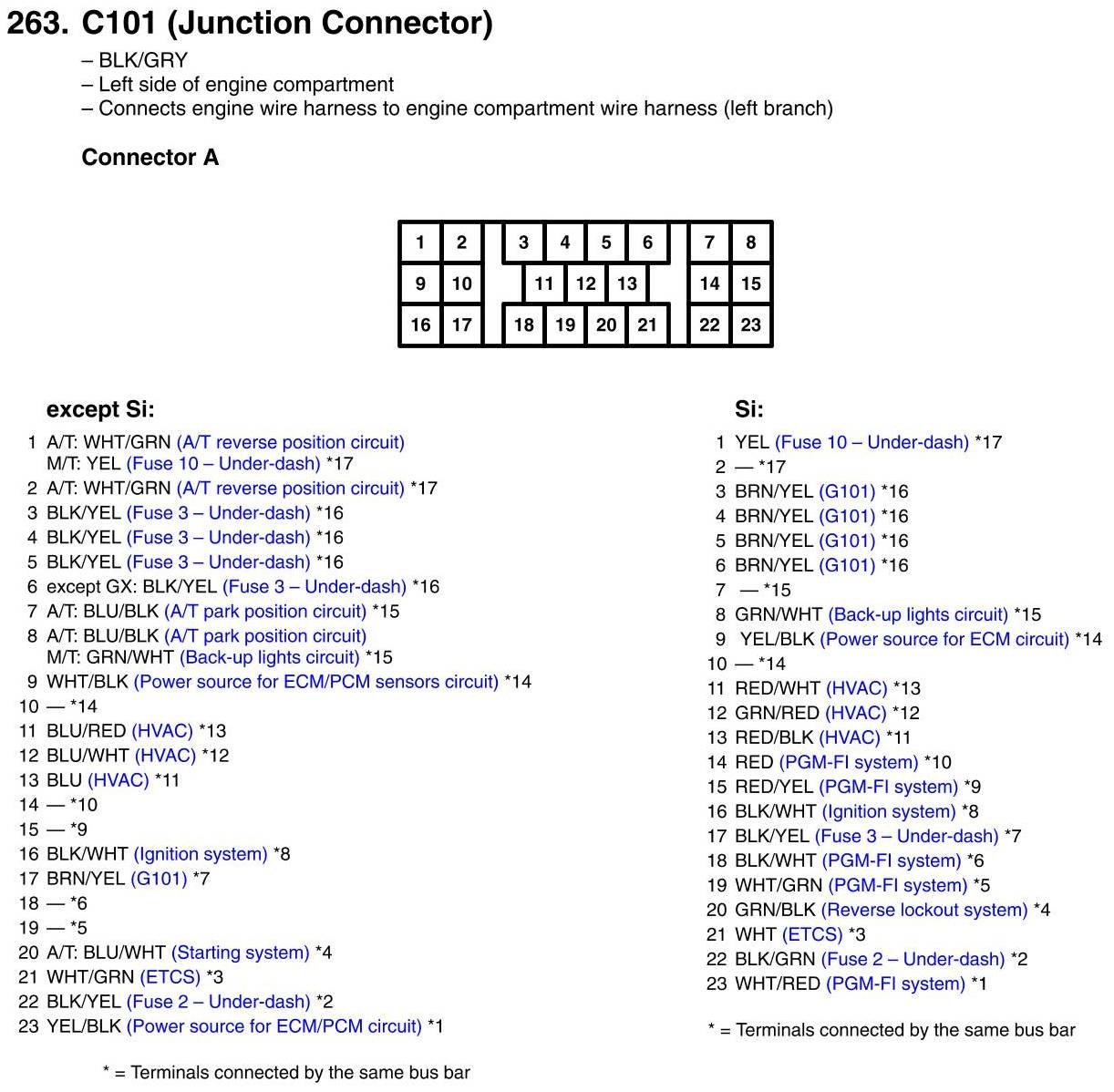

View 263 - C101 (Junction Connector) Connector View
