Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 258 - C771 Connector View (4-Door)

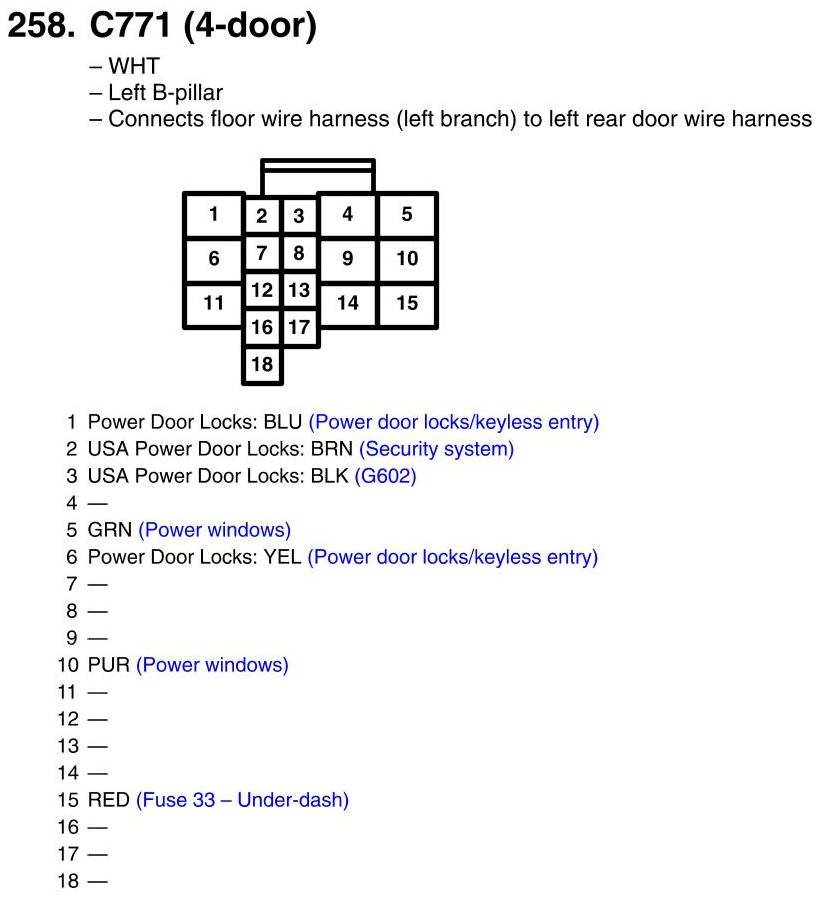

View 258 - C771 Connector View (4-Door)
