Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 244 - Power Mirror Switch Connector View (Power Mirrors)

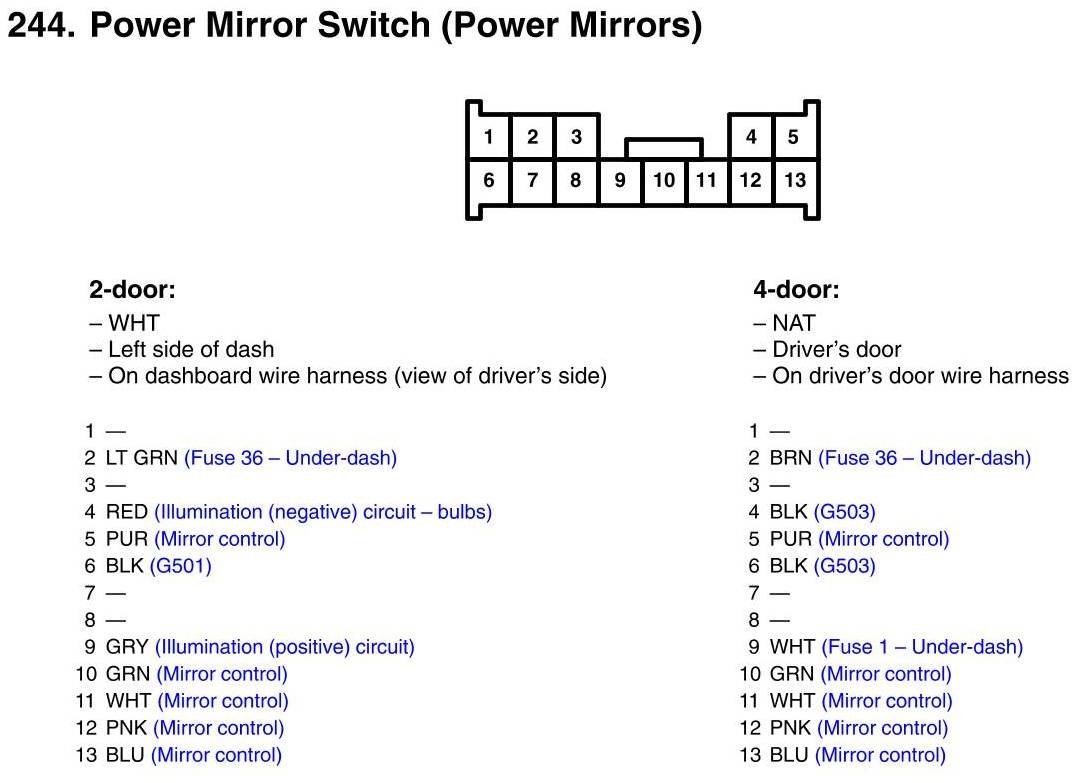

View 244 - Power Mirror Switch Connector View (Power Mirrors)
