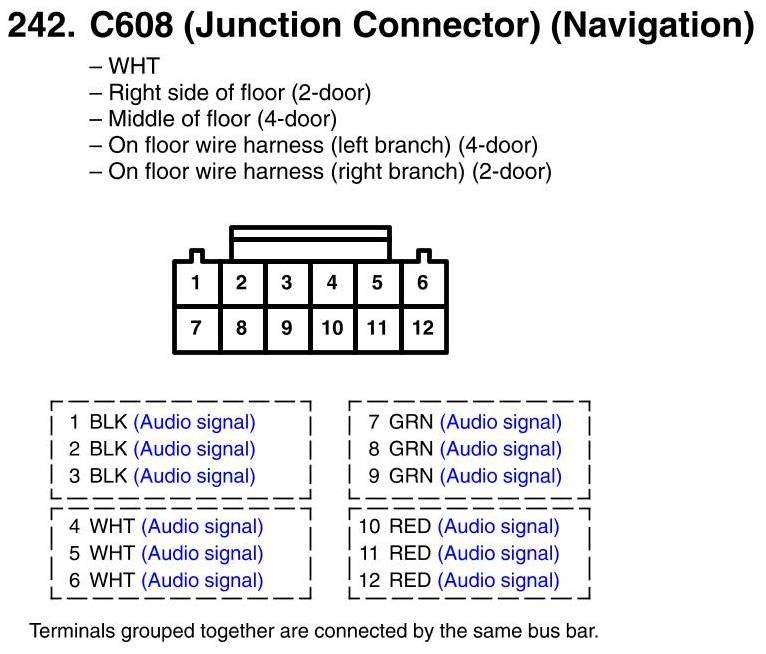

View 242 - C608 (Junction Connector) Connector View (Navigation)
View 242 - C608 (Junction Connector) Connector View (Navigation)
