Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 237 - Moonroof Switch Connector View

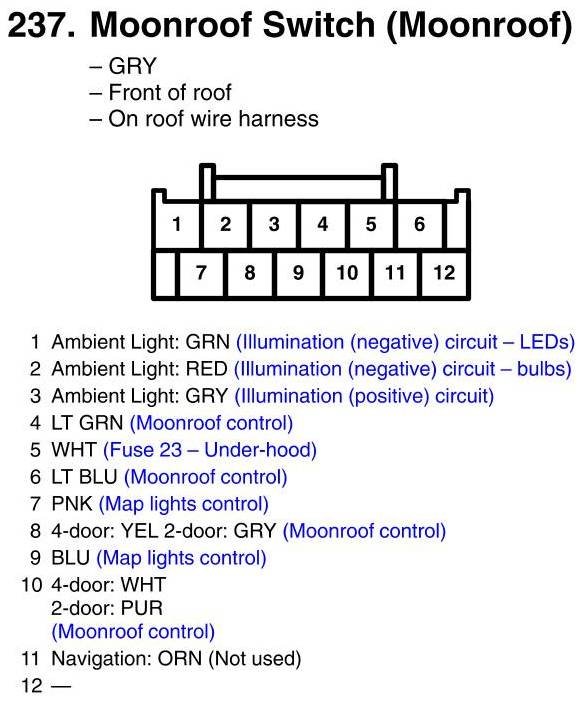

View 237 - Moonroof Switch Connector View
