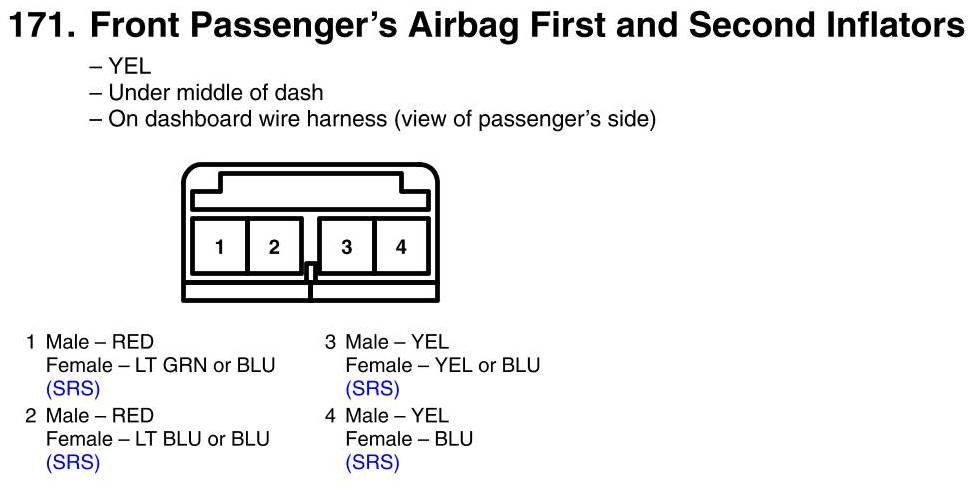

View 171 - Front Passenger's Airbag First And Second Inflators Connector View
View 171 - Front Passenger's Airbag First And Second Inflators Connector View
