Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 126 - A/C Pressure Sensor Connector View

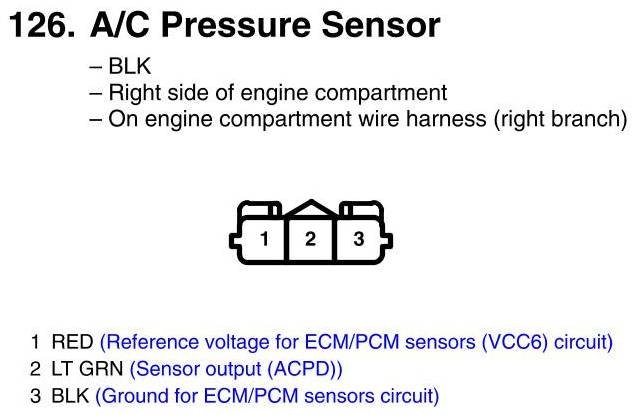

View 126 - A/C Pressure Sensor Connector View
