Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 116 - VTC Oil Control Solenoid Valve Connector View (Si)

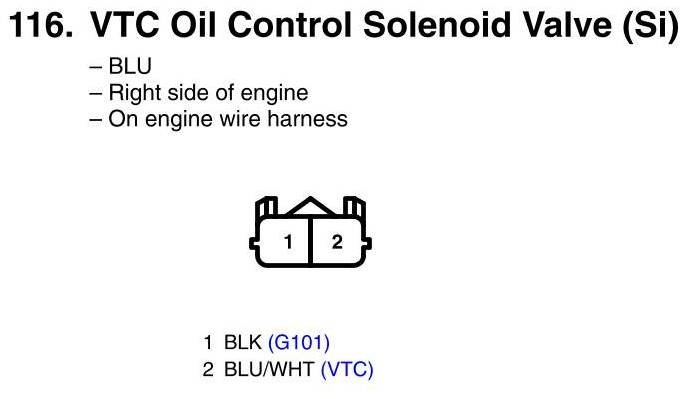

View 116 - VTC Oil Control Solenoid Valve Connector View (Si)
