Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 112 - Shift Lock Solenoid Connector View (A/T)

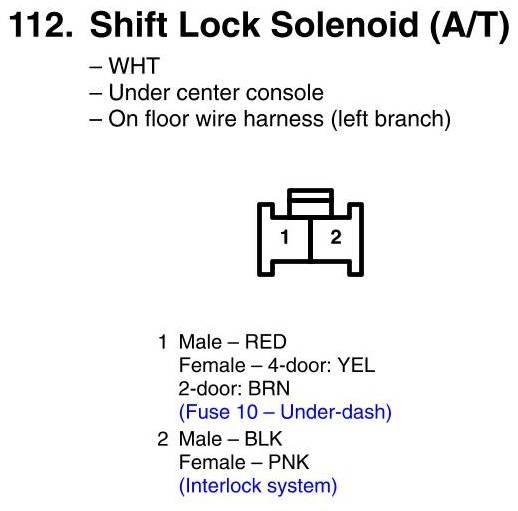

View 112 - Shift Lock Solenoid Connector View (A/T)
