Home
>>
Honda
>>
2011
>>
Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Element
>>
Diagrams
>>
Connector Views
>>

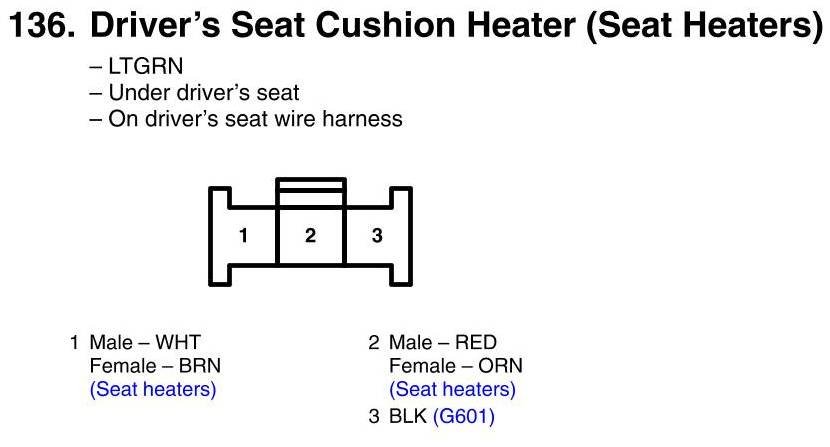

Seat Cushion Heater, Driver's Connector View (Seat Heaters)
Seat Cushion Heater, Driver's Connector View (Seat Heaters)
