Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Paint, Striping and Decals >> Paint >> Locations

Paint: Locations

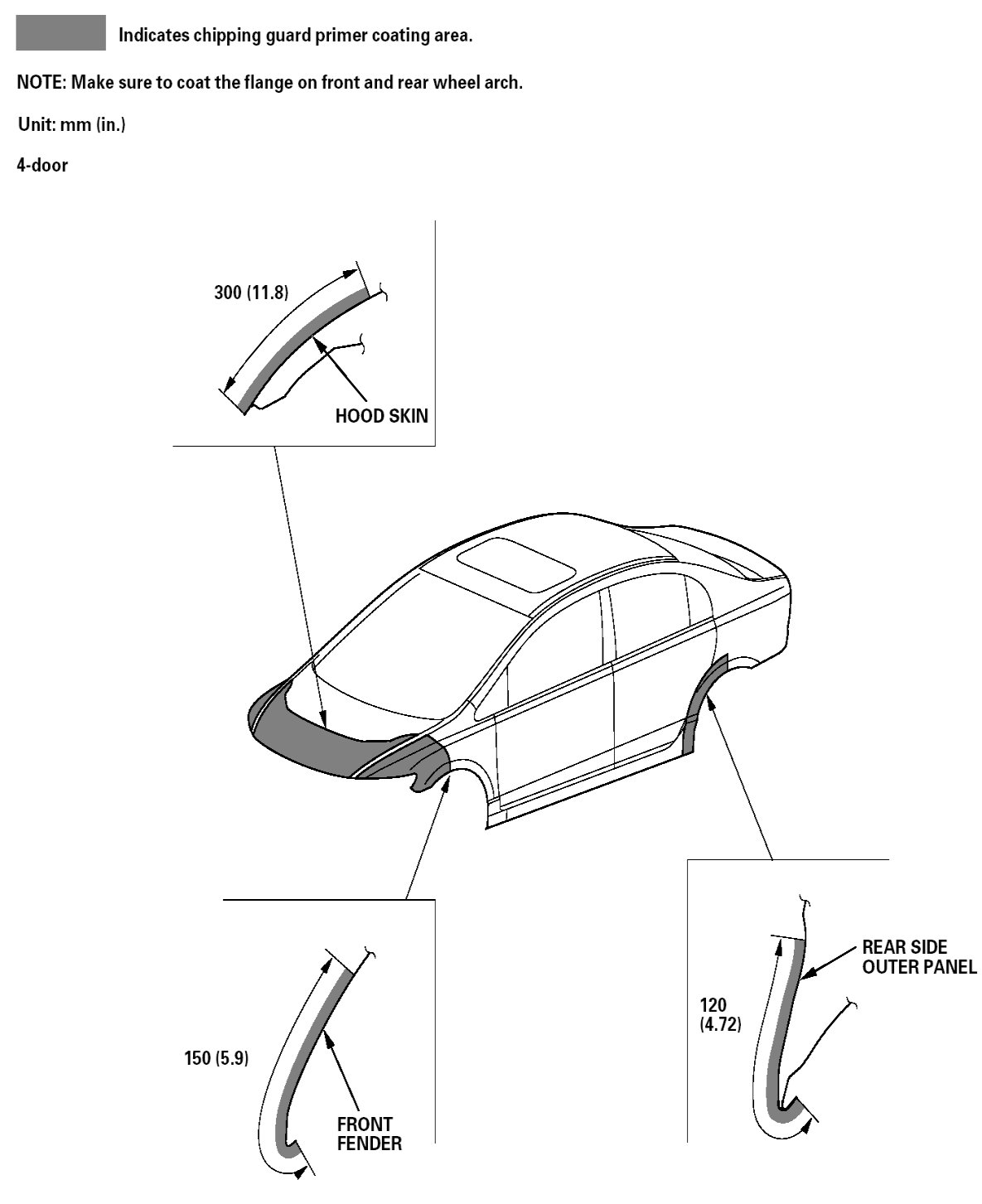

Coating Diagram (4-door):

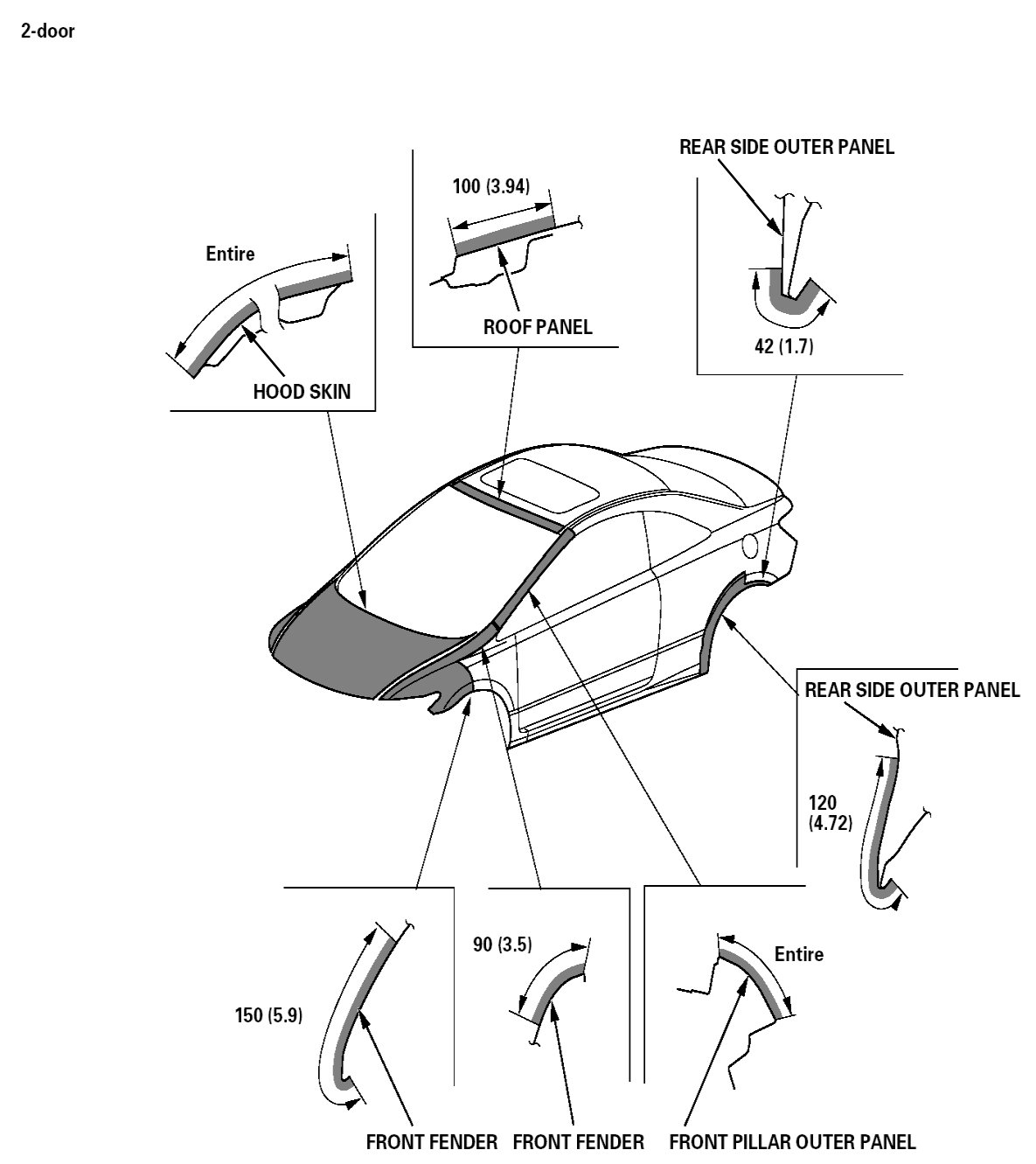

Coating Diagram (2-door):
