Power Mirror Replacement (2-Door)

Power Mirror Replacement

2-door

NOTE: Take care not to scratch the door.

1. Lower the door glass fully.

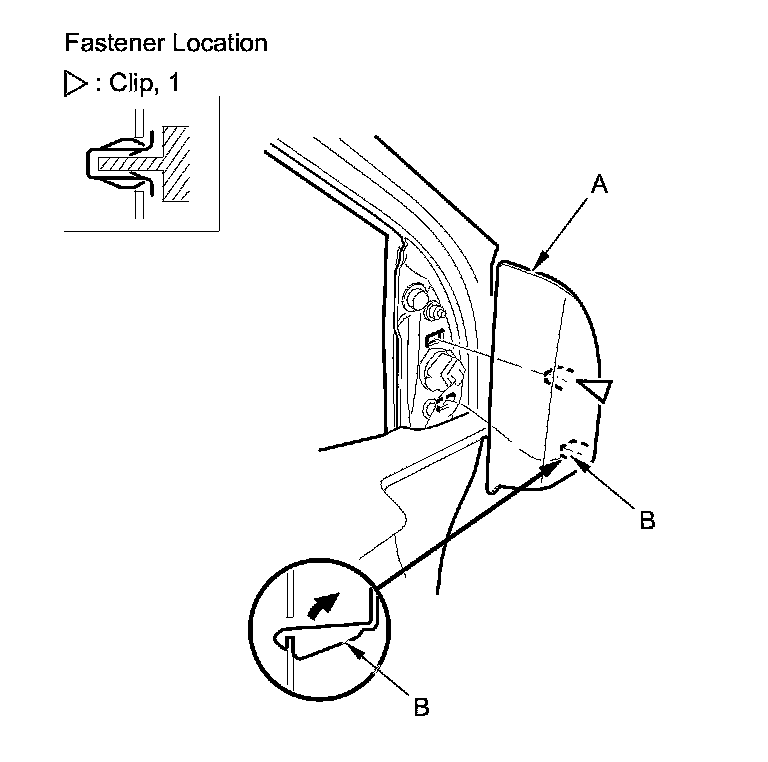

2. Carefully pull out the mirror mount cover (A) to detach the clip, then lift the cover to release the hook (B). Remove the cover.

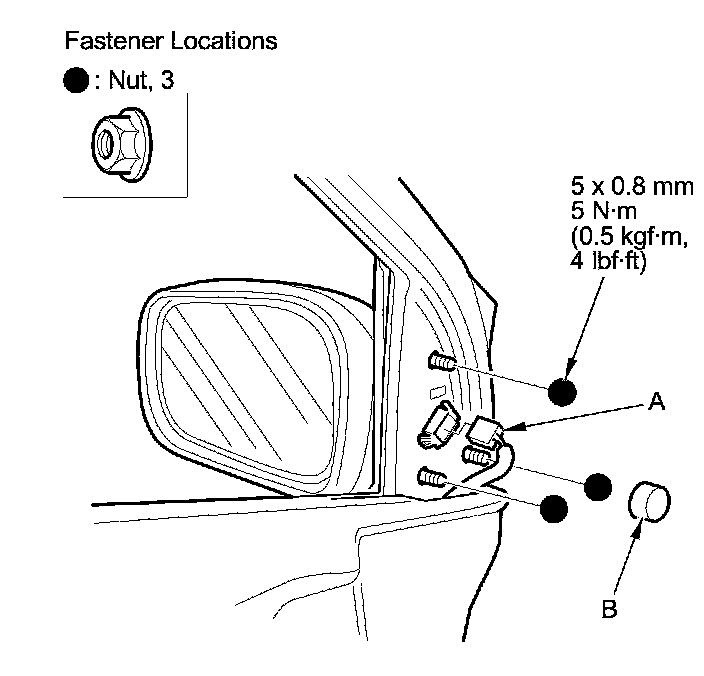

3. Disconnect the power mirror connector (A), and remove the cap (B).





4. While holding the power mirror, remove the nuts securing the mirror.

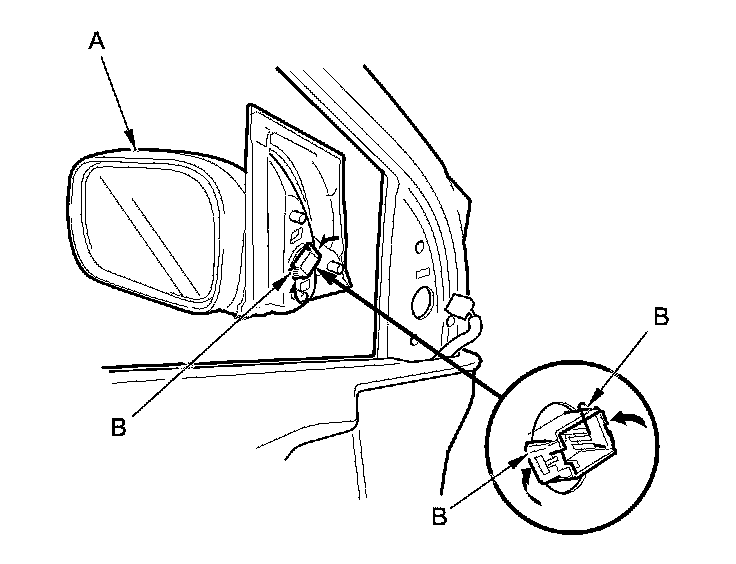

5. While holding the power mirror (A), squeeze the retaining tabs (B), then push out to remove the mirror.





6. Install the power mirror in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- Push the clip and the hook into place securely.
- Make sure the power mirror operates properly.
