Keyless/Power Door Locks/Security System (MICU) Input Test

Keyless/Power Door Locks/Security System (MICU) Input Test

NOTE:

- Before testing, make sure the turn signal/hazard warning lights work properly.
- Before testing the keyless/power door locks/security system, troubleshoot the system using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.
- Before testing, make sure the No. 10 (7.5 A) and No. 25 (20 A) fuses in the under-dash fuse/relay box are OK.

1. Turn the ignition switch to LOCK (0).

2. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

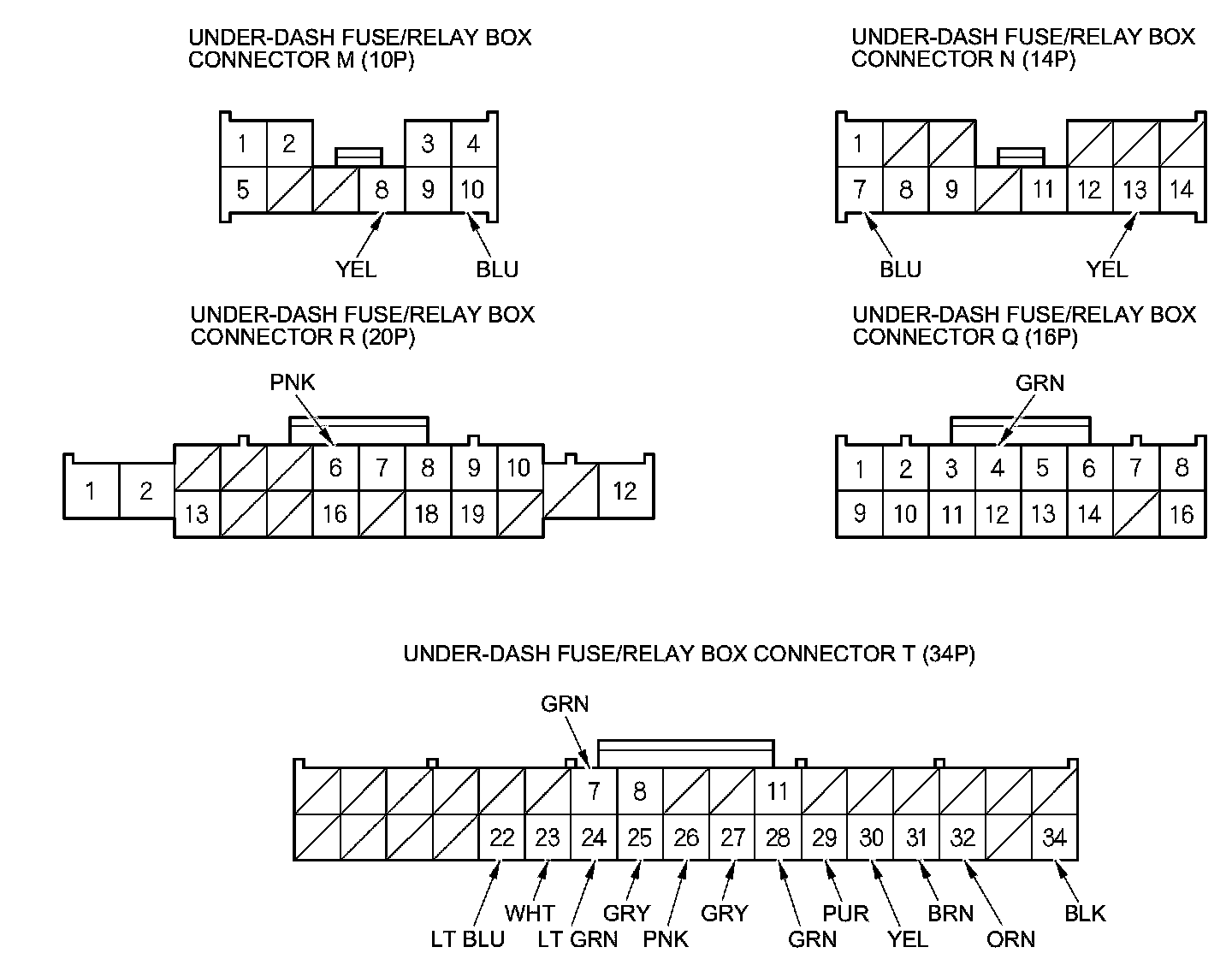

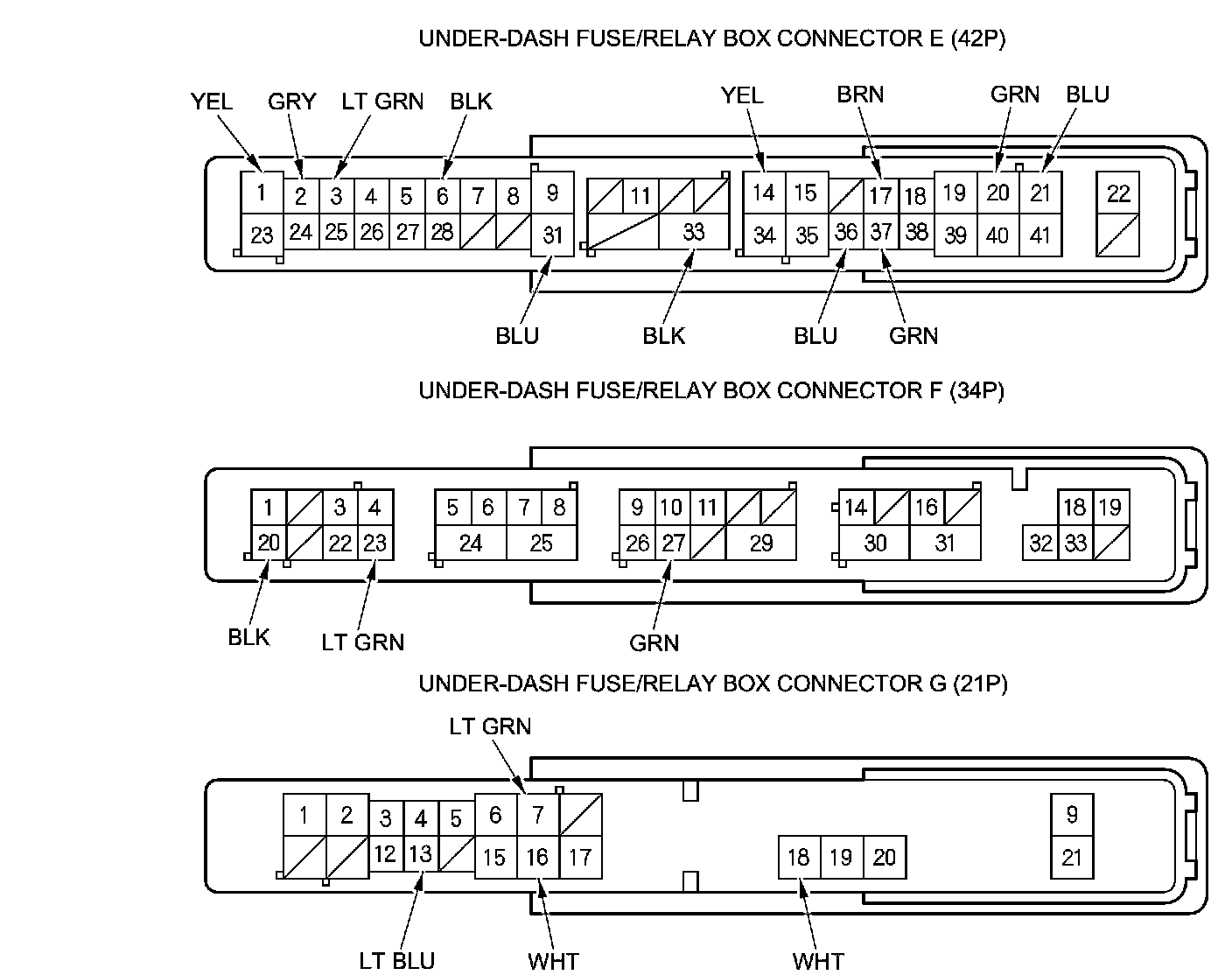

3. Disconnect under-dash fuse/relay box connectors E, F, G, M, N, Q, R, and T.

NOTE: All connector views are wire side of female terminals.










4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

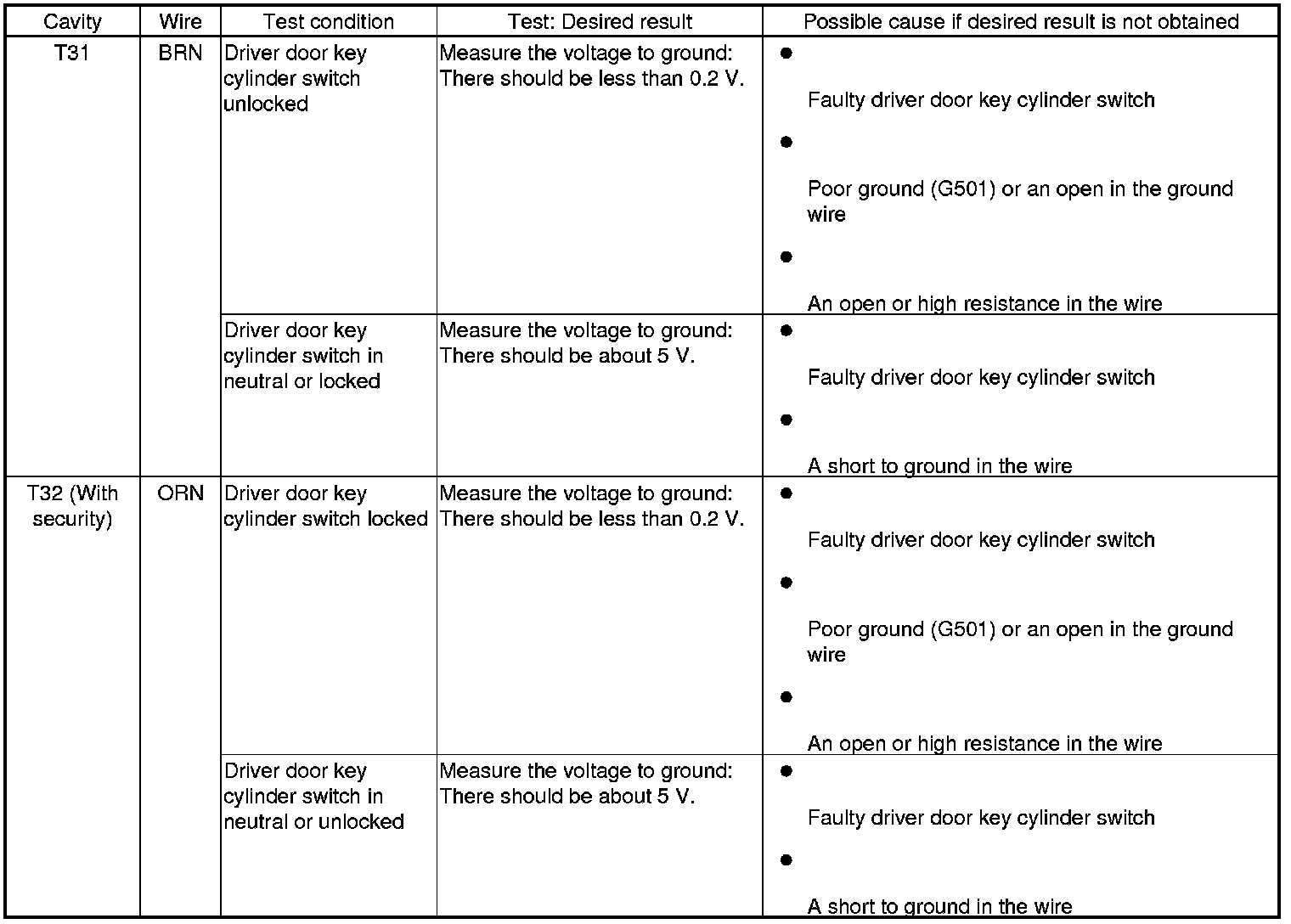

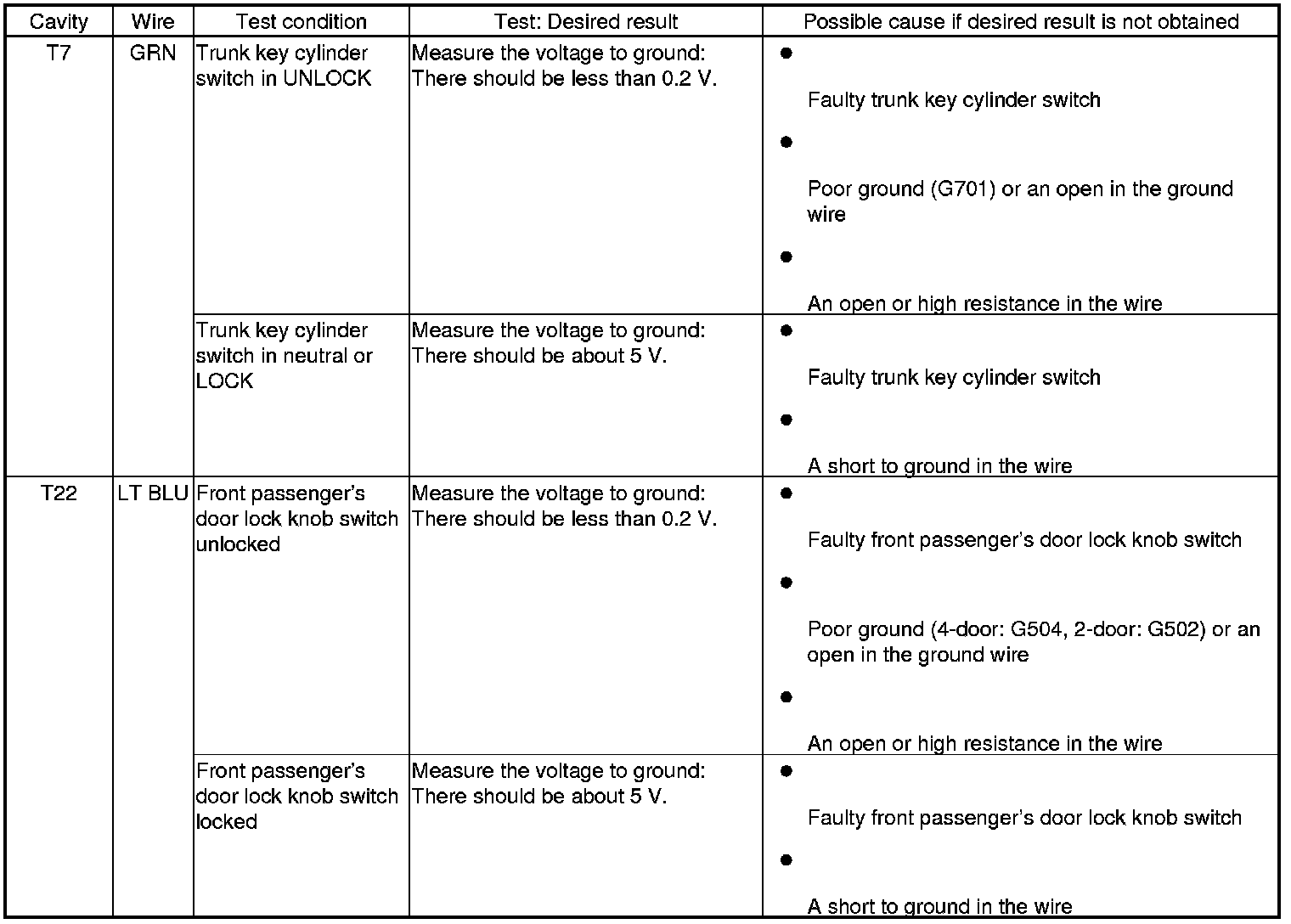

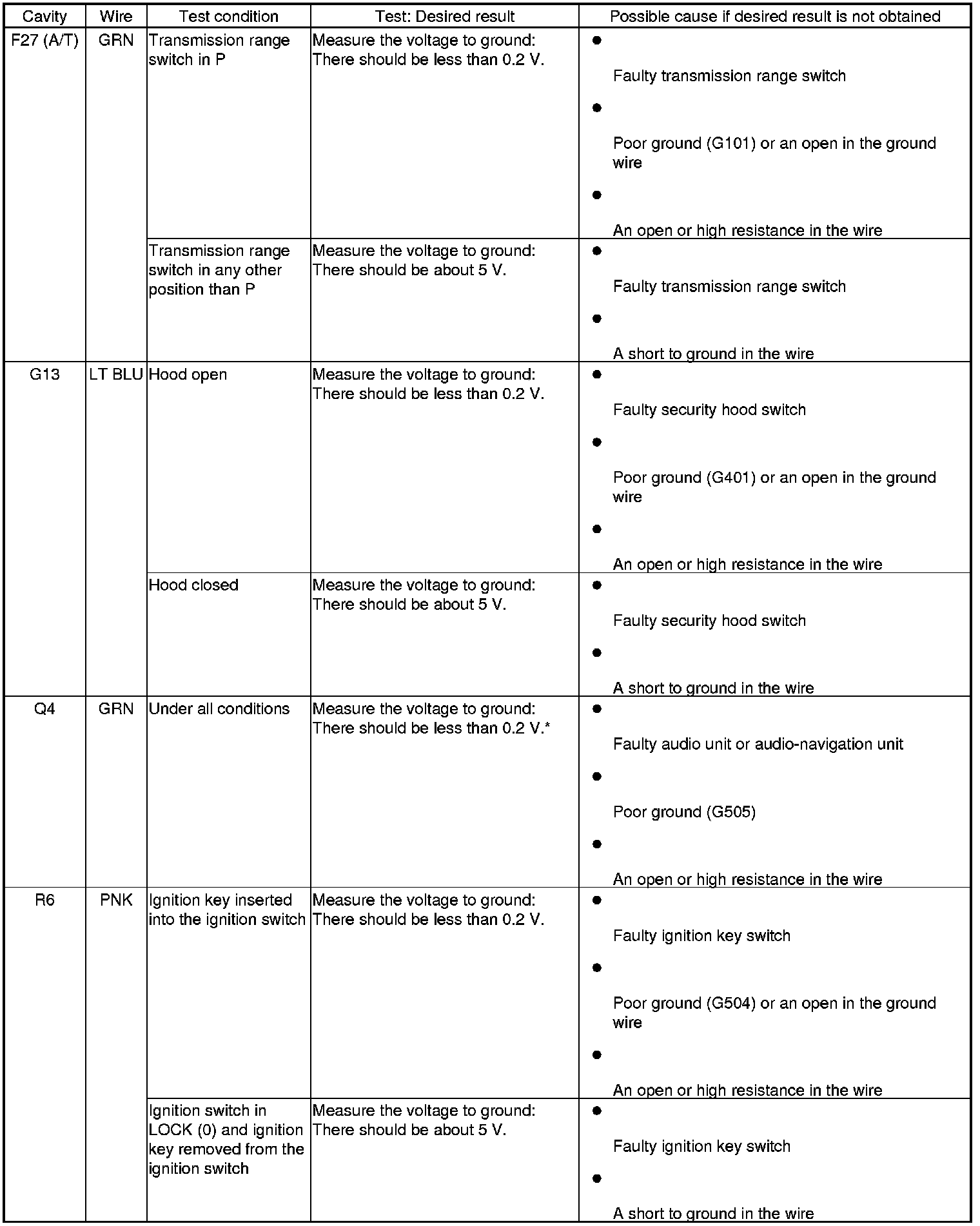

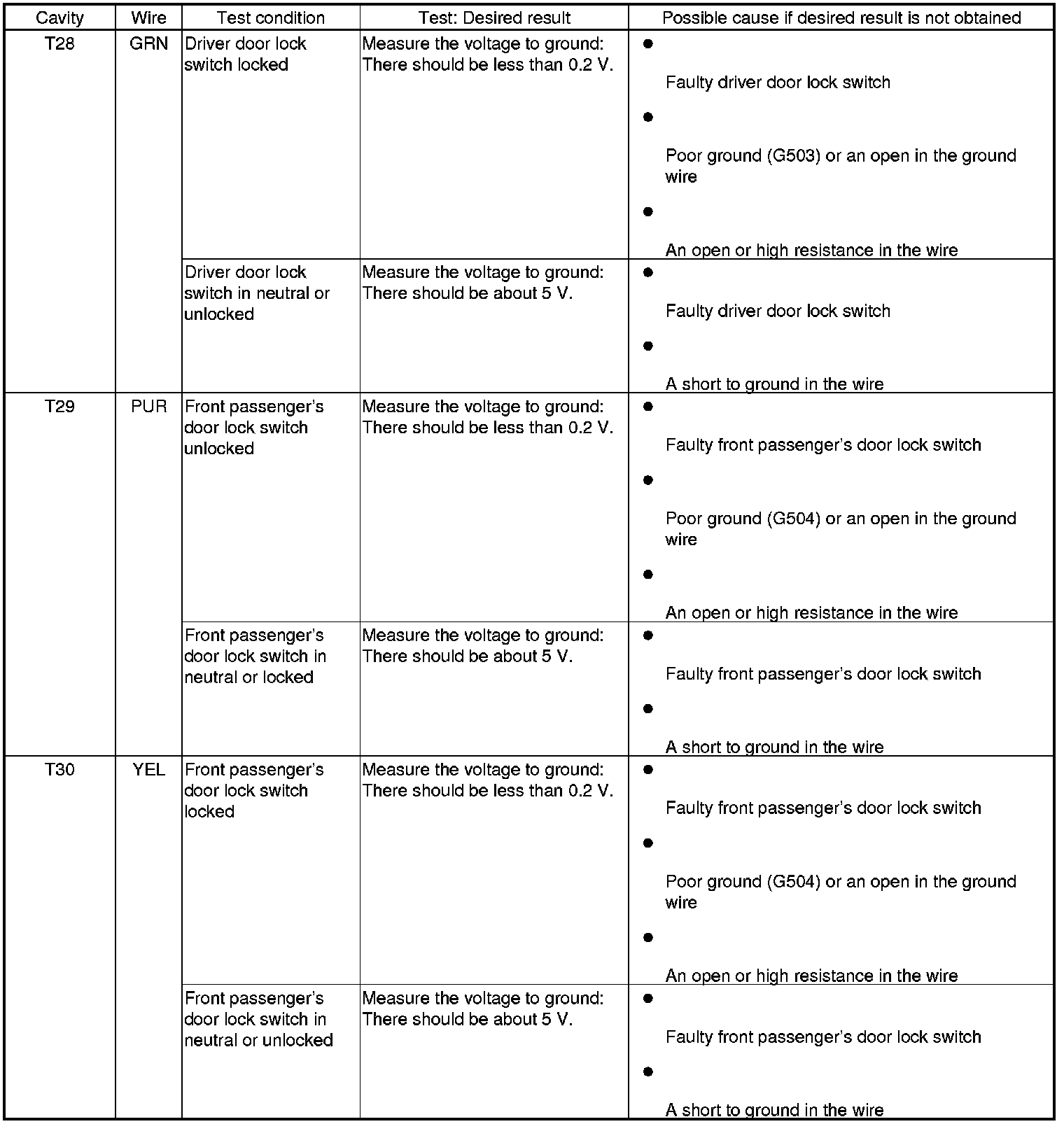

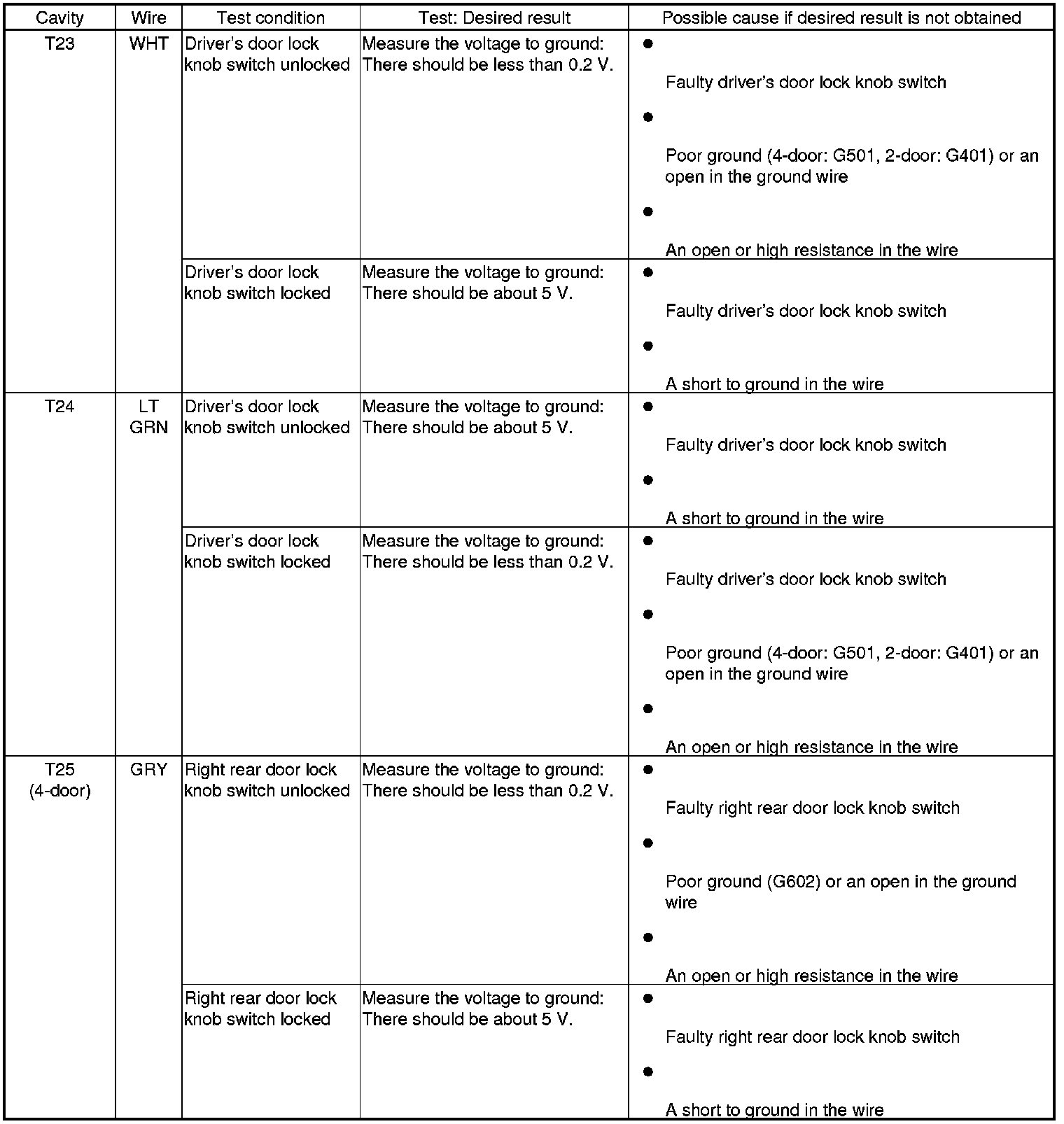

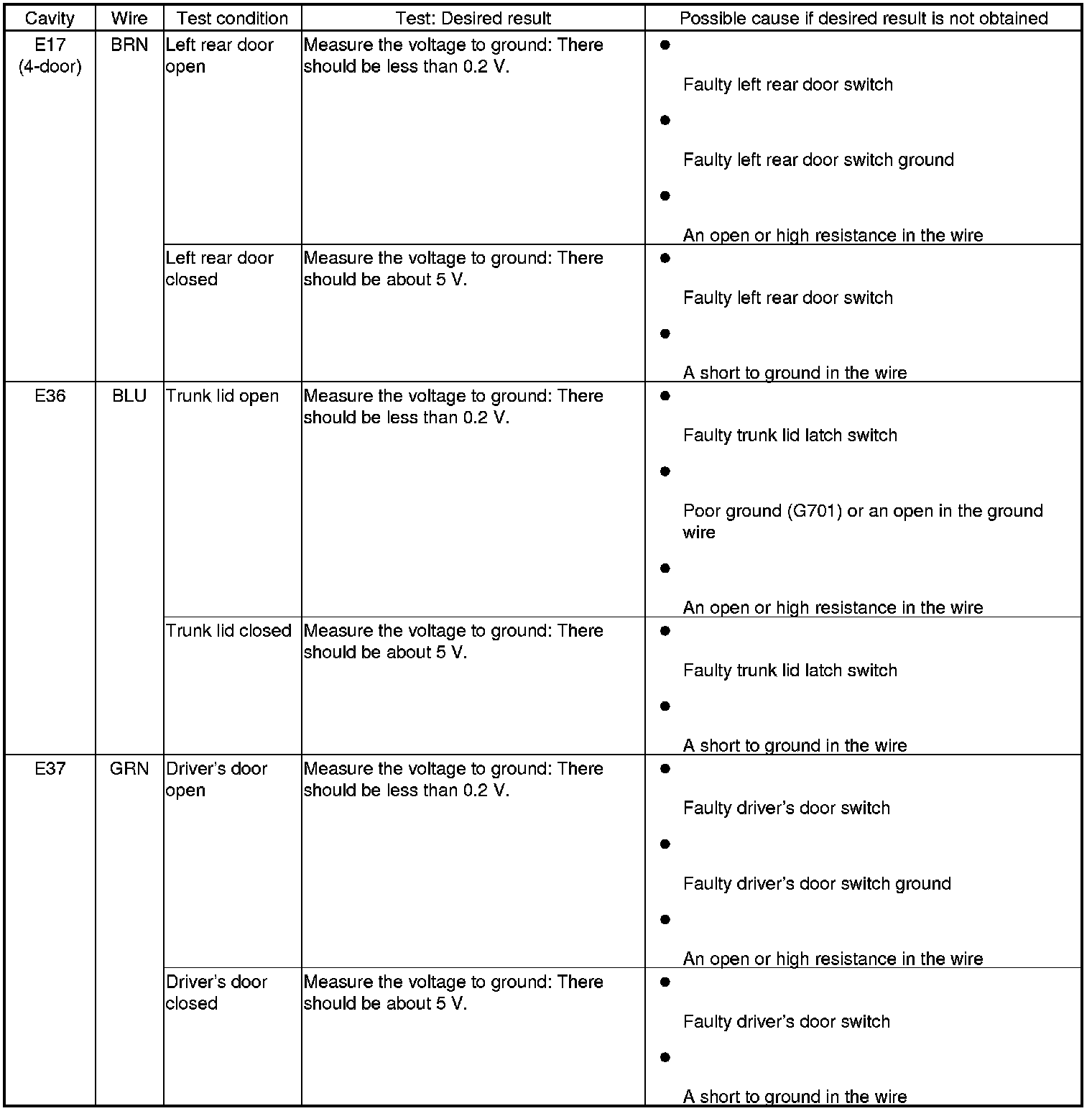

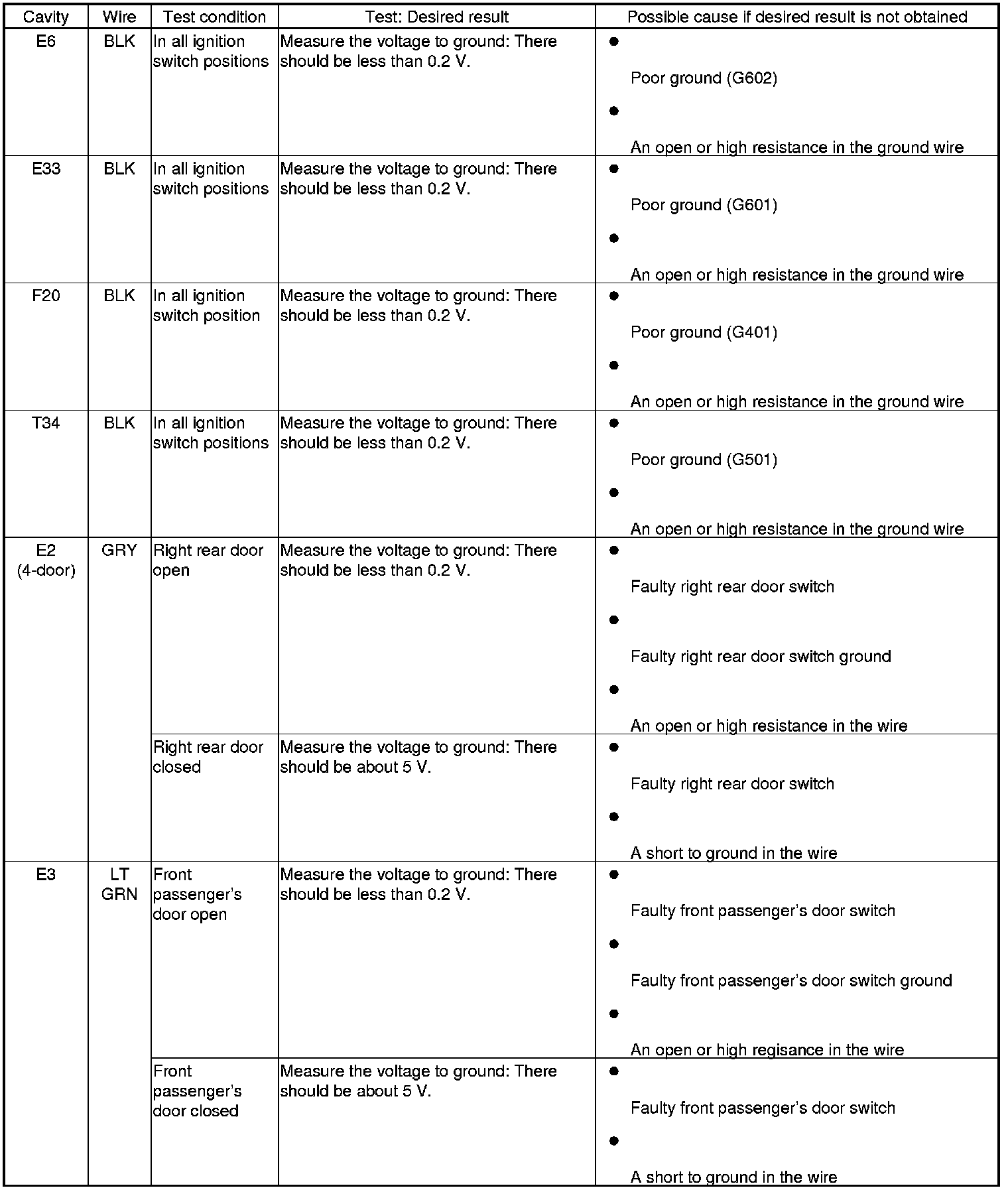

5. With the connector still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

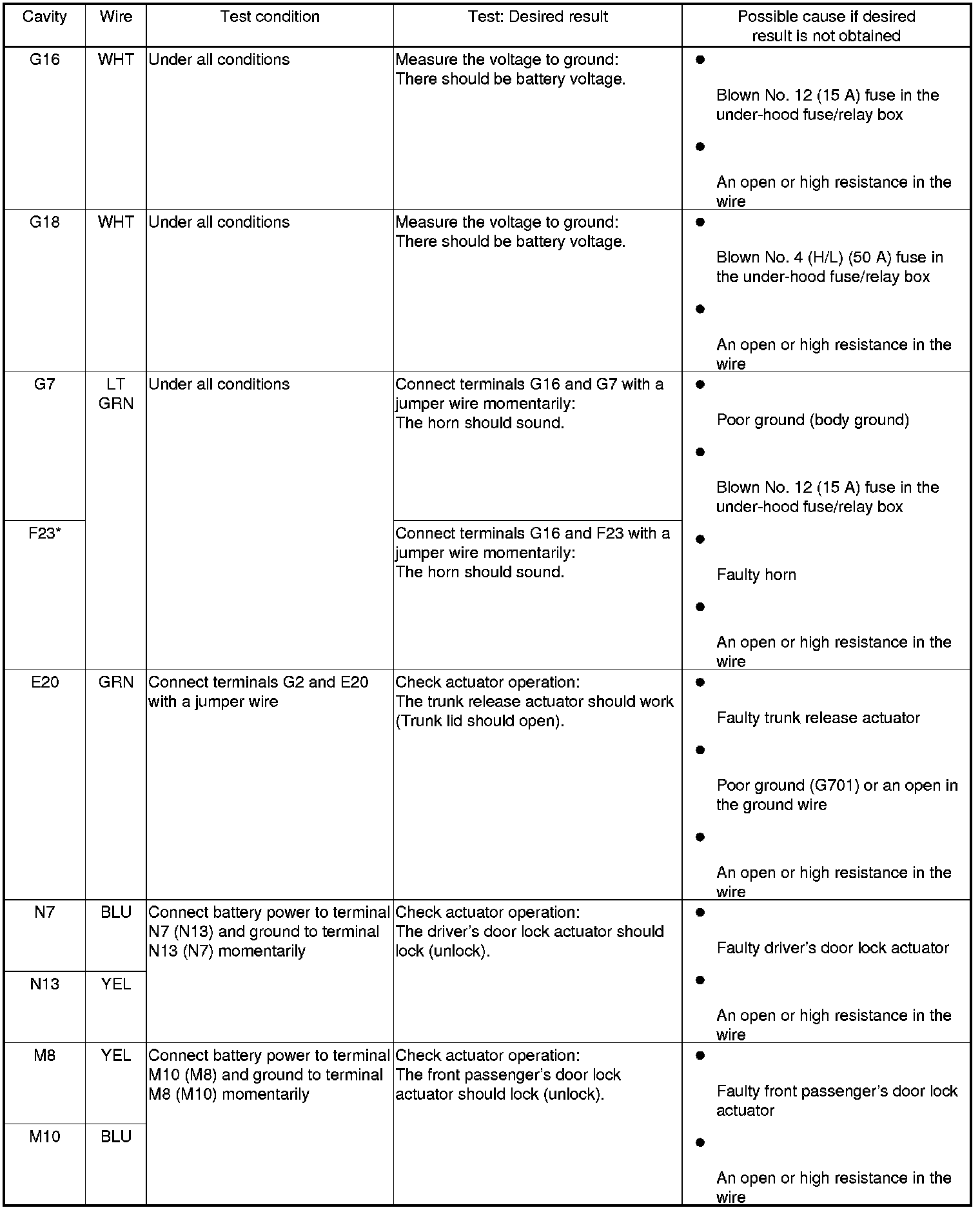

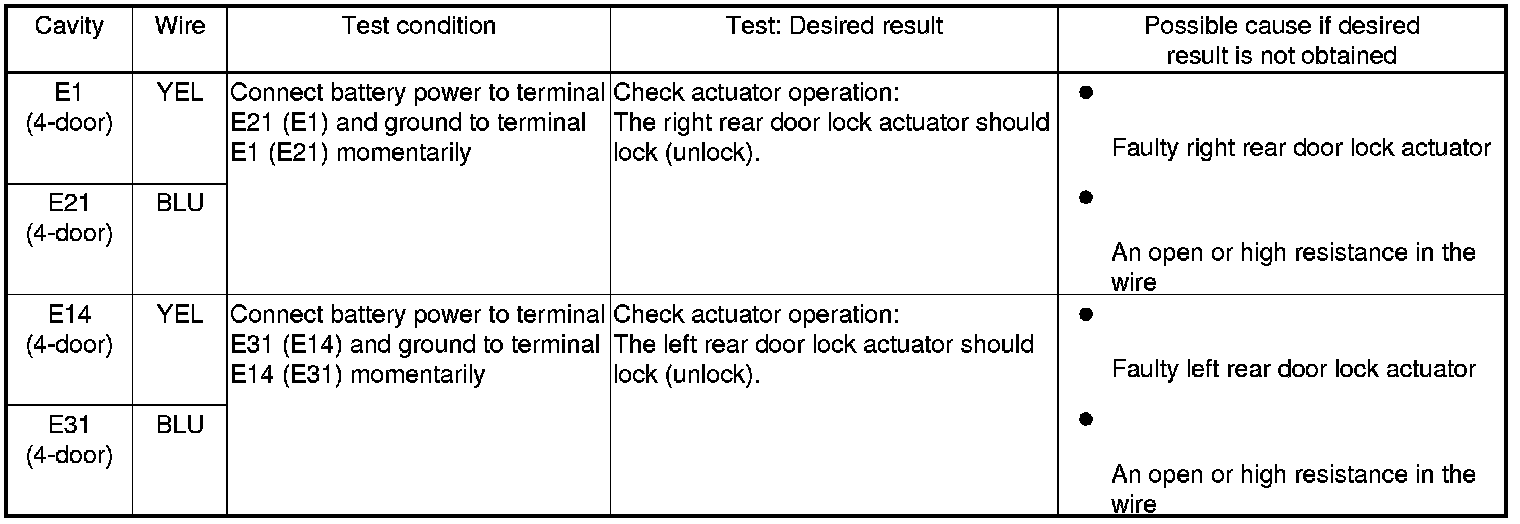

6. Reconnect the connectors to the under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal And Installation.
