Driver's Dashboard Lower Cover Removal/Installation

Driver's Dashboard Lower Cover Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Adjust the steering column to the full tilt up position.

2. Gently pull out the lower edge of the dashboard lower cover (A) to detach the lower clips.

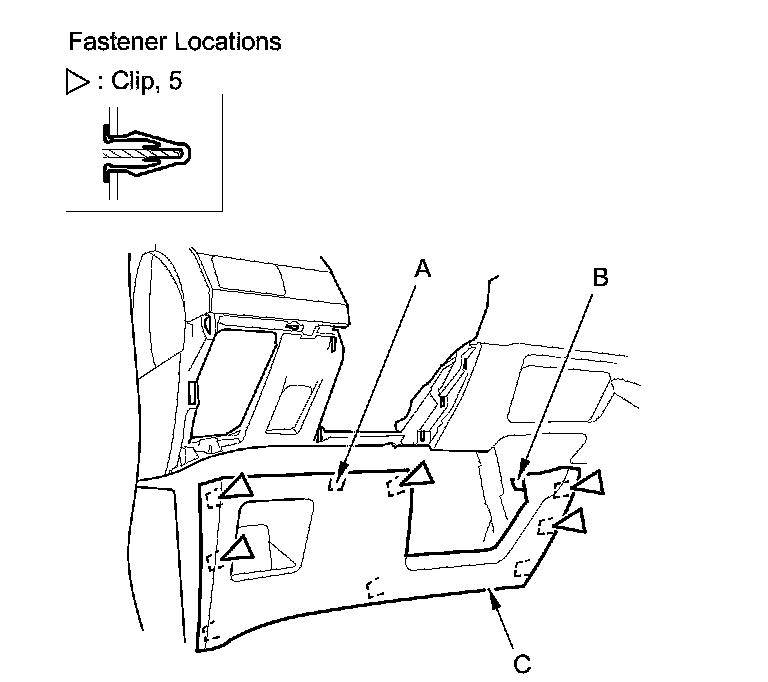

3. Detach the upper clips, and release the hook (A) and the tab (B) by pulling back the driver's dashboard lower cover (C).





4. Install the lower cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clip, the hook, and the tab into place securely.
