Dashboard Side Trim Removal/Installation (4-Door)

Dashboard Side Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

4-door

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

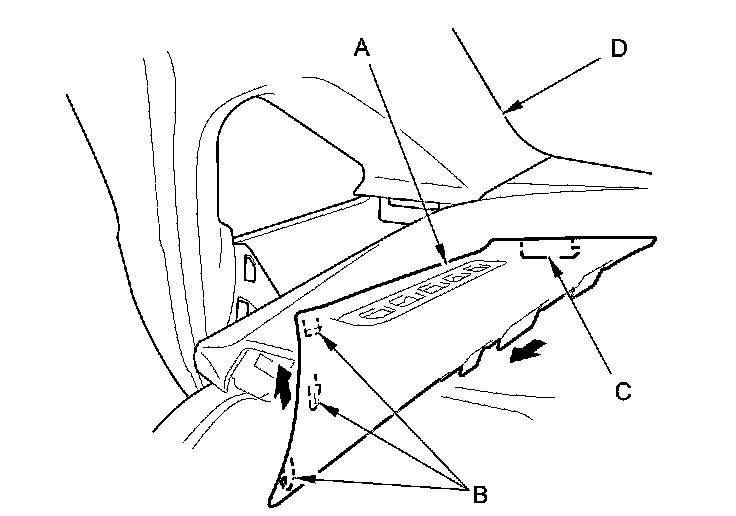

1. Remove the dashboard side trim (A).

1. Gently pull up the rear edge of the trim to release the rear hooks (B).

2. Pull the trim to release the front hook (C) from the A-pillar trim (D).





2. Install the trim in the reverse order of removal, and push the hooks into place securely.
