Overhaul

Center Console Disassembly/Reassembly

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the center console, the dashboard, or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center console Center Console Removal/Installation.

2. If equipped, remove the center console armrest Center Console Armrest Replacement.

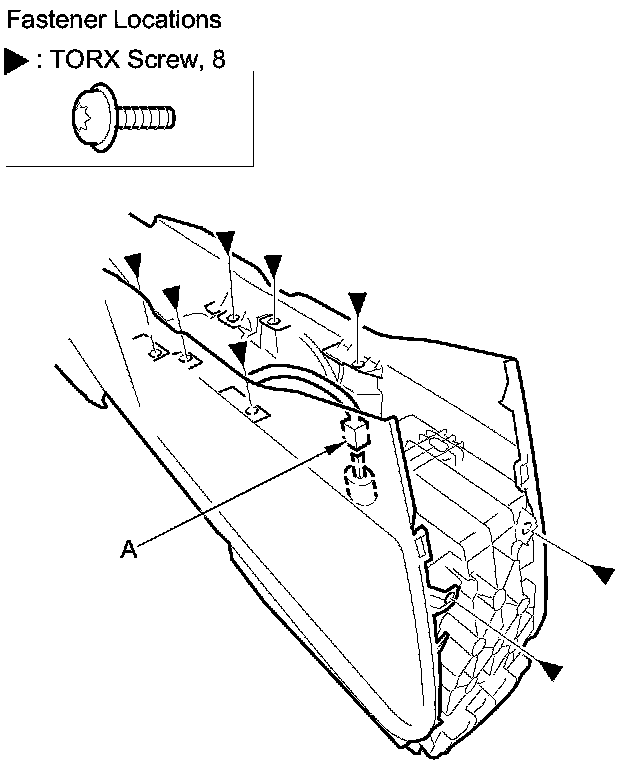

3. Remove the TORX screws with a TORX T20 bit, and disconnect the console accessory power socket connector (A).

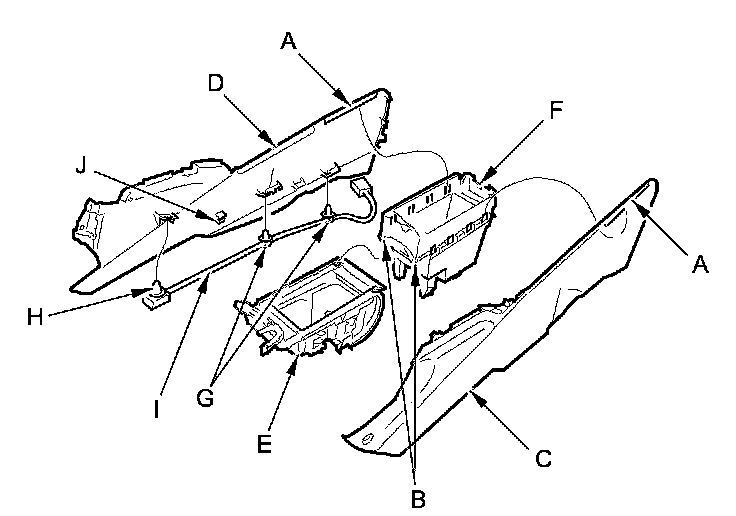

4. Release the hooks (A) and the pins (B), then separate the left console side panel (C), the right console side panel (D), the console beverage holder (E) and the console box (F). If equipped, detach the harness clips (G) and the connector clip (H), then remove the console subharness (I) from the hook (J).

NOTE: 4-door is shown; 2-door is similar.

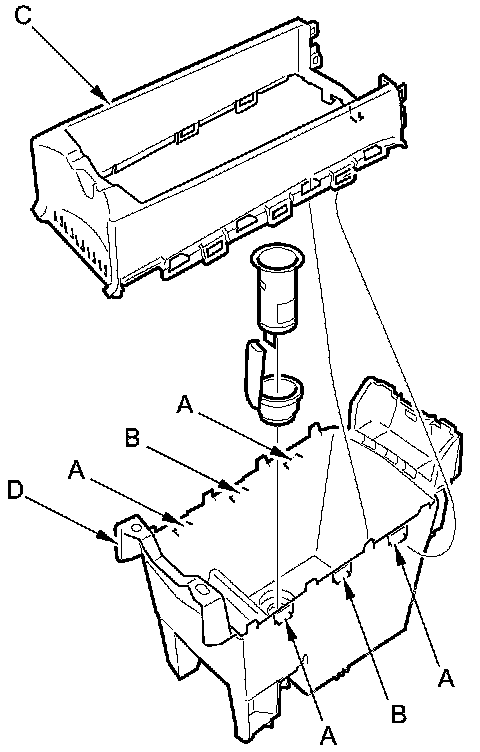

5. Release the hooks (A, B), then separate the console upper box (C) and the console lower box (D).





6. Reassemble the console in the reverse order of disassembly, and note these items:

- Push the hooks into place securely.
- Make sure the connector is plugged in properly.
