Front Grille Replacement (2-Door)

Front Grille Replacement

2-door - '09-11 Models

NOTE:

- Take care not to scratch the bumper or the grille.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the front bumper Front Bumper Removal/Installation.

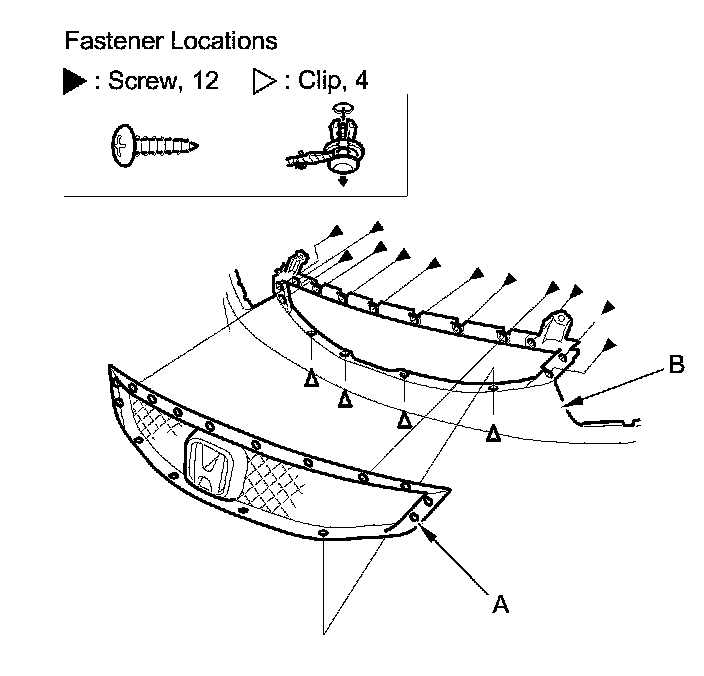

2. Remove the screws and detach the clips, then remove the front grille (A) from the front bumper (B).





3. Replace the emblem, if necessary Emblem/Sticker Replacement (2-Door).

4. Install the grille in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
