Rear Floor Upper Crossmember Gusset Replacement

Rear Floor Upper Crossmember Gusset Replacement

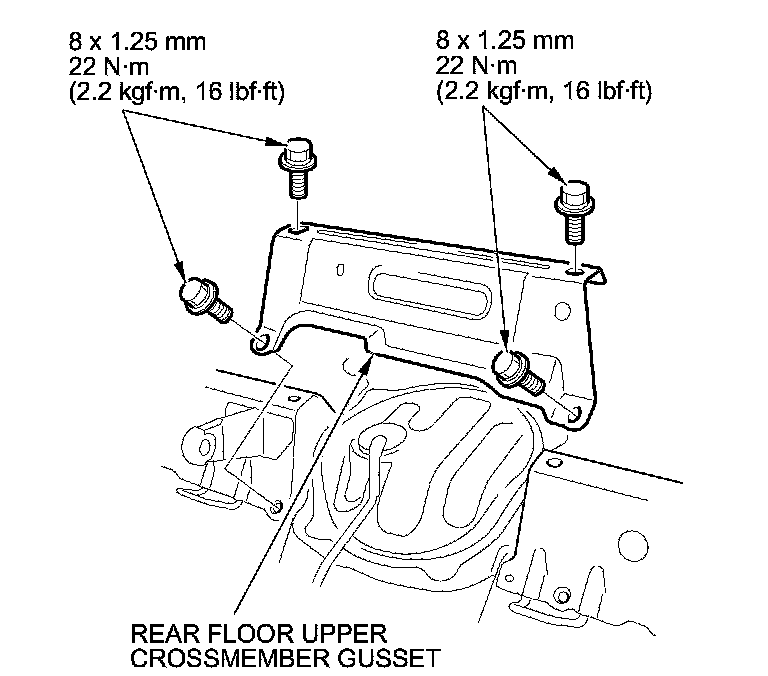

Rear Floor Upper Crossmember Gusset Torque

NOTE: Take care not to scratch the body.
