Front Fender Fairing Replacement

Front Fender Fairing Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.

1. Remove the front inner fender as needed:

- 2-door Front Inner Fender Replacement (2-Door)
- 4-door:
- '06-08 models
- '09-11 models

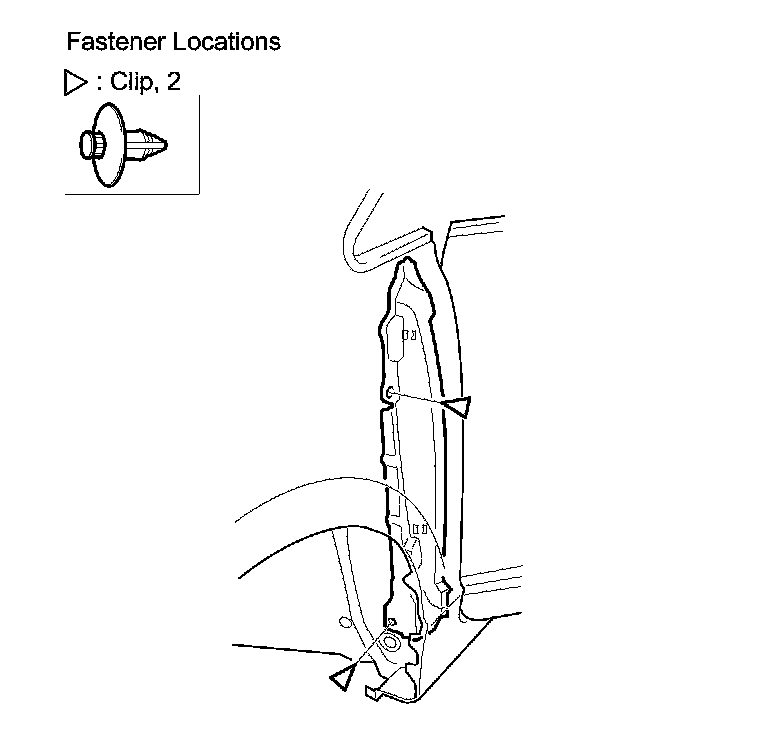

2. From the wheel arch, detach the clips.

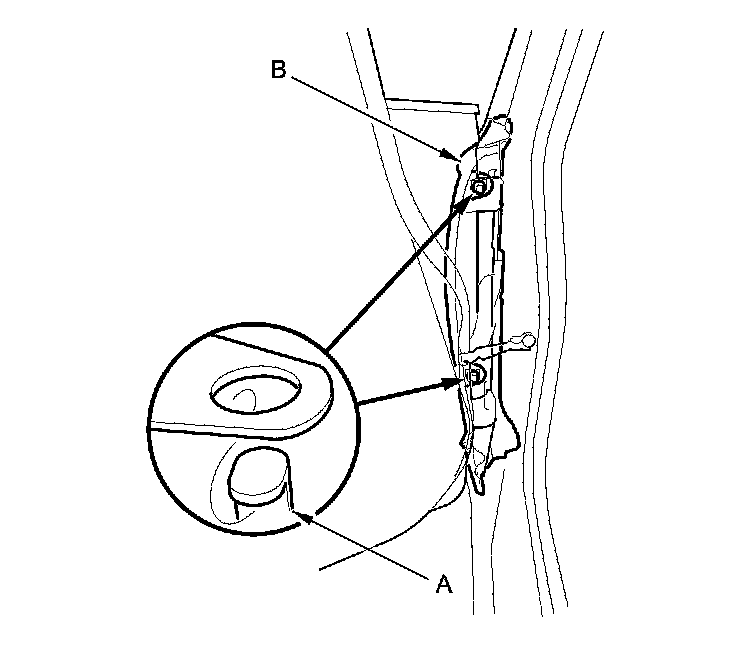

3. Open the front door. Release the hooks (A) securing the front fender fairing (B).






4. Remove the front fender fairing (A).





5. Install the fender fairing in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
