Emblem/Sticker Replacement (4-Door)

Emblem/Sticker Replacement

4-door

NOTE: When removing the emblems/stickers, take care not to scratch the body.

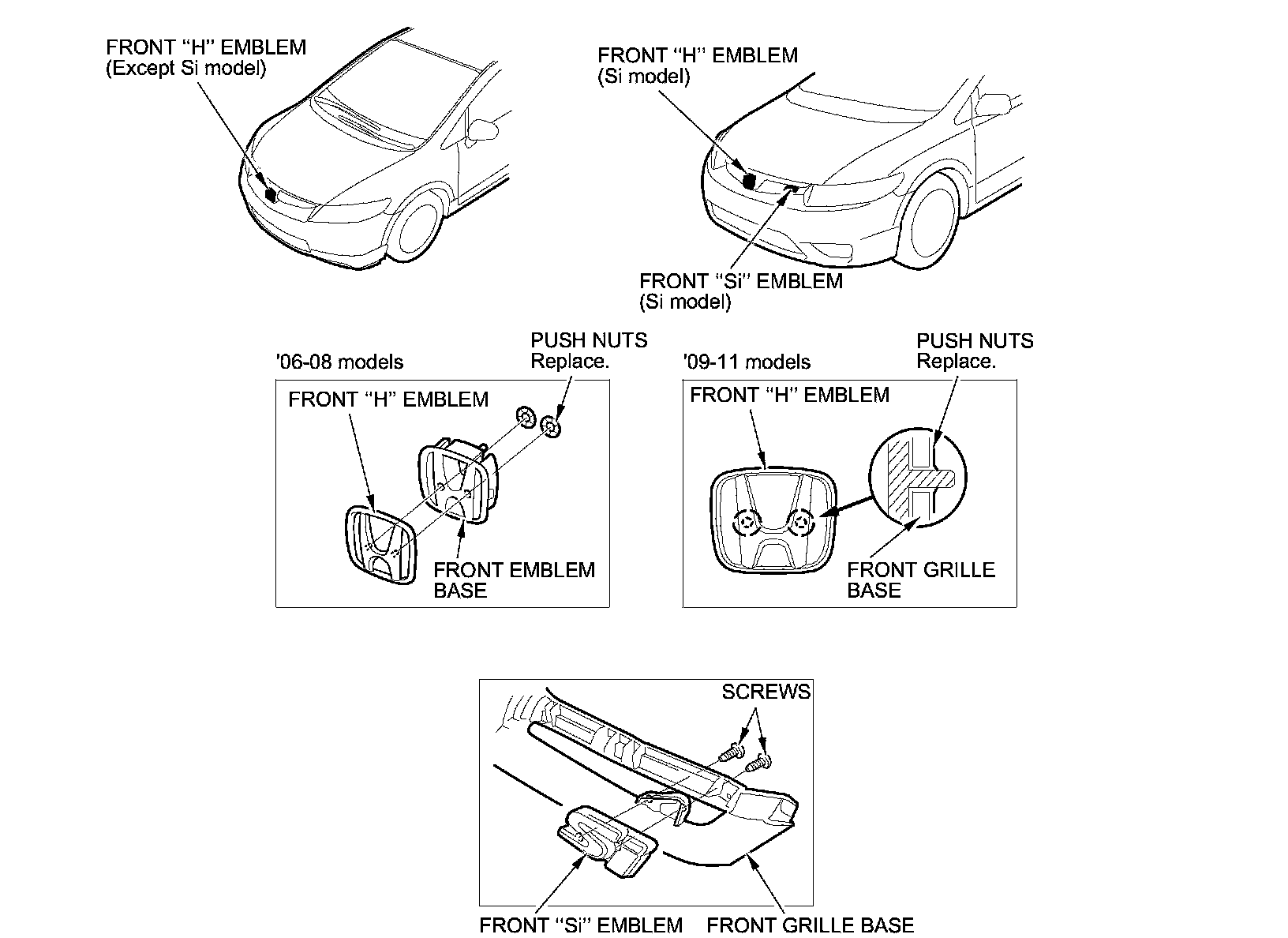

1. To remove the front "H" emblem or the front "Si" emblem, remove the front grille:

- '06-08 models (except Si model)
- '06-08 models (Si model)
- '09-11 models Front Grille Replacement (4-Door)

2. Clean the body surface with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

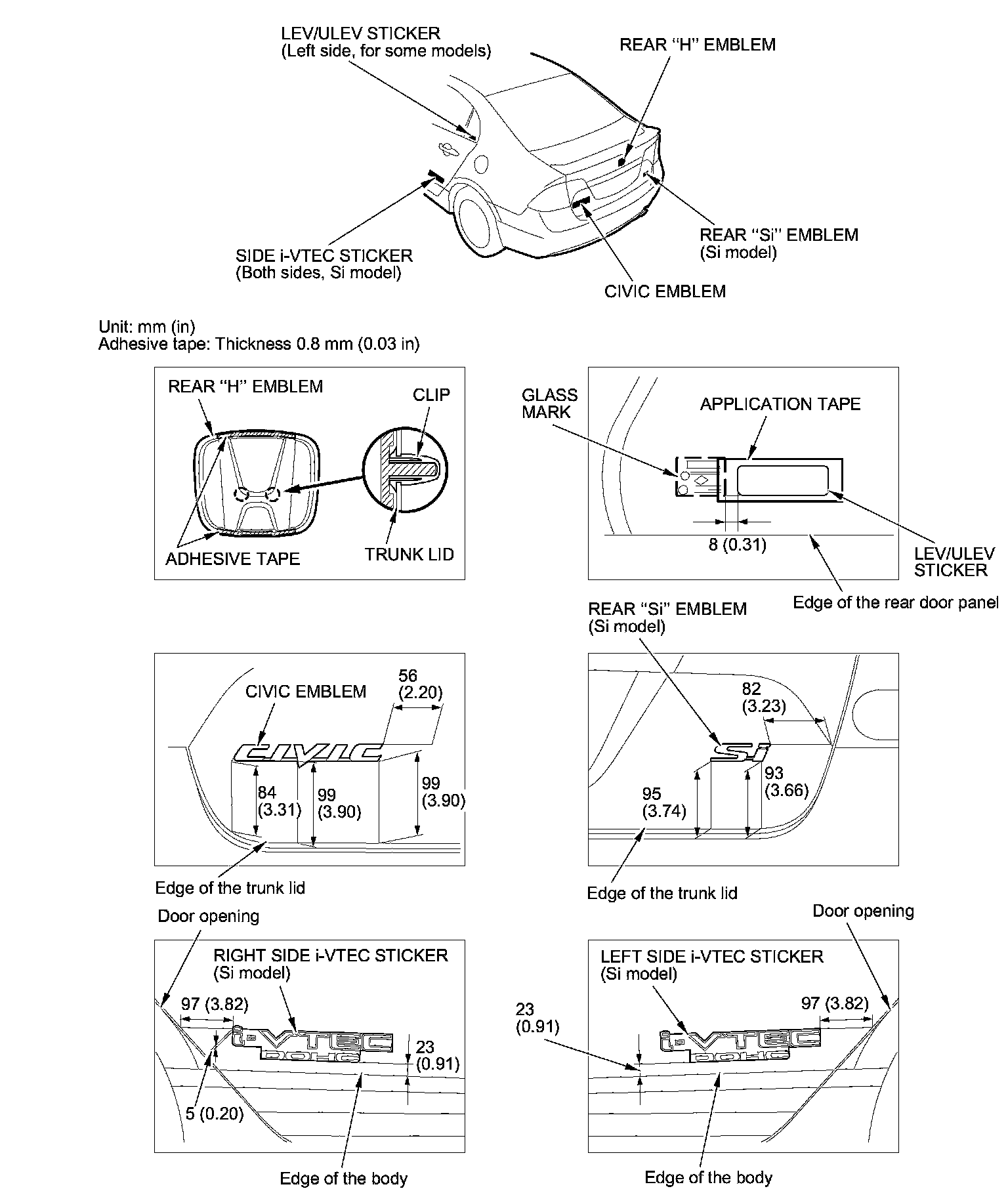

3. Apply the emblems/stickers where shown:

- For some models: When installing the LEV/ULEV sticker on the inside surface of the left quarter glass, align the sticker with the edge of the glass mark and black ceramic as shown, then press the sticker into place, and remove the application tape.
- When installing the side i-VTEC sticker on the body, align notches in the application tape with the edge of the body and door opening, then press the sticker into place, and remove the application tape.

4. After installing the front "H" emblem or the front "Si" emblem, reinstall the front grille:

- '06-08 models (except Si model)
- '06-08 models (Si model)
- '09-11 models Front Grille Replacement (4-Door)
