Home >> Honda >> 2011 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Rear Door >> Locations

Rear Door: Locations

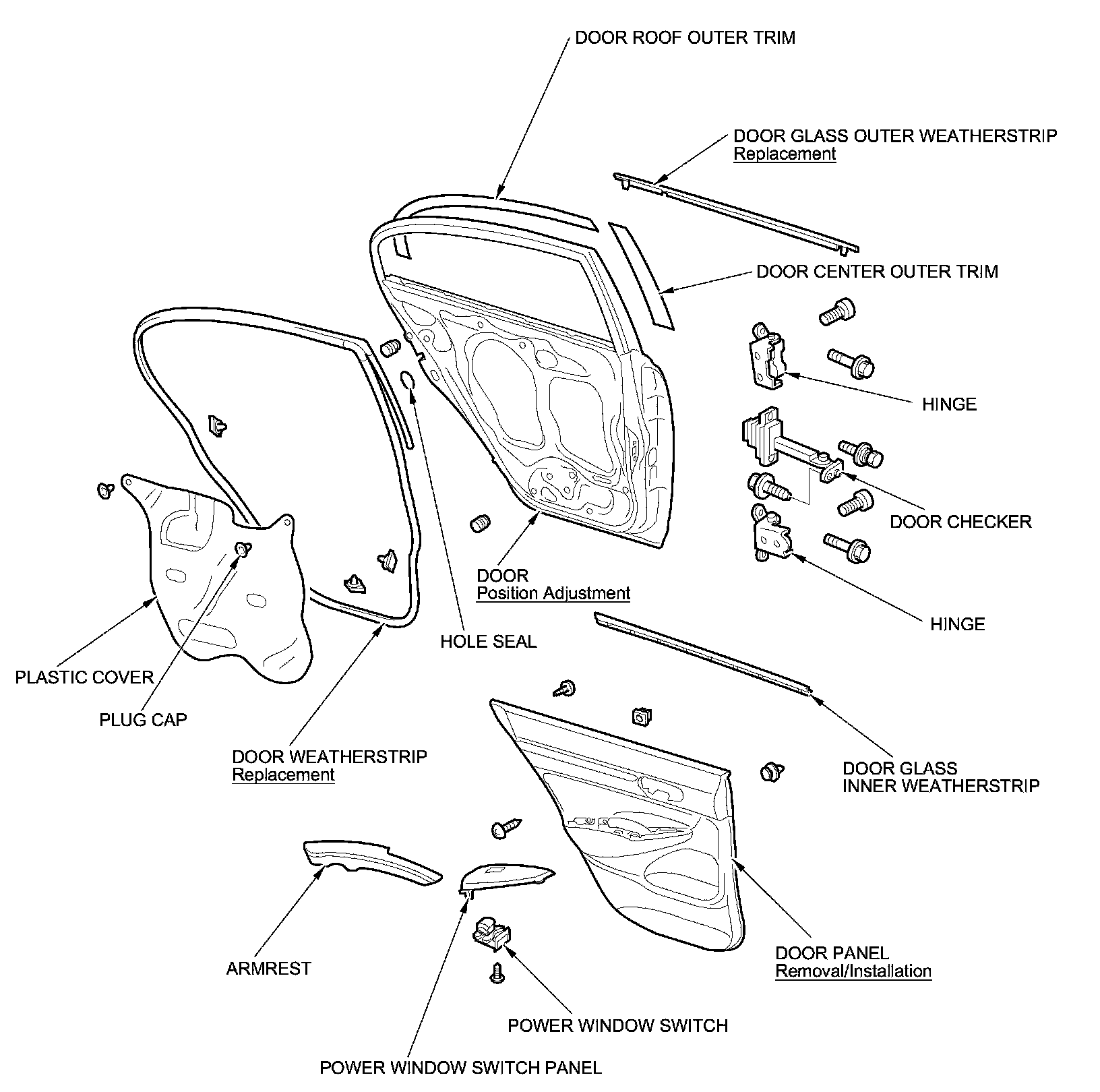

Rear Door Component Location Index

4-door





4-door (cont'd)
