Symptom Troubleshooting
Audio System Symptom Troubleshooting - USB device does not function
USB device does not function (with navigation)
NOTE:
- Check the vehicle battery condition first Testing and Inspection.
- Check the connectors for poor connections or loose terminals.
- Check the USB device requirement:
- Mass-storage class ready digital audio player with USB 2.0 port
- More than 256 MB of RAM
- Support MP3, WMA, and AAC (encoded with the iTunes) files, DRM files are not supported
- Not all players and player functions work with the USB adapter. Please see the Owner's Manual for more information. Always test the customers USB device in a known-good vehicle of the same year and trim (if possible). Technologies change and are updated frequently which may result that USB devices may work in newer vehicles, but not in order vehicles of the same model.
- If UNSUPPORTED appears on the display, the vehicle is OK, there is a software problem with the USB device.
1. Turn the ignition switch to ON (II).
2. Press the AUDIO button to select USB mode.
NOTE: Do not connect the USB device.
Is USB NO DATA displayed in the navigation display?
YES -
Go to step 3.
NO -
Go to step 14.
3. Turn the ignition switch to LOCK (0).
4. Connect the customer's USB device to a known-good vehicle (same year/trim) that is equipped with a USB adapter, and check the USB device operation.
Is the USB device working properly in the known-good vehicle?
YES -
Go to step 5.
NO -
If the audio-navigation unit displays UNSUPPORTED or MEDIA ERROR, the USB device may not be unsupported or is defective. If the audio screen displays USB NO MUSIC, the USB device may have no music files or wrong type music files are on the device. See the Owner's Manual for details on USB device requirements and approved file types.�
5. On the customer's vehicle, connect the customer's USB device to the USB port.
6. Turn the ignition switch to ON (II).
7. Check the USB device operation in the customer's vehicle.
Does the USB device work properly in the customer's vehicle?
YES -
The system is OK at this time. Inspect the connectors of the USB device, USB port and USB adapter for wear.�
NO -
Go to step 8.
8. Turn the ignition switch to LOCK (0).
9. On the customer's vehicle, connect the customer's USB device to the USB port.
10. Disconnect USB adapter control unit connector B (5P).

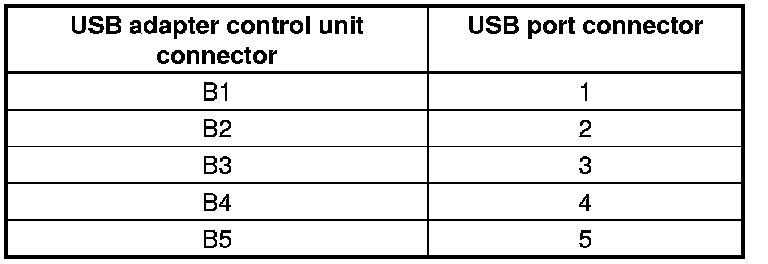

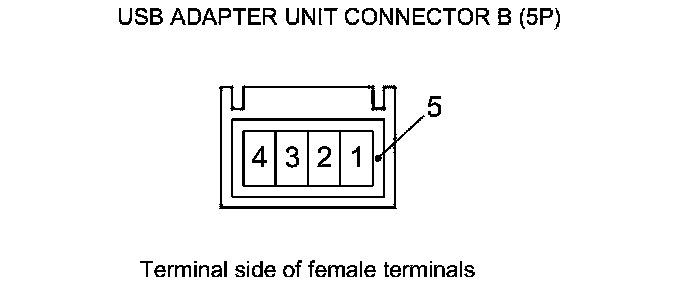

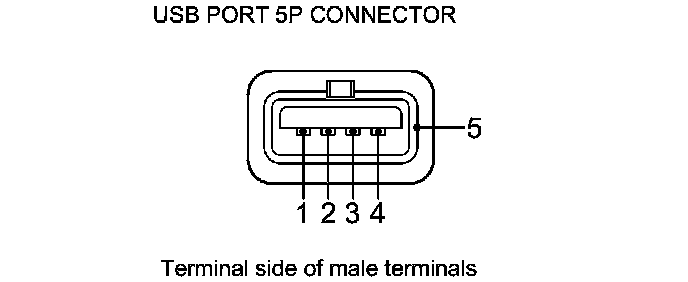

11. Check for continuity between the USB adapter connector B (5P) and the USB port 5P connector according to the table.
Is there continuity?
YES -
Go to step 15.
NO -
Go to step 12.
12. Disconnect the USB adapter 5P connector.

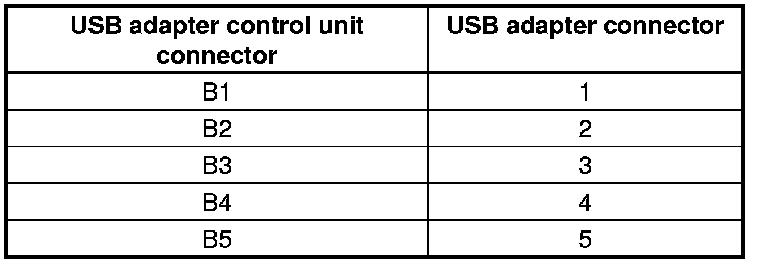

13. Check for continuity between the USB adapter control unit connector B (5P) and the USB adapter 5P connector according to the table.
Is there continuity?
YES -
Replace the USB adapter USB Adapter Holder Replacement, then recheck.�
NO -
Replace the USB harness, then recheck.�
14. Turn the ignition switch to LOCK (0).
15. Measure the voltage between body ground and USB adapter control unit connector A (14P) terminal No. 1.
Is there battery voltage?
YES -
Go to step 17.
NO -
Go to step 16.

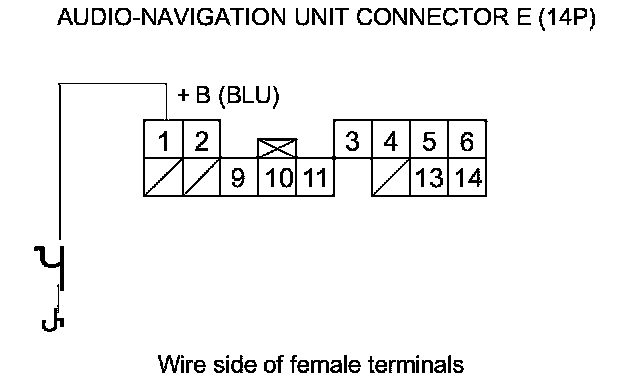

16. Measure the voltage between body ground and audio-navigation unit connector E (14P) terminal No. 1.
Is there battery voltage?
YES -
Repair an open or high resistance in the wire between the audio-navigation unit and the USB adapter control unit.�
NO -
Replace the audio-navigation unit Audio-Navigation Unit Removal/Installation (With Navigation).�
17. Turn the ignition switch to ON (II).

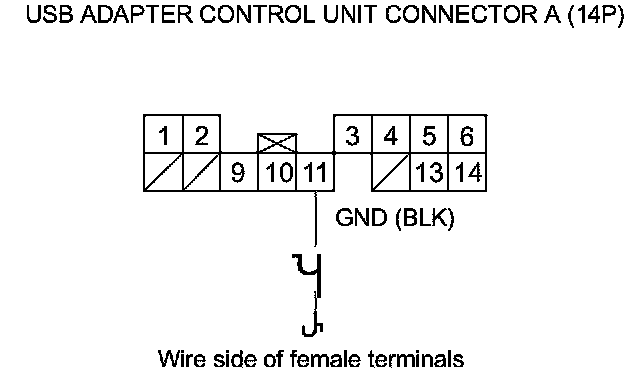

18. Measure the voltage between body ground and USB adapter control unit connector A (14P) terminal No. 11.
Is there less than 0.2 V?
YES -
Go to step 19.
NO -
Repair an open or high resistance in the wire between the audio-navigation unit and the USB adapter control unit.�
19. Turn the ignition switch to LOCK (0).
20. Disconnect these items:
- Audio-navigation unit connector E (14P)
- USB adapter control unit connector A (14P)
- XM receiver connector A (14P)

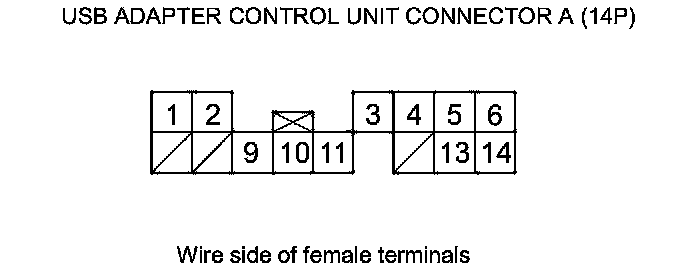

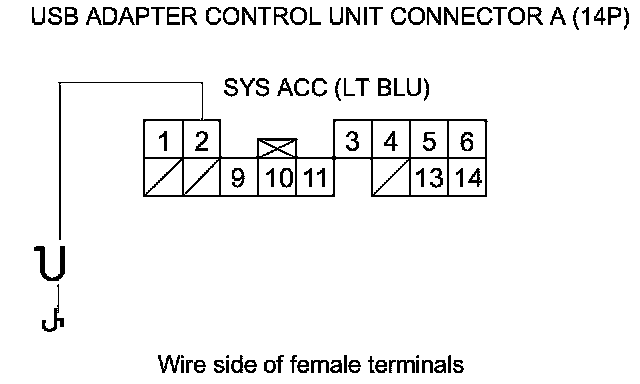

21. Check for continuity between body ground and USB adapter control unit connector A (14P) terminal No. 2.
Is there continuity?
YES -
Repair a shot to body ground in the wire between USB adapter control unit connector A (14P) terminal No. 2 and audio-navigation unit connector E (14P) terminal No. 2.�
NO -
Go to step 22.

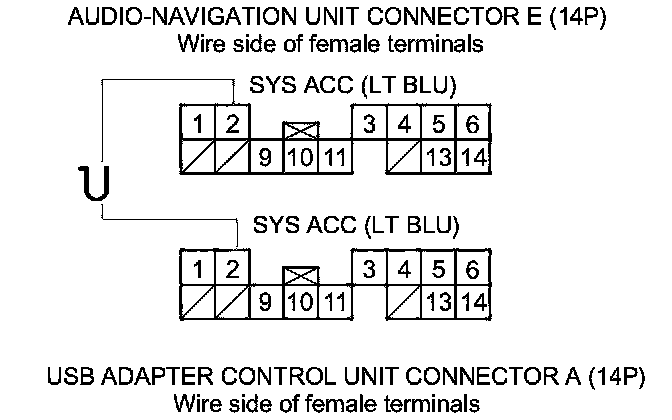

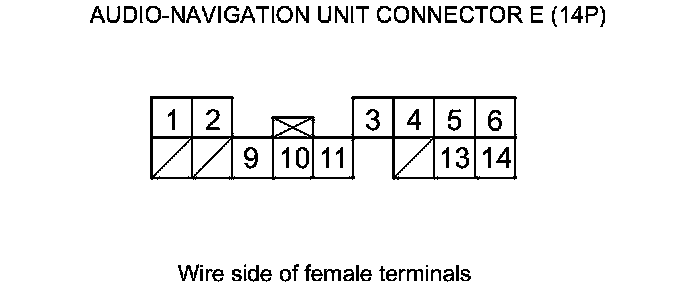

22. Check for continuity between audio-navigation unit connector E (14P) terminal No. 2 and USB adapter control unit connector A (14P) terminal No. 2.
Is there continuity?
YES -
Go to step 23.
NO -
Repair an open in the wire between the audio-navigation unit and the USB adapter control unit.�

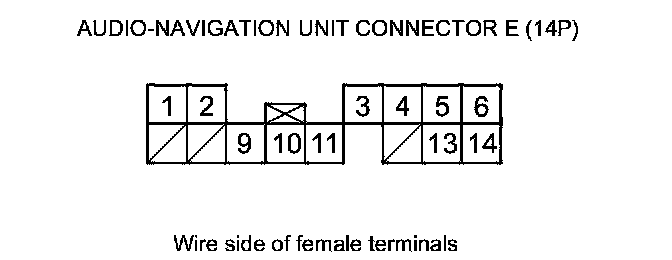

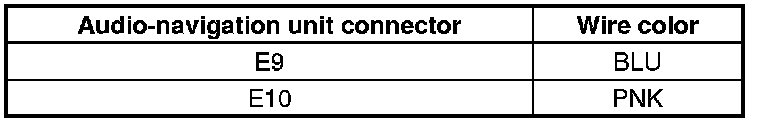

23. Check for continuity between body ground and audio-navigation unit connector E (14P) according to the table.
Is there continuity?
YES -
There is a short to body ground in the wire(s) between the audio-navigation unit and the USB adapter control unit. Replace the affected shielded harness.�
NO -
Go to step 24.

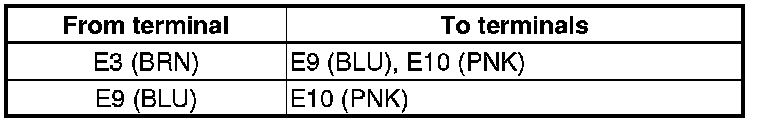

24. Check for continuity between the terminals of audio-navigation unit connector E (14P) according to the table.
Is there continuity between any of the terminals?
YES -
There is a short in the wires between the audio-navigation unit and the USB adapter control unit. Replace the affected shielded harness.�
NO -
Go to step 25.

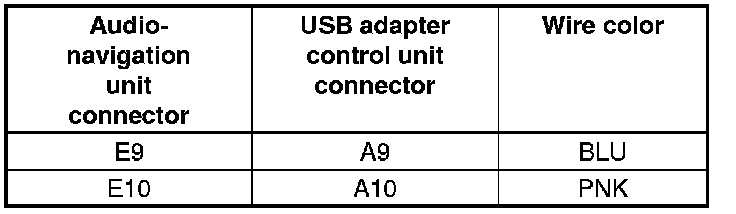

25. Check for continuity between audio-navigation unit connector E (14P) and USB adapter control unit connector A (14P) according to the table.
Is there continuity?
YES -
Substitute a known-good USB adapter control unit USB Adapter Control Unit Replacement, then reconnect all of the connectors and recheck. If the symptom/indication goes away, replace the original USB adapter control unit USB Adapter Control Unit Replacement. If the symptom/indication is still present, replace the audio-navigation unit Audio-Navigation Unit Removal/Installation (With Navigation).�
NO -
There is an open in the wire(s) between the audio-navigation unit and the USB adapter control unit. Replace the affected shielded harness.�
