HFL Switch Test

1. Remove the voice control switch Service and Repair.

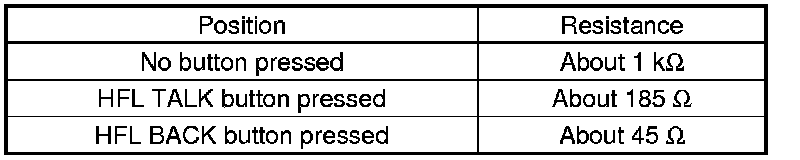

2. Measure resistance between terminals No. 3 and No. 4 in each switch position according to the table.

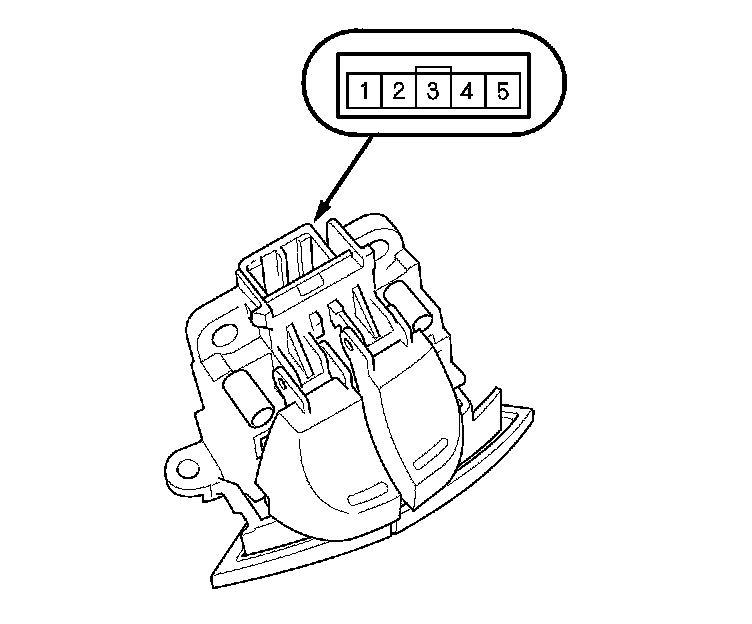

HFL Switch





3. If the resistance is not as specified, replace the voice control switch Service and Repair.
