Trunk Lid Release Actuator Test

Trunk Lid Release Actuator Test

1. Open the trunk lid.

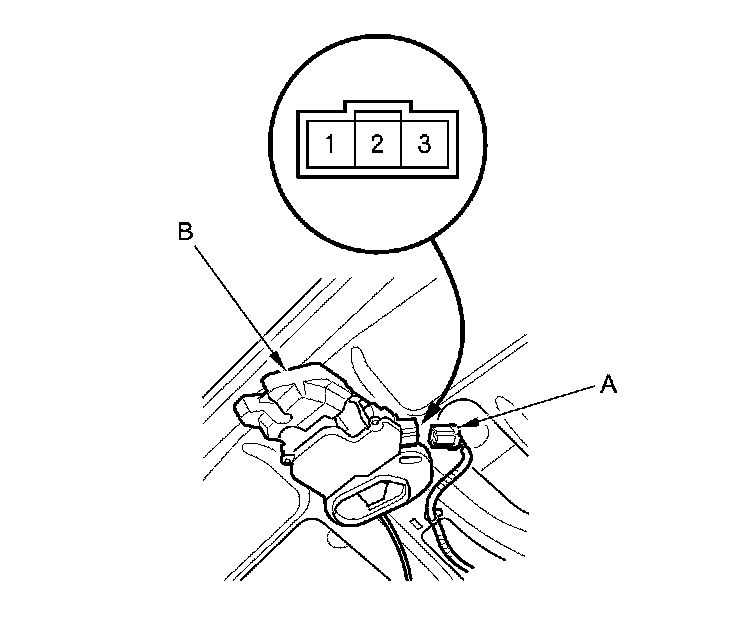

2. Disconnect the 3P connector (A) from the trunk lid latch switch/trunk release actuator (B).





3. Check actuator operation by connecting power to terminal No. 1 and ground to terminal No. 2 momentarily. The actuator should work.

4. If the actuator does not work, replace the trunk lid latch switch/release actuator assembly Service and Repair.
